LMKS45B

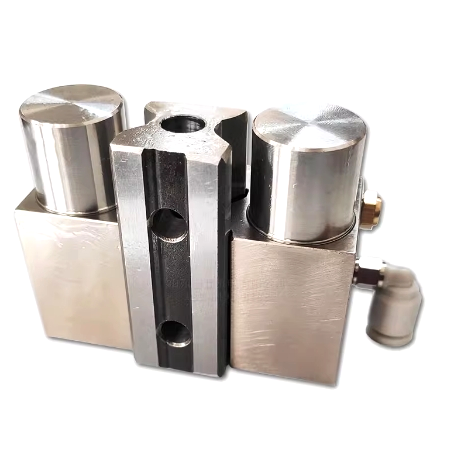

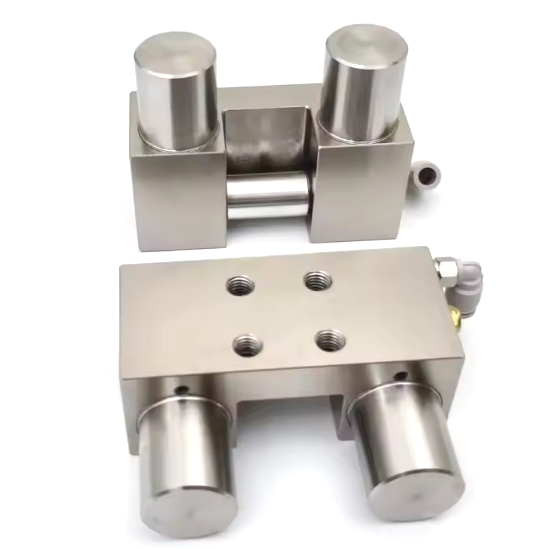

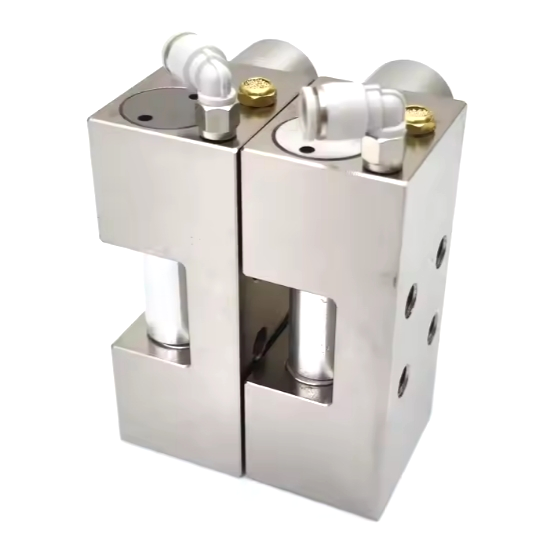

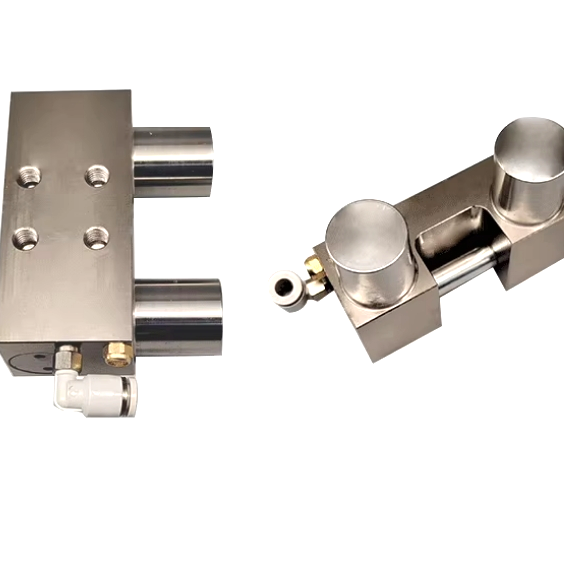

Pneumatic Clamp Braking for HGH45CA HGW45CA HIWIN Linear Guide

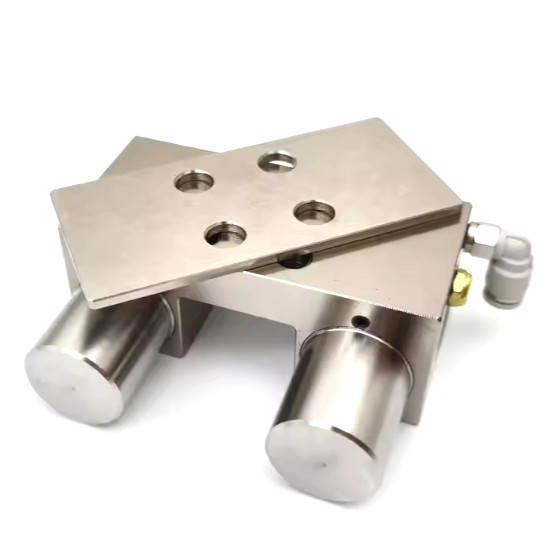

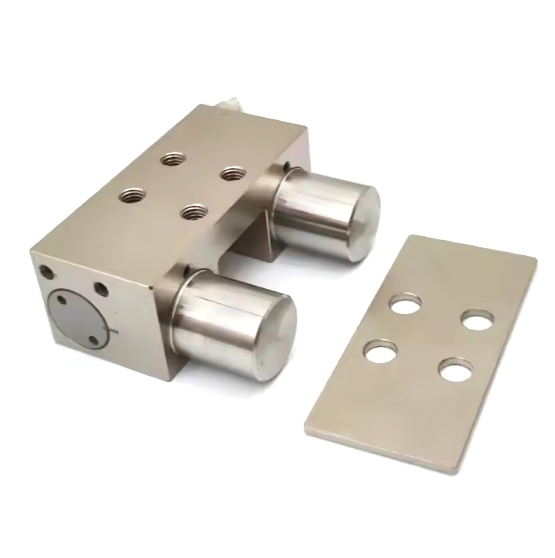

This is a normally-closed pneumatic brake designed for 45mm linear guide applications, specifically compatible with HIWIN's HGH45CA and HGW45CA carriages and their matching guideways. Clamping and braking elements can optionally be supplied with a spacer plate made in Steel,used to align the height of the element with the height of the sliding guides.
| Clamp Types | Pneumatic |
| Applicable guideway sizes | 45mm |
| Rated holding force(N) | 1450/3300N(Standard) |
| Open air pressure | 0.55/0.4/0.3Mpa |
| Clamping service life | 5 million times |
| Material | Bearing steel with nickel-plated surface coating |
Spacer plate | Available(a spacer plate might have to be ordered as height compensation, depending on the height of the rail carriage) |
| Operating temperature | 0 °~70 °C |
| Applicable guideway brand | HIWIN/THK/PMI/WON/NSK/NB/ABBA and so on |
| 2D and 3D drawing | Available |
Why Choose Our Pneumatic Clamp Braking?
Fast Delivery: Lead time within 3days.
Competitive Pricing:35% cost savings without compromising quality.
Trusted Performance:100% inspection before shipment.
Interchangeable:It completely replaces the zimmer brand's MKS series linear rail clamp.
Custom Solutions:Modify clamping force,air intake orientation,or dimensions to match unique rail setups or operational needs.
Download Pneumatic Normally Closed Rail Clamp Size Chart.png
Contact our sales to get a quote!
