Pneumatic linear guide clamping elements are critical motion control components designed to lock moving slides,maintain precise positioning and suppress vibration for profiled linear guide systems.Two primary configurations dominate industrial applications:Normally Open (NO) and Normally Closed (NC).Incorrect part selection can degrade machine performance and may lead to severe safety risks.This paper analyzes the structural differences,operational principles and applicable operating conditions to assist engineers with component selection.

1.Structural Differences

Both NO and NC clamping elements adopt proven wedge‑block force‑amplification mechanism.Core assemblies contain main body,piston,wedge block,adjusting bolt and contact element.The key structural variance lies in built‑in spring components.

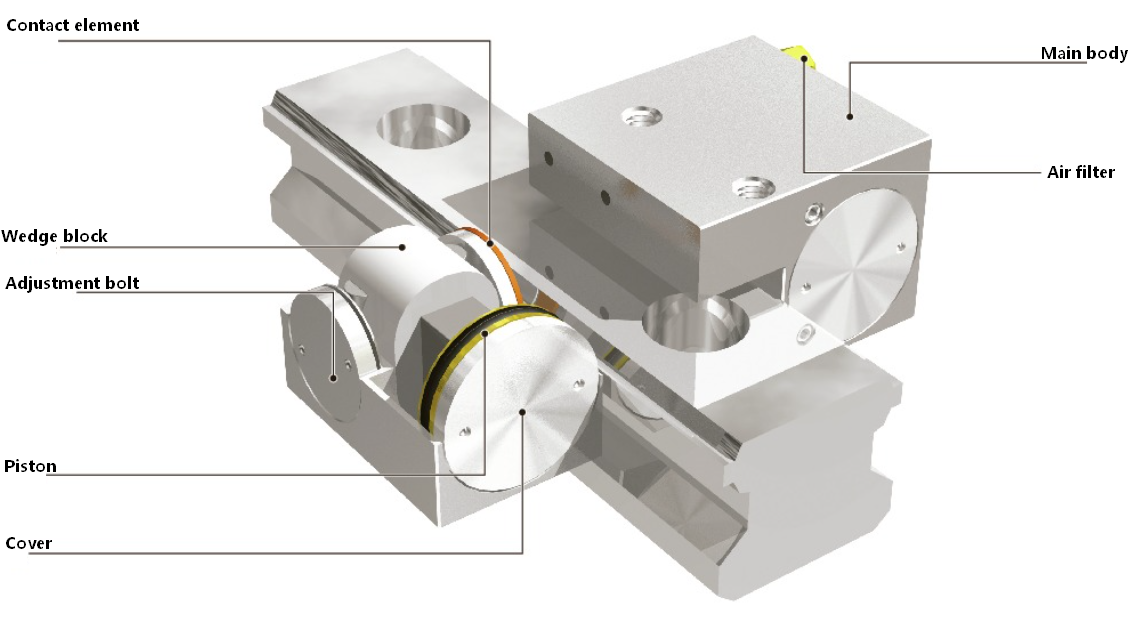

Normally Open Pneumatic Clamp Brake
Without internal return spring.Clamping force is fully generated by compressed air driving the piston and wedge‑block assembly.Once air pressure exhausts,mechanical parts reset passively and release the linear guide rail directly.

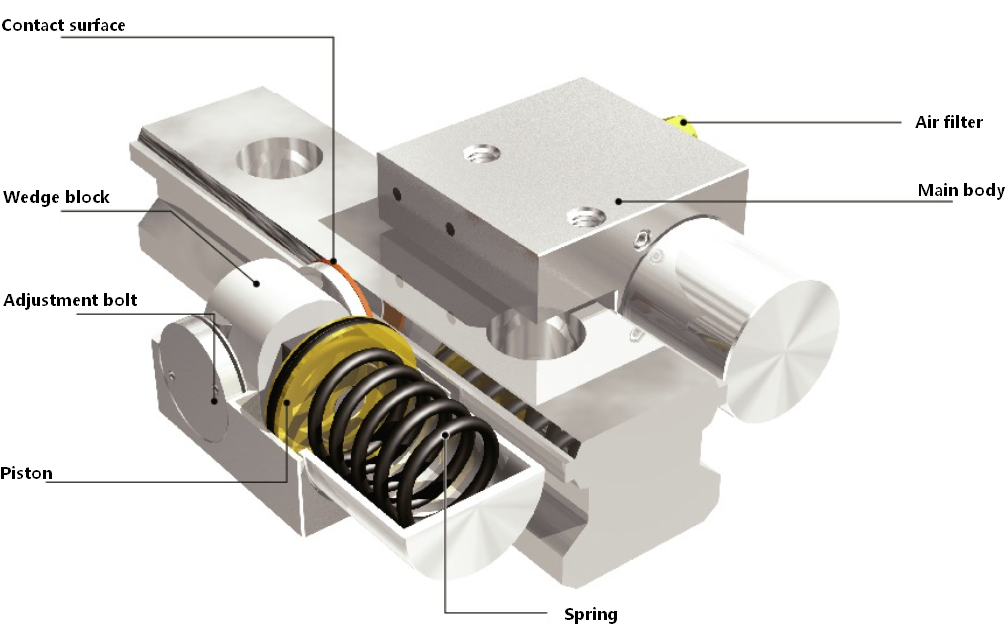

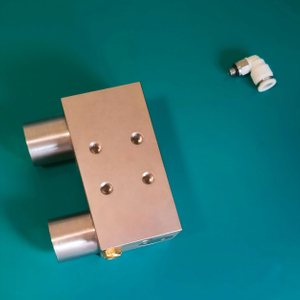

Normally Closed Pneumatic Clamp Brake
Equipped with heavy‑duty pre‑loaded compression spring inside the piston chamber.Spring acts as the fail‑safe power source.Compressed air has to overcome spring preload to push piston and wedge block away from contact surface for releasing status.When air supply fails,spring drives wedge block to press contact element firmly against guide rail side surface to achieve automatic locking.

2.Working Principle Comparison

Normally Open (NO)

✅ Supply compressed air → Piston pushes wedge block → Clamp brakes the linear guide rail
✅ Exhaust / loss of air pressure → No spring preload,mechanism resets → Release rail,slide moves freely

Normally Closed (NC,Spring‑actuated Fail‑Safe Type)

✅ Supply compressed air → Air pressure counteracts spring force → Release linear guide for axis travel
✅ Exhaust / loss of air pressure → Spring expands automatically → Drives wedge block for firm clamping on rail

3.Application Scenarios & Selection Guidance

The core of clamp selection is matching machine safety requirements and axis load conditions.

Normally Closed Pneumatic Clamp Brake (Spring Fail‑Safe)

Best‑fit use‑cases:
-Vertical Z‑axis lifting mechanisms,anti‑fall protection for gravity‑loaded axes
-Safety‑critical systems requiring slide position retention under air failure or power loss
-Machine‑tool emergency stop and holding‑brake applications

Normally Open Pneumatic Clamp Brake

Best‑fit use‑cases:
-Horizontal‑axis slides,temporary locking only during positioning or machining cycles, no fail‑safe holding requirement
- Heavy‑cutting processes: boost system rigidity and damp machining‑induced vibration
-High‑frequency clamping cycles; situations where unintended auto‑locking upon pressure loss would damage workflow or tooling

4.Key Takeaways for Engineers

Safety first: If your machine involves vertical loads or personnel‑exposed moving masses,prioritize normally closed clamping element for inherent fail‑safe performance.

For horizontal‑axis vibration suppression and periodic locking tasks,normally open clamps offer cost‑effective,high‑cycle‑life performance.

Confirm rail dimension (15/20/25/30/35/45 mm etc.)and compatibility with HIWIN,THK,PMI,WON rails.

Always cross‑validate holding force against actual static load, working air pressure and cycle life before final procurement.

FAQ section

Q1: Can normally open clamps be used for vertical axis?
A:Not recommended.NO clamps release immediately once air pressure drops. Vertical slides will drop without additional independent safety brake.

Q2: Are these clamps compatible with mainstream linear guide brands?
A:Yes.Standard‑size pneumatic clamp brakes fit profiled rails from HIWIN,THK,PMI,WON and other mainstream manufacturers.

Q3: Does clamping damage linear guide rails?
A:No.Clamping force acts on rail side free surfaces instead of ball raceways, maintaining original guide service life.
