LMKS25B

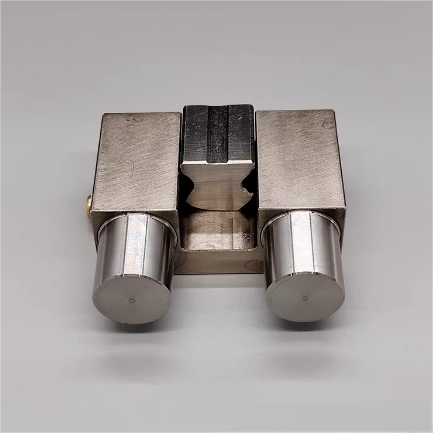

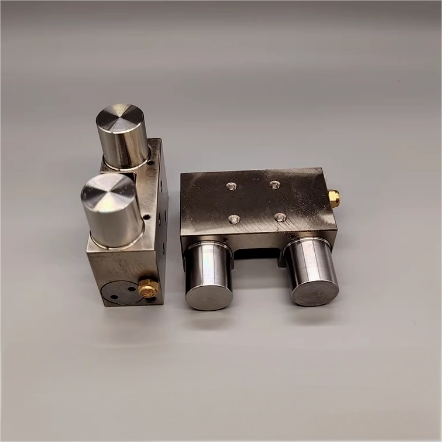

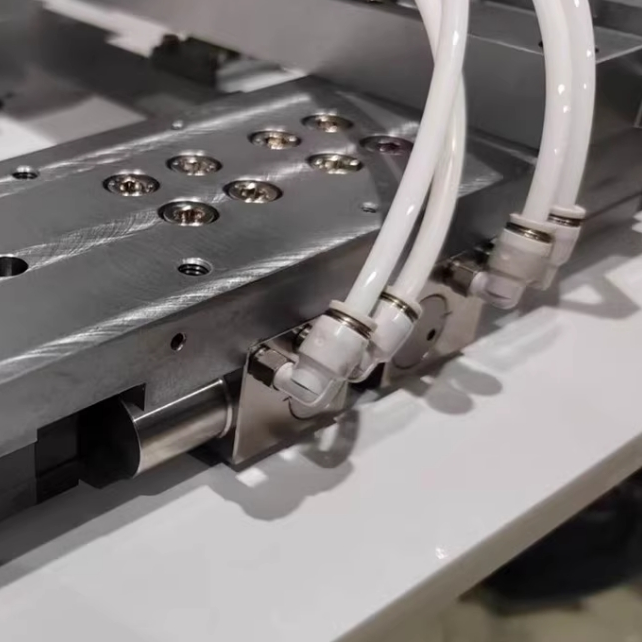

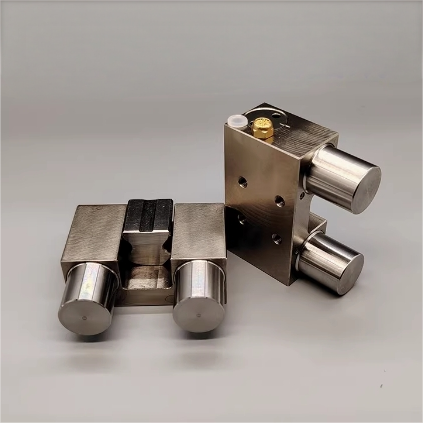

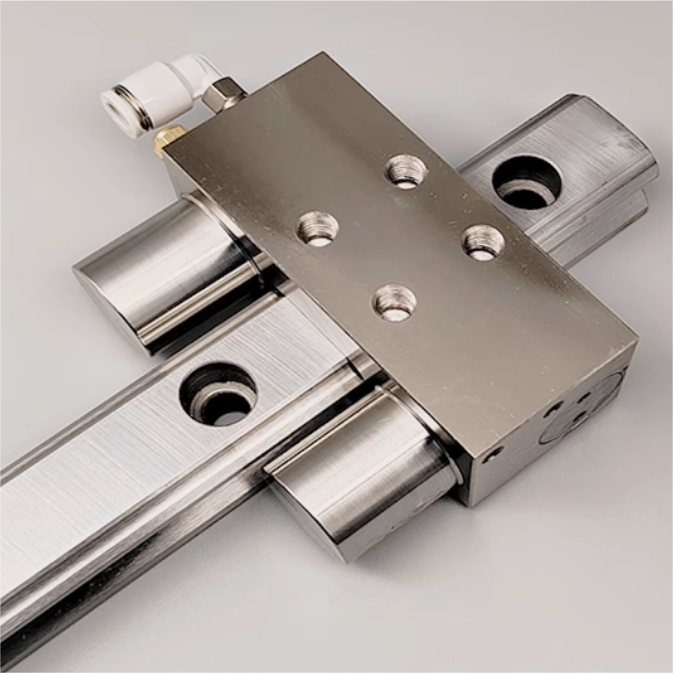

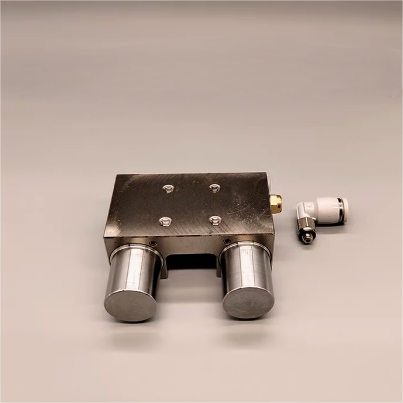

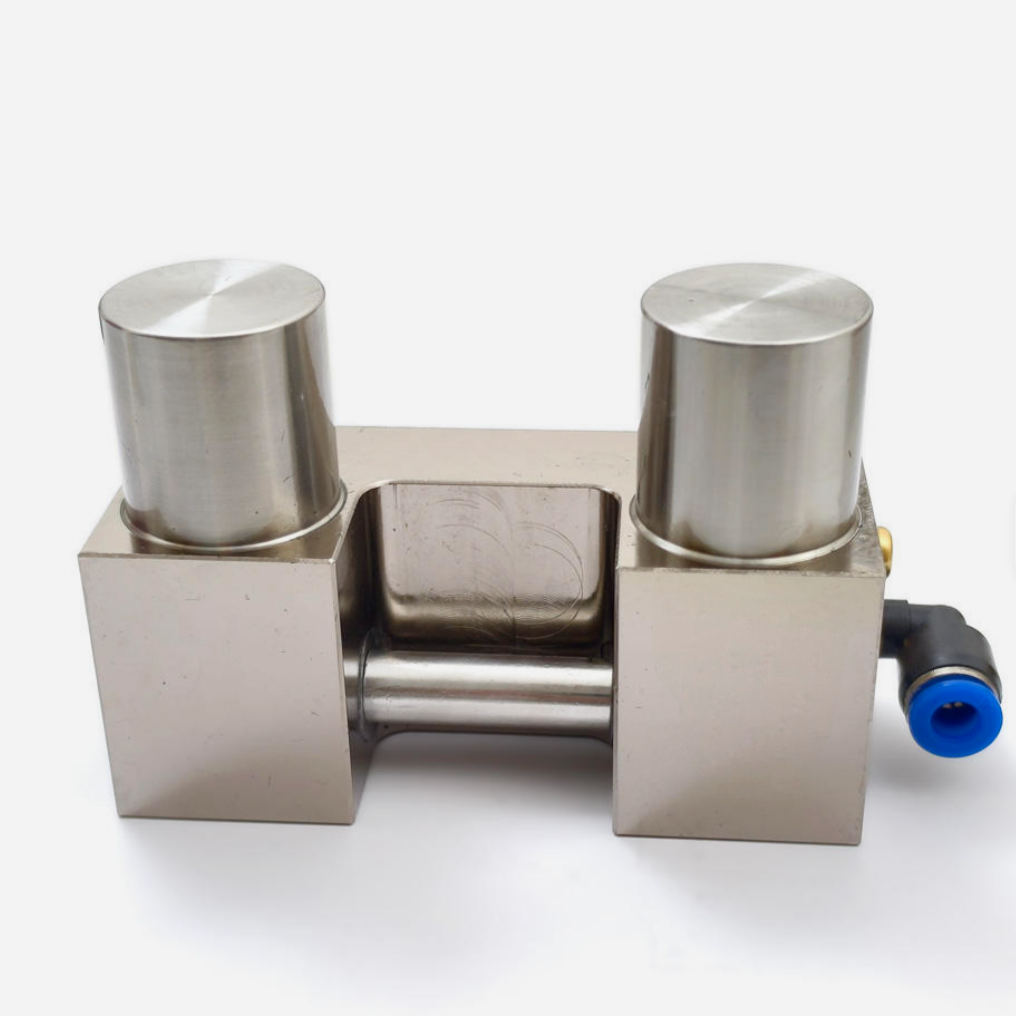

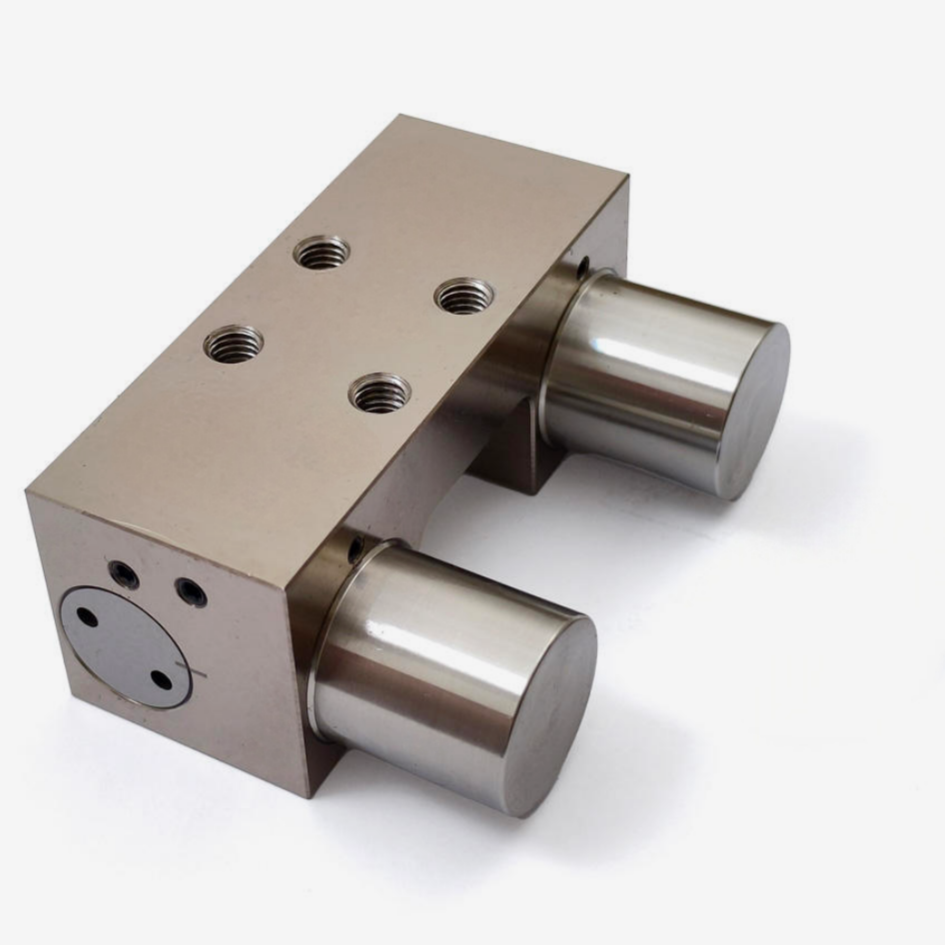

This Linear Guide Clamp Brake is a pneumatically actuated normally closed mechanism designed for HGR25 and EGR25 series linear rails from HIWIN.Small size with incredible holding force.Custom models are available upon request.
| Clamp Types | Pneumatic |
| Applicable guideway sizes | 25mm |
| Rated holding force(N) | 750/1400N(standard) |
| Open air pressure | 0.55/0.4/0.3Mpa |
| Clamping service life | 5 million times |
| Material | Bearing steel with nickel-plated surface coating |
Spacer plate | Available(a spacer plate might have to be ordered as height compensation, depending on the height of the rail carriage) |
| Operating temperature | 0 °~70 °C |
| Applicable guideway brand | HIWIN/THK/PMI/WON/NSK/NB/ABBA and so on |
| 2D and 3D drawing | Available |
Key Advantages:
Customizable Design:Tailored to meet specific application requirements,including force adjustments,mounting configurations,and compatibility with various 25mm rail profiles.
Enhanced Rigidity & Stability:Improves structural rigidity of linear guide systems,minimizing vibration and deflection during high-speed operations or heavy-load conditions.
Instant Locking Function:Provides rapid braking to prevent unintended movement,safeguarding both equipment and operators.
Cost-Effective & Durable:Manufactured with high-grade materials and precision engineering,our linear guide clamp brakes offer extended service life at a competitive price point.
Fast Delivery: Ready-to-ship stock ensures delivery within 3–7 days.
Download Pneumatic Normally Closed Rail Clamp Size Chart.png
