LMBPS35
| Quantity: | |||||||||
|---|---|---|---|---|---|---|---|---|---|
| |||||||||
| Clamp types | Pneumatic normally closed |
| Linear rail sizes | 35mm |
| Holding force(N) | 2600N |
| Operating pressure range | 0.45~0.65Mpa |
| Service life | 2 million times |
Main body material and surface treatment | 42CrMo,non-electrolytic sandblasting nickel plating |
Spacer plate | Available(a spacer plate might have to be ordered as height compensation, depending on the height of the rail carriage) |
| Operating temperature | -10 °~70 °C |

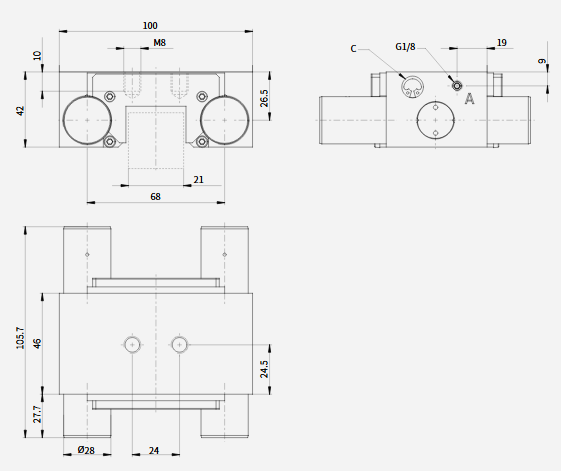

| 2D and 3D drawing | Available |
-Air Filter: Brass
-Main Body: 42CrMo,Electroless Nickel Plating with Sandblasting
-Contact Surface:Equivalent to SKD11,Electroless Nickel Plating
-Adjustment Bolt:Equivalent to SKD11,Electroless Nickel Plating
-Suitable for use with ball linear guides.
-Used to secure the workbench,ensure positioning,and prevent vibration.
-When air pressure is applied: the clamp opens.
-When the air pressure is closed: clamping closed (clamped by spring pressure).
LMT Pneumatic 35mm Linear Guide Clamping Element Advantages:
-Fast delivery :7~18 days.
-Help you save 50%~70% of the cost.
-Direct replacement for Zimmer MBPS series pneumatic normally close clamping element.
-Customizable Design:Tailored to meet specific application requirements
-Machining Precision:Instead of ordinary milling,we adopt precision grinding to ensure much higher accuracy.
-Quality Control:Every clamping element will go through full performance testing and inspection before shipment to ensure 100% qualified products.
-Superior Material:We use 42CrMo alloy steel for the clamp's main body,while most other Chinese suppliers use C45 steel.Our clamps offer higher strength,better wear resistance and longer service life.
-Corrosion Resistance:We use electroless sandblasting nickel plating,which provides excellent anti-rust and anti-corrosion performance,a premium appearance,and resistance to scratching or peeling after long-term use.
