LMK20B
| Quantity: | |||||||||
|---|---|---|---|---|---|---|---|---|---|
| |||||||||

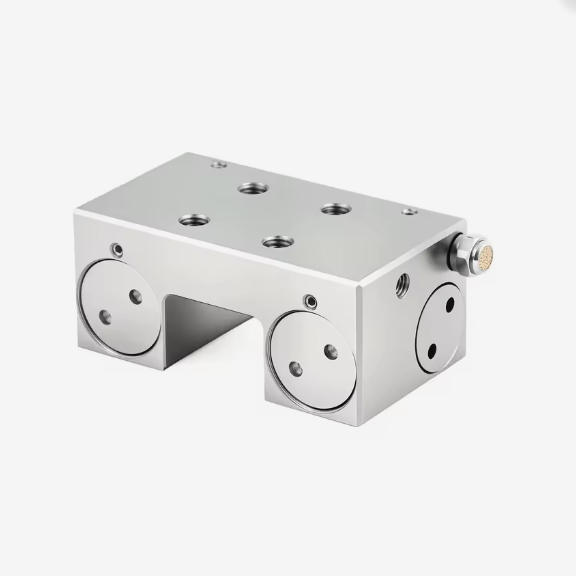

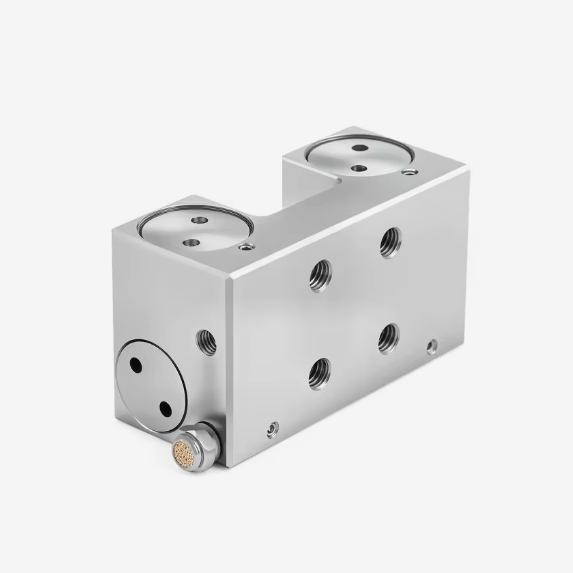

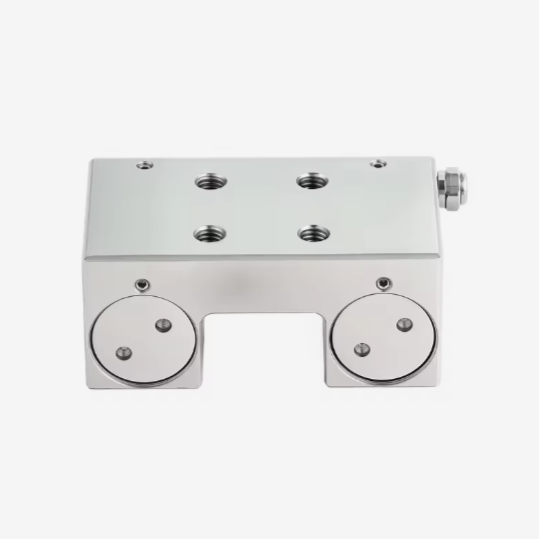

Pneumatic Normally Open Clamping Element for THK HSR20 Linear Guide Rail
This pneumatic clamp adopts a normally open design.It clamps the linear guide when air is supplied and releases automatically when air is cut off,mainly for positioning and locking.It features compact structure,easy installation and stable performance,widely used in automated equipment and machinery to improve rigidity and shock resistance.
Specifications：
| Clamp types | Pneumatic normally open |
| Linear guide sizes | 20mm |
| Rated holding force(N) | 1000N |
| Open air pressure | 0.2~0.6Mpa |
| Clamping service life | 5 million times |
| Material | Bearing steel with nickel-plated surface coating |
Spacer plate | Available(a spacer plate might have to be ordered as height compensation, depending on the height of the rail carriage) |
| Operating temperature | 0 °~70 °C |
| Applicable guideway brand | HIWIN/THK/PMI/WON/NSK/NB/ABBA and so on |
| 2D and 3D drawing | Available |
LMT Pneumatic NO Clamp Advantages:
-Fast delivery within 3 days.
-Help you save 25%~45% of the cost.
-High Durability,up to 5 million static clamping cycles.
-Direct replacement for Zimmer or NBK brand MK series pneumatic normally open clamp.
-This rail clamping element is compatible with most linear guide systems available on the market,including major brands such as HIWIN,THK,IKO,PMI,WON,NSK,NB,and ABBA.
-Pneumatic normally open clamps that are in a loosened state when air is not supplied.
-Through the wedge block expanding force principle,using air pressure to realize clamping.
-Compact structure with strong holding force.Novel design to avoid rigid impact when clamping.
-Easy to install,directly connected with the worktable,no need to change the size of the worktable.
