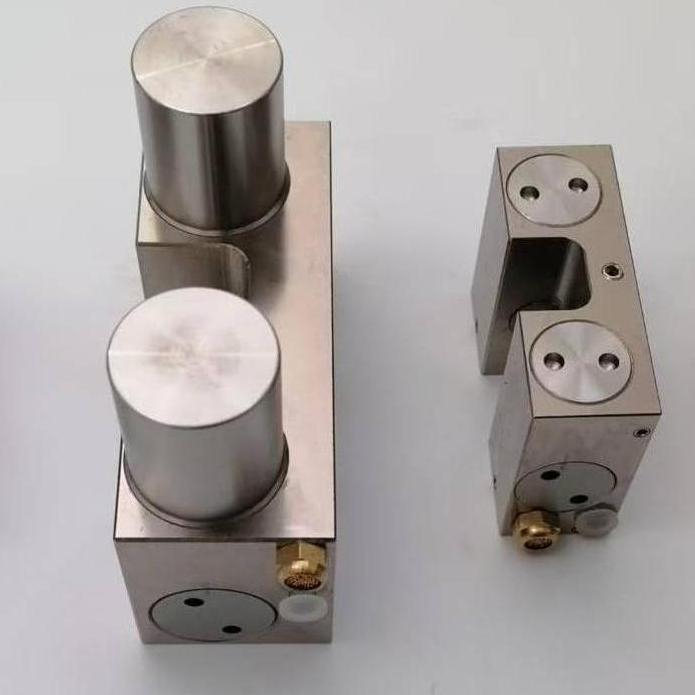

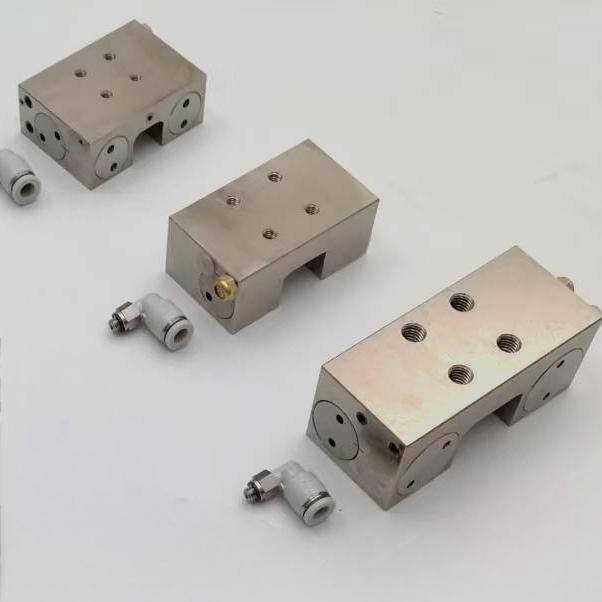

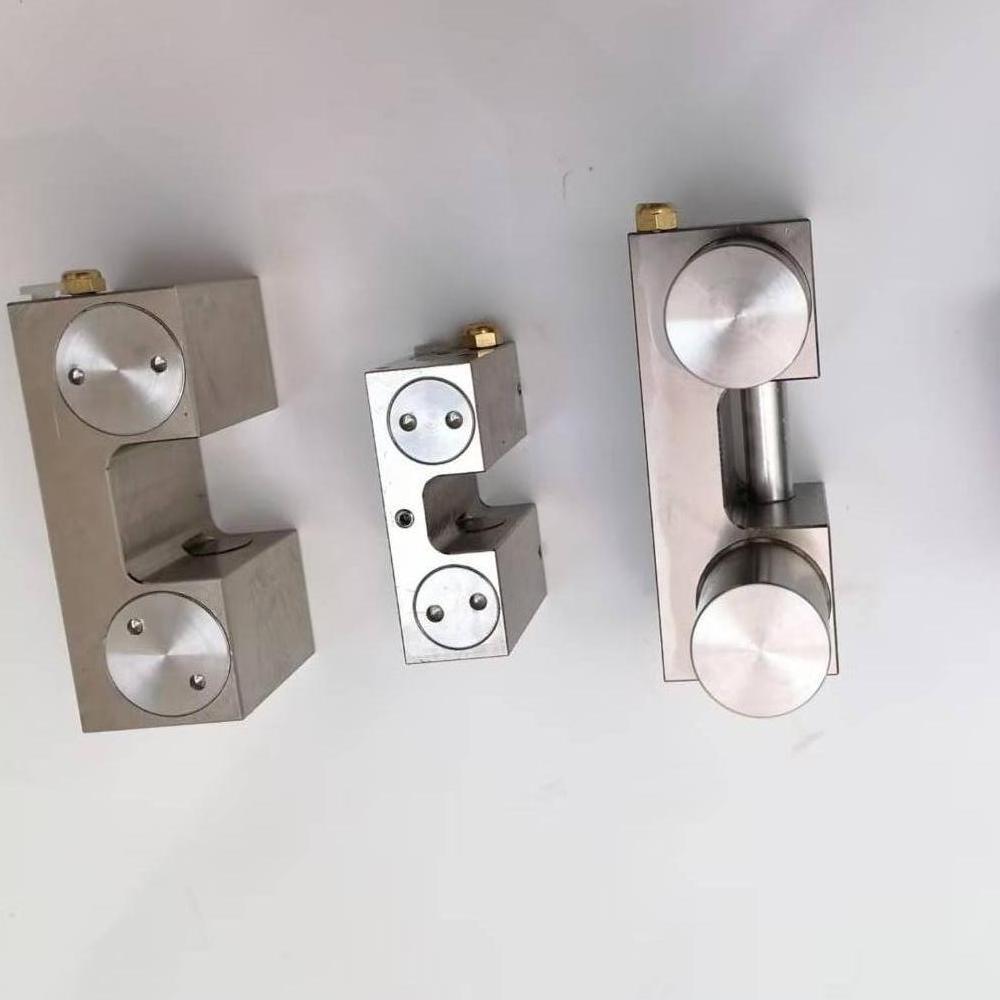

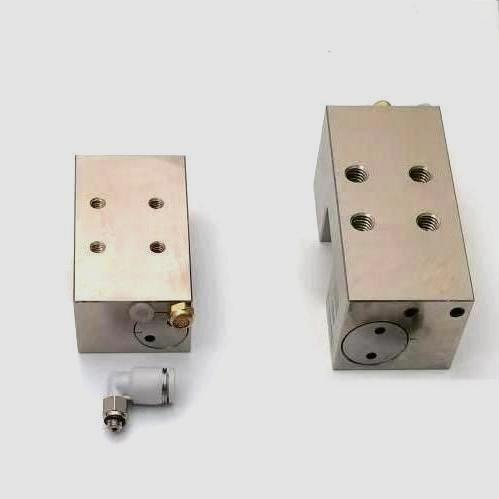

Pneumatic Normally Open Clamp Fixture for 15mm Linear Rail
This clamp braking enhances linear system rigidity and safety.It releases without air supply and clamps when air is supplied.Compatible with most standard 15mm linear guides.
Specifications：
| Clamp types | Pneumatic normally open |
| Applicable guideway sizes | 15mm |
| Rated holding force(N) | 650N |
| Open air pressure | 0.2~0.6Mpa |
| Clamping service life | 5 million times |
| Material | Bearing steel with nickel-plated surface coating |
Spacer plate | Available(a spacer plate might have to be ordered as height compensation, depending on the height of the rail carriage) |
| Operating temperature | 0 °~70 °C |
| Applicable guideway brand | HIWIN/THK/PMI/WON/NSK/NB/ABBA and so on |
| 2D and 3D drawing | Available |
Why Choose Our Linear Guide Clamp Brake?
Fast delivery within 3 days.
Help you save 35% of the cost.
Direct replacement for Zimmer MK1501A Clamping Element.
High Durability,up to 5 million static clamping cycles.
This rail clamping element is compatible with most linear guide systems available on the market,including major brands such as HIWIN,THK,PMI,WON,NSK,NB,and ABBA.
