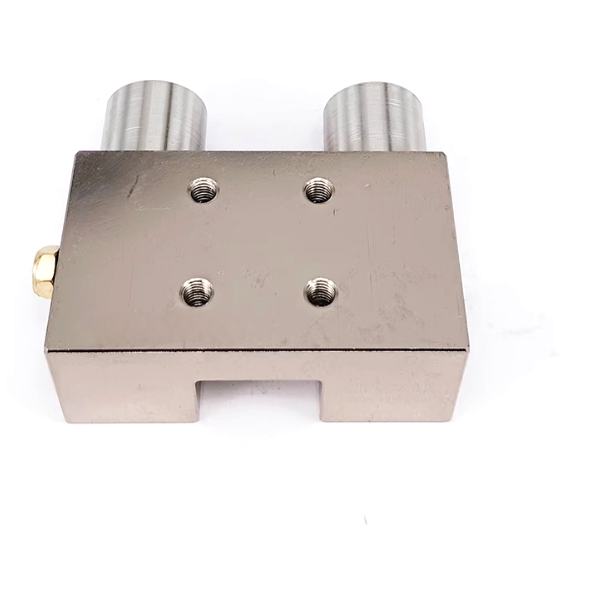

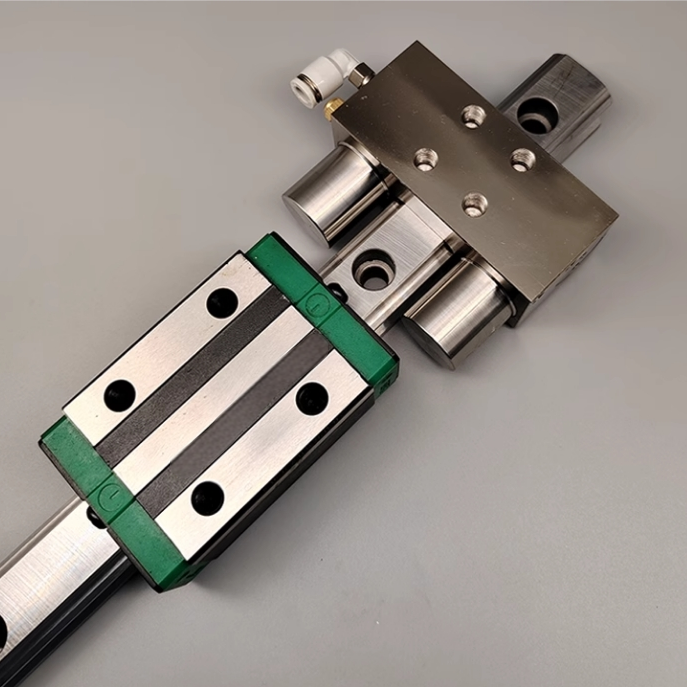

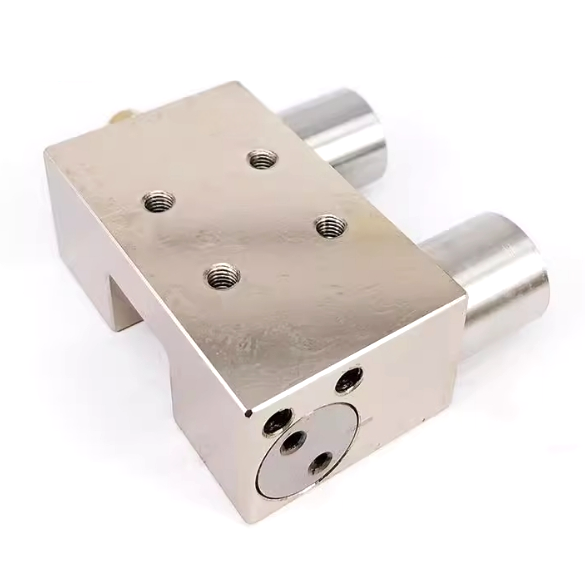

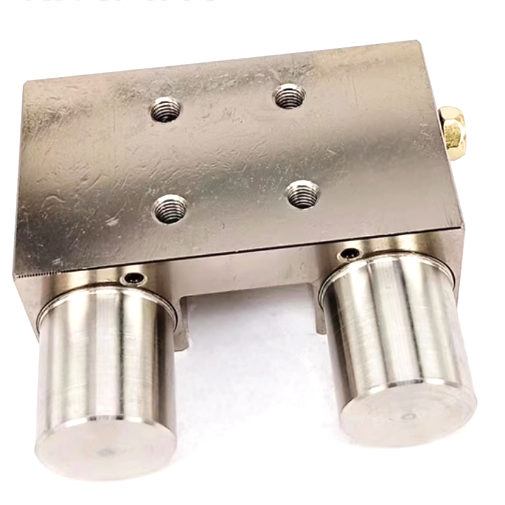

Replace MKS6501A Pneumatic Normally Close Clamp Fixture
This pneumatic normally close clamp fixture fits most 65mm linear guides on the market.It improves the rigidity and safety of linear guide systems.Replaces MKS6501A rail clamp with a more affordable price and fast delivery.
Specification:
| Clamp Types | Pneumatic normally close |
| Applicable guideway sizes | 65mm |
| Rated holding force(N) | 1450/3300N(Standard) |
| Open air pressure | 0.55/0.4/0.3Mpa |
| Clamping service life | 5 million times |
| Material | Bearing steel with nickel-plated surface coating |
Spacer plate | Available(a spacer plate might have to be ordered as height compensation, depending on the height of the rail carriage) |
| Operating temperature | 0 °~70 °C |
| Applicable guideway brand | HIWIN/THK/PMI/WON/NSK/NB/ABBA and so on |
| 2D and 3D drawing | Available |
Our Linear Guide Clamp Brake Key Advantages:
Lead time:Within 3 days.
Cost-effective: 50% cost savings.
High Durability:Up to 5 million static clamping cycles
Broad Range of Products:For all common profile rail guides
Completely replace the Zimmer brand MKS series linear guide clamp.
Customizable Design:Tailored to meet specific application requirements,including force adjustments,mounting configurations,and compatibility with various 65mm rail profiles.
Pneumatic Normally Close Clamp Brake Video
