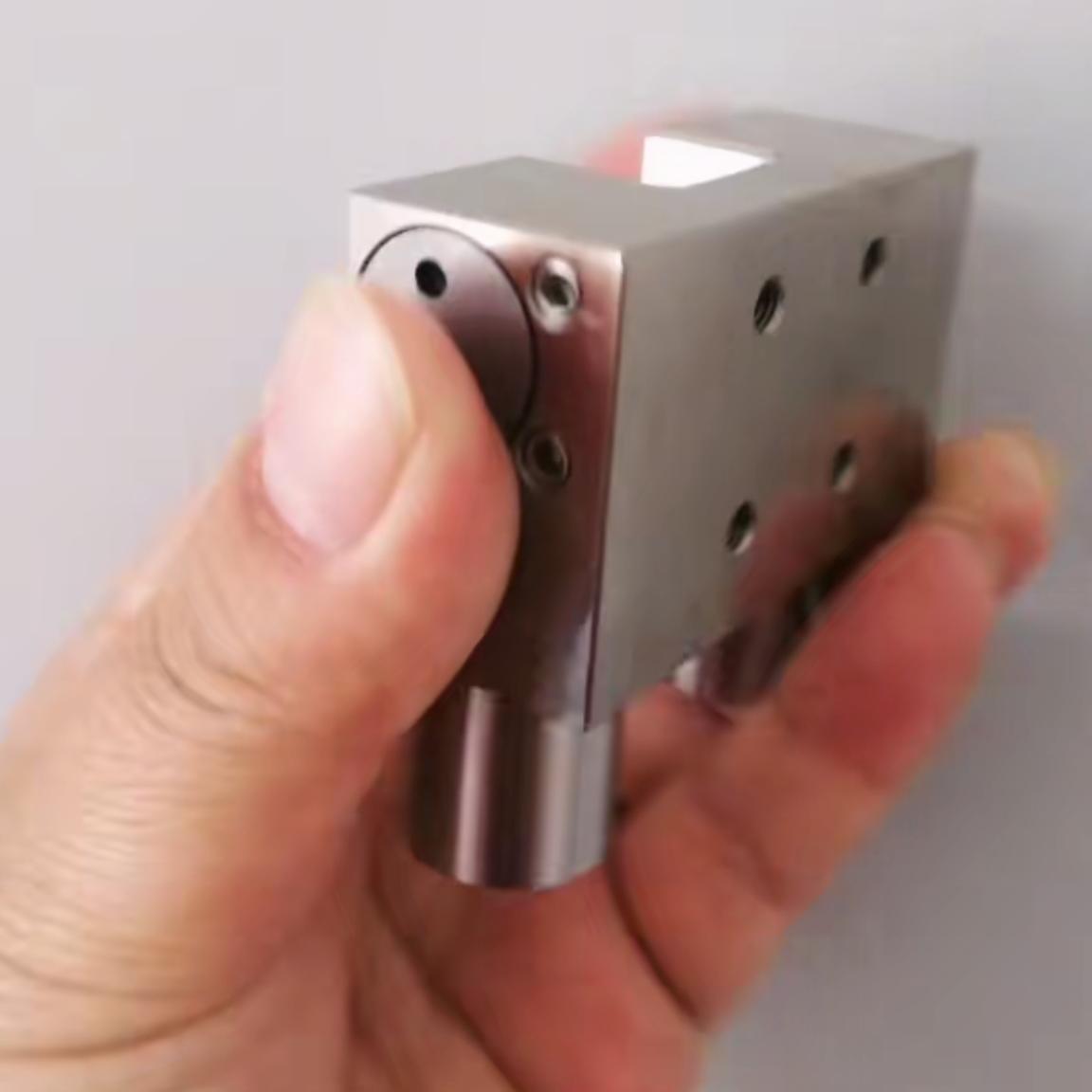

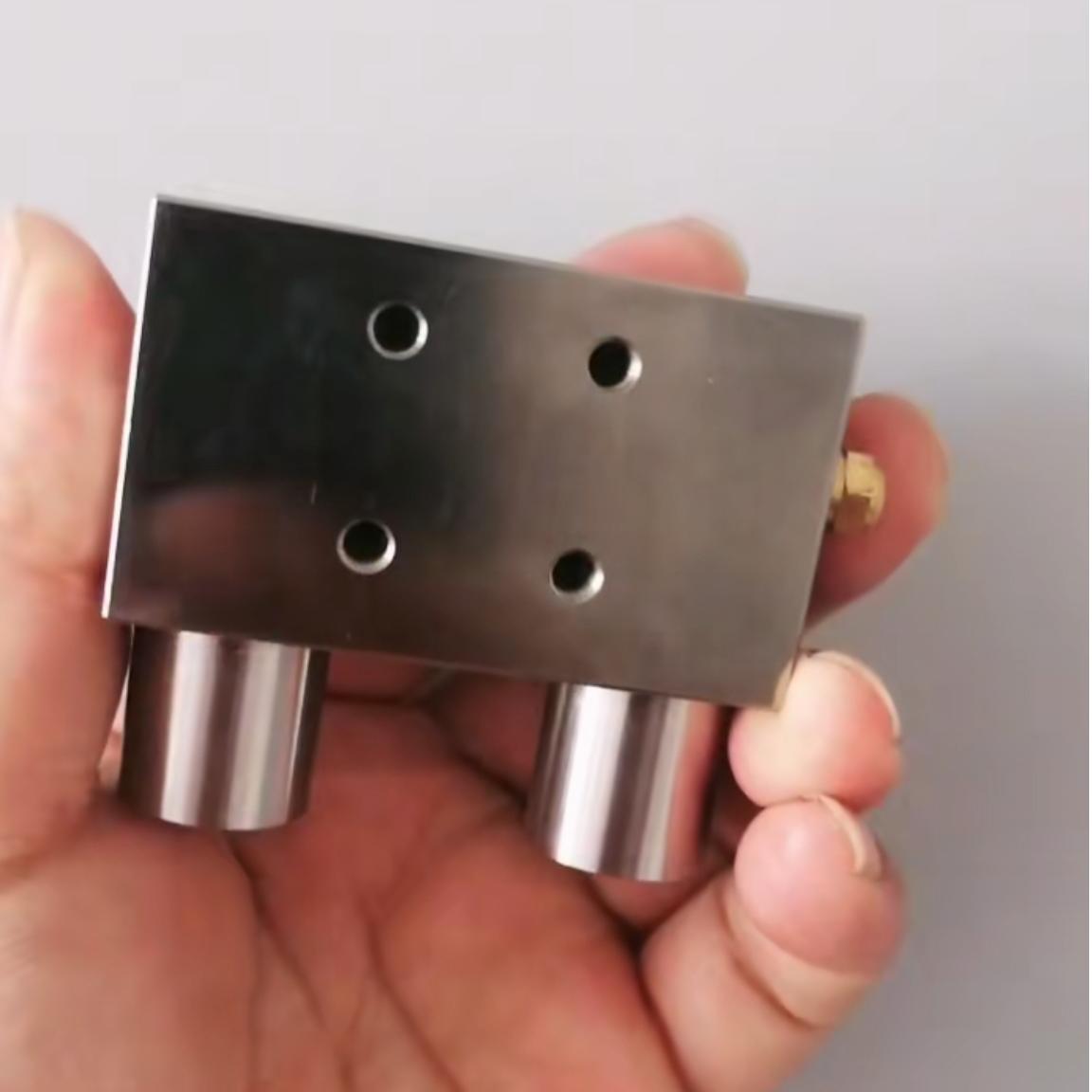

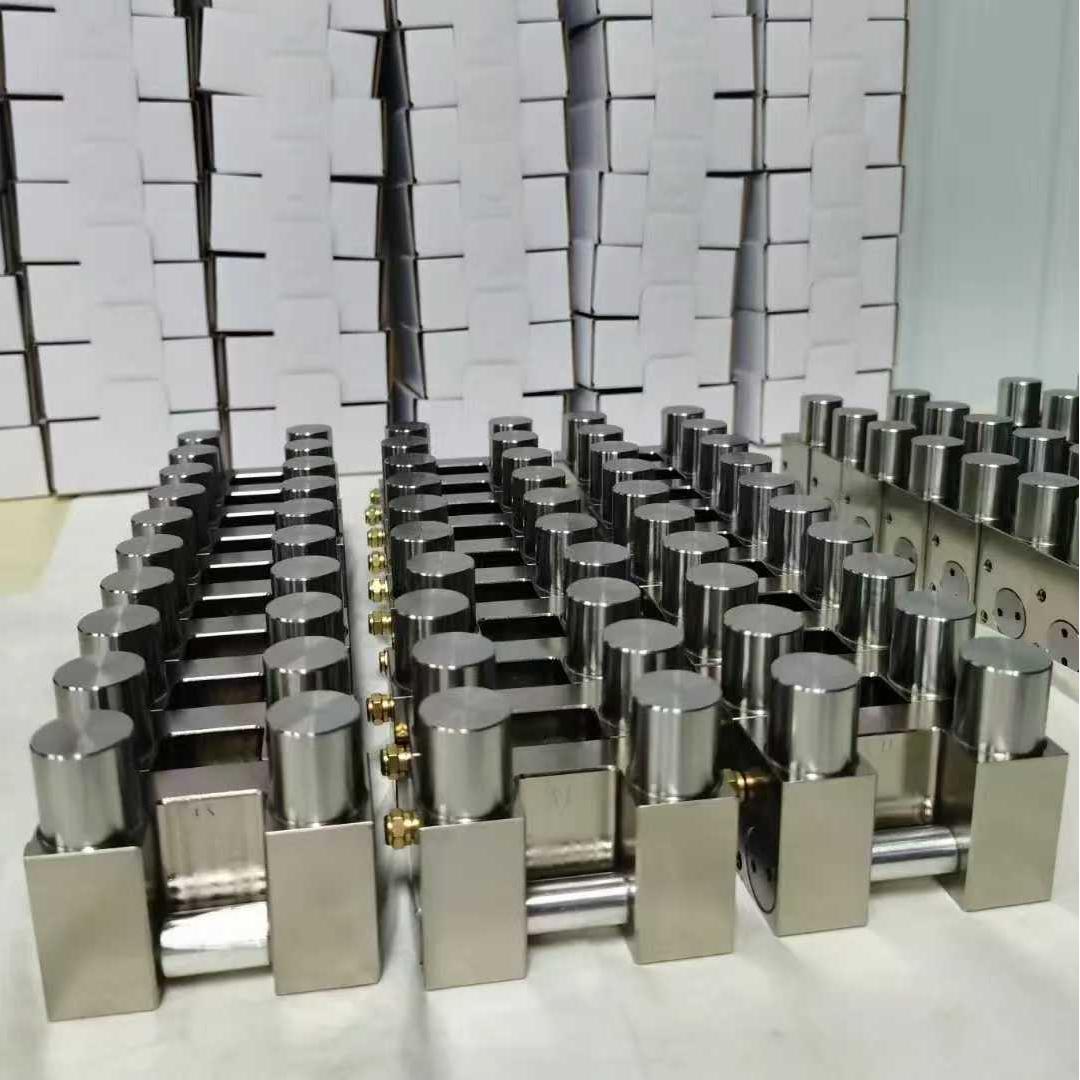

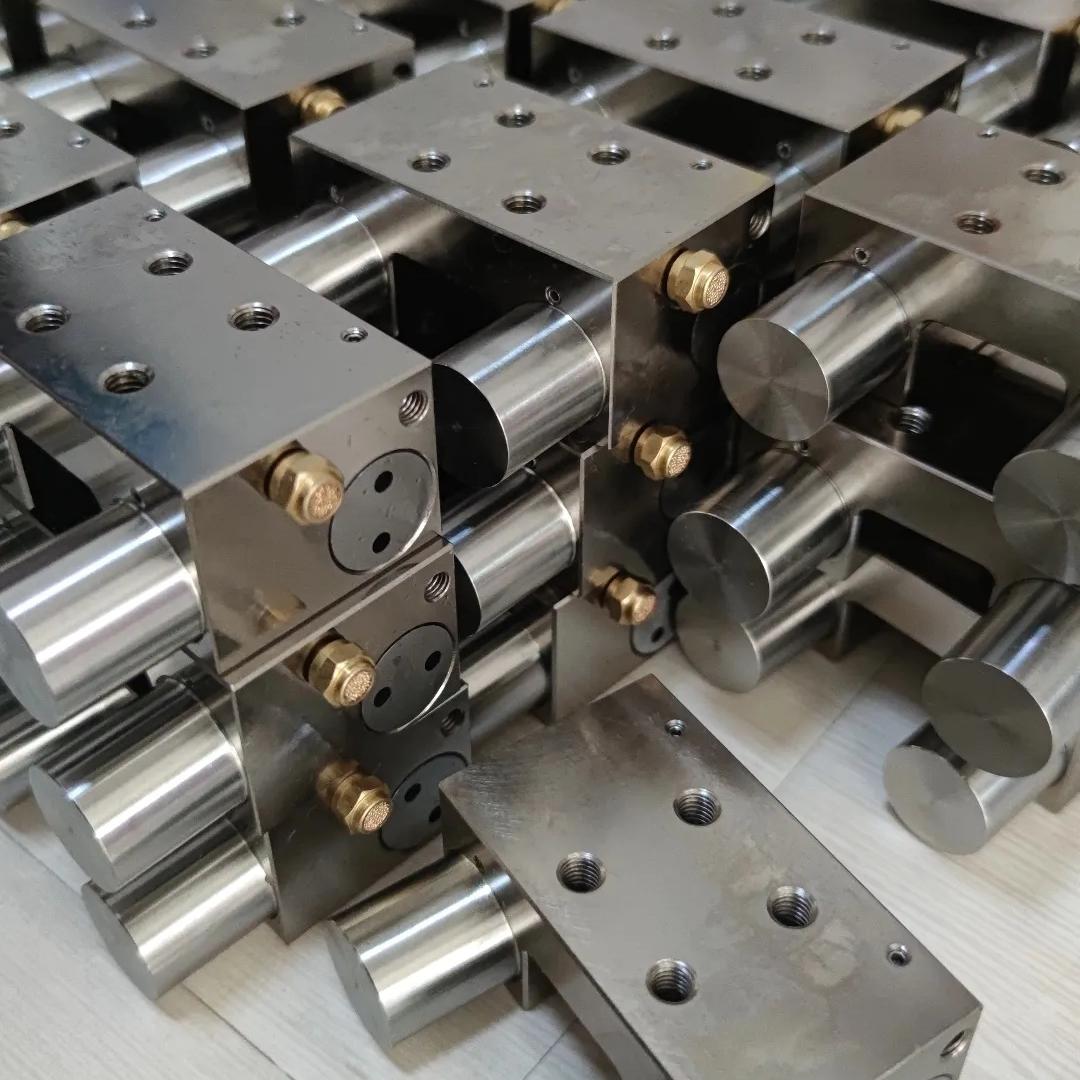

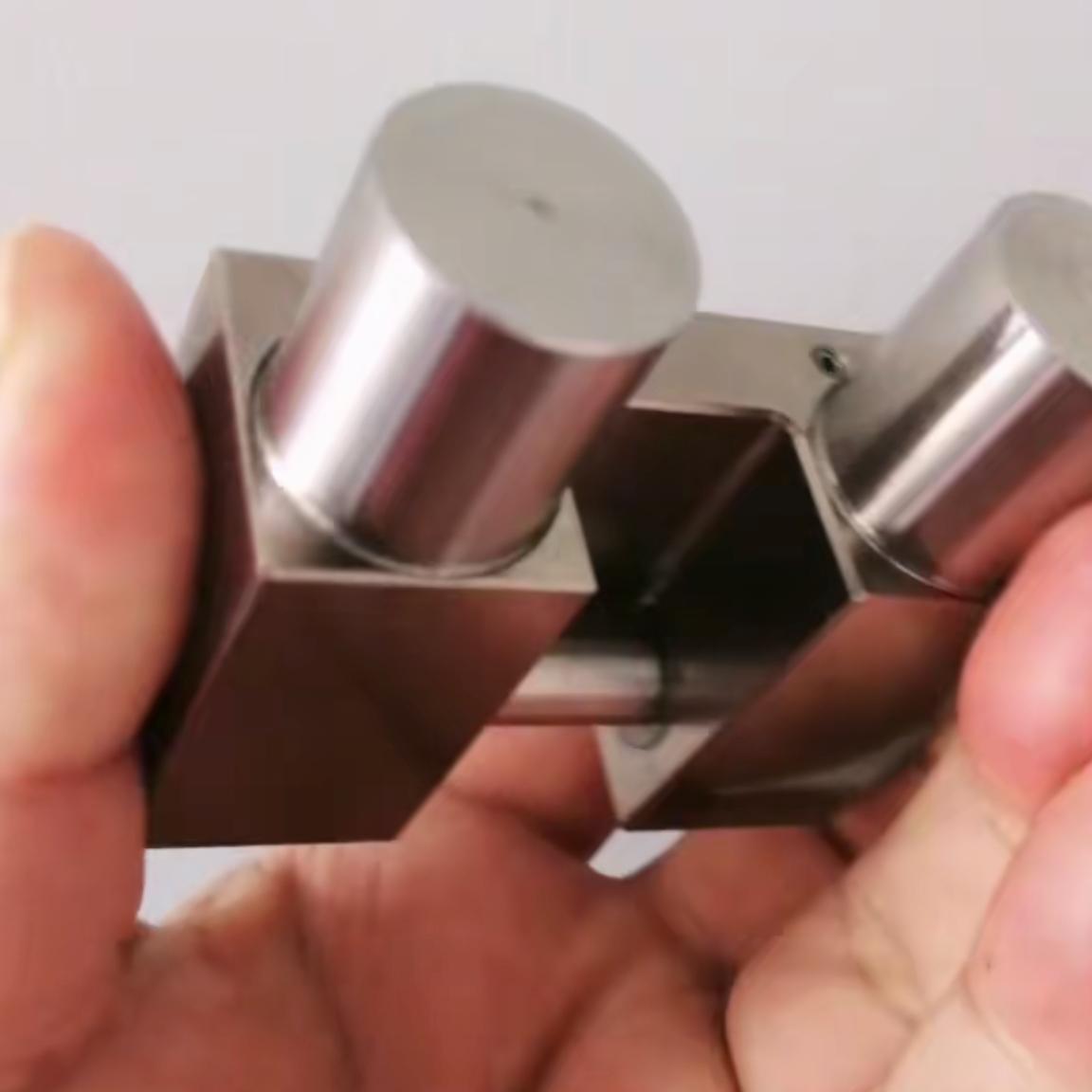

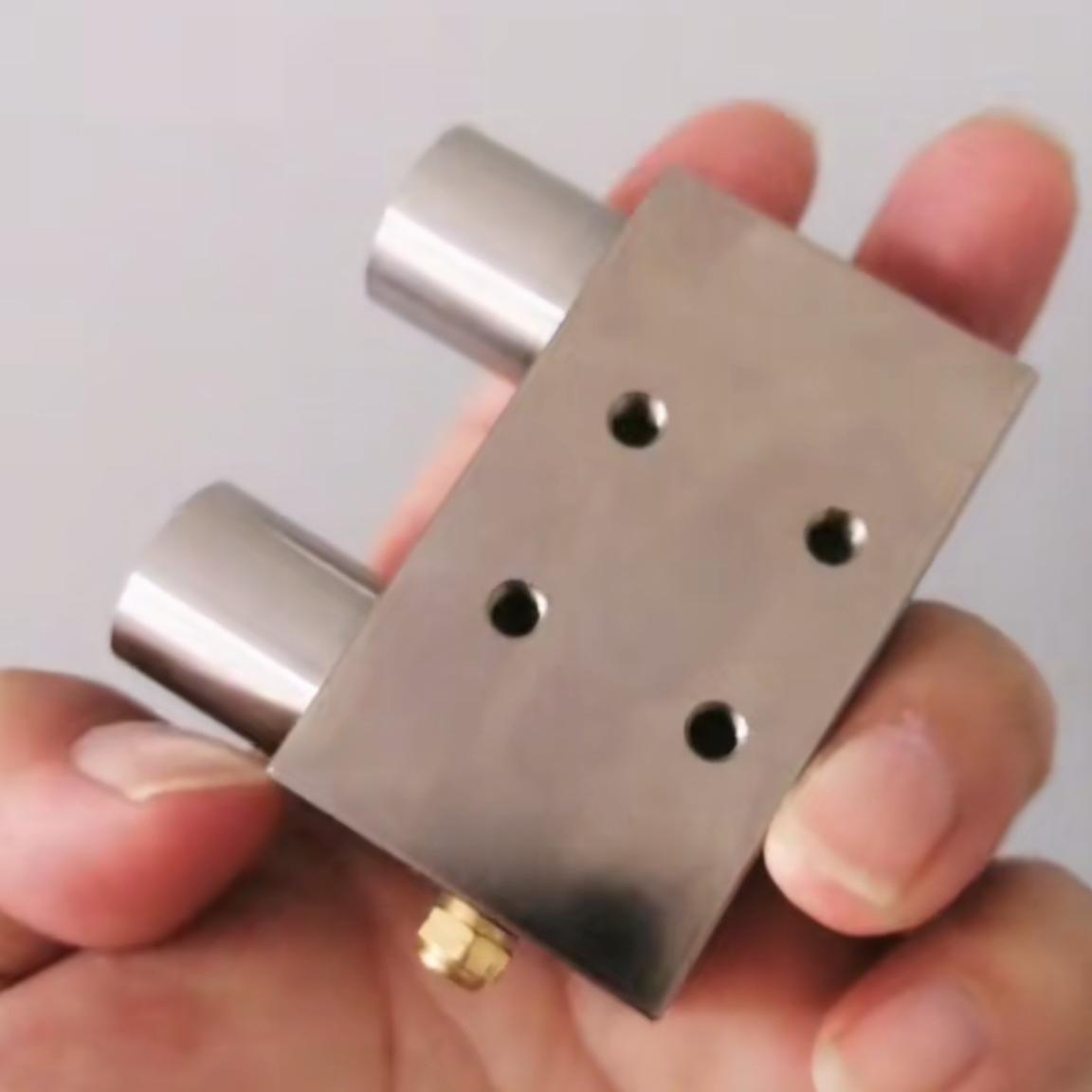

Replace Zimmer MKS3501A 35mm Cost-effective Clamp Brake
This product is designed as a direct replacement for the Zimmer MKS3501A pneumatic normally closed clamp brake.It offers a reliable and cost-effective solution for applications requiring a brake on 35mm linear guides.The normally closed design ensures that the clamp brake is engaged when there is no air supply,providing safety in case of power or air failure.With its robust construction,it delivers consistent performance and long service life.
Specification:
| Clamp Types | Pneumatic normally close |
| Applicable guideway sizes | 35mm |
| Rated holding force(N) | 1250/3250N(Standard) |
| Open air pressure | 0.55/0.4/0.3Mpa |
| Clamping service life | 5 million times |
| Material | Bearing steel with nickel-plated surface coating |
Spacer plate | Available(a spacer plate might have to be ordered as height compensation, depending on the height of the rail carriage) |
| Operating temperature | 0 °~70 °C |
| Applicable guideway brand | HIWIN/THK/PMI/WON/NSK/NB/ABBA and so on |
| 2D and 3D drawing | Available |
Our Linear Guide Clamp Brake Key Advantages:
Lead time:Within 3 days.
Cost-effective: 50% cost savings.
High Durability:Up to 5 million static clamping cycles
Broad Range of Products:For all common profile rail guides
Completely replace the Zimmer brand MKS series linear guide clamp.
Customizable Design:Tailored to meet specific application requirements,including force adjustments,mounting configurations,and compatibility with various 15mm rail profiles.
Pneumatic Normally Close Clamp Brake Video
