Available Screw Materials:S45C,SS303,SS304,SS316
Available Nut Materials:Brass,Bronze,POM,PEEK,Nylon,S45C,SS304
Customized Service:6.35×1.5875 ACME screw and nut will be produced according to your requirements or drawings

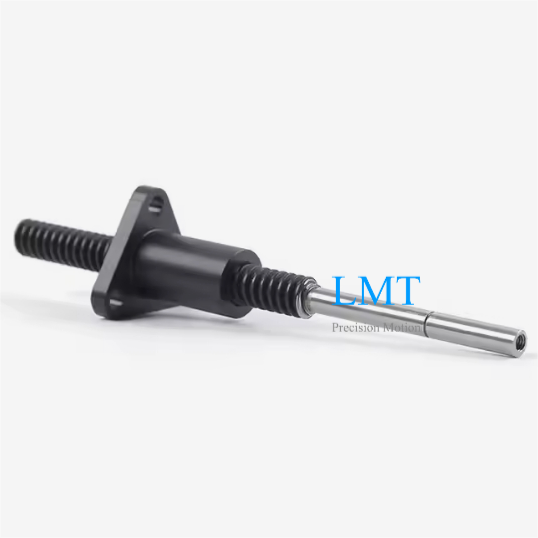

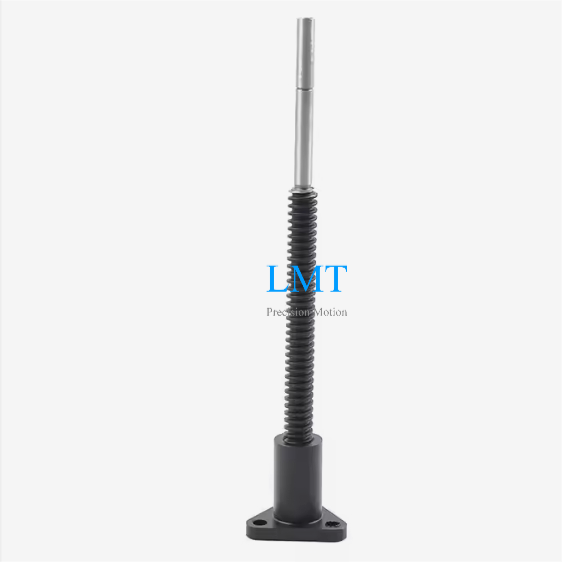

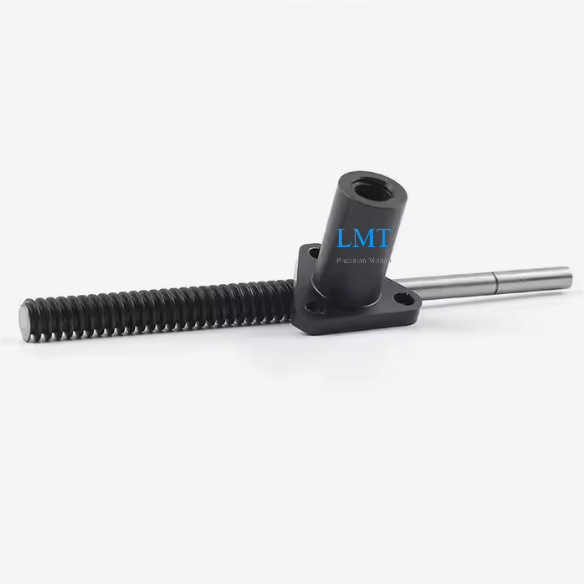

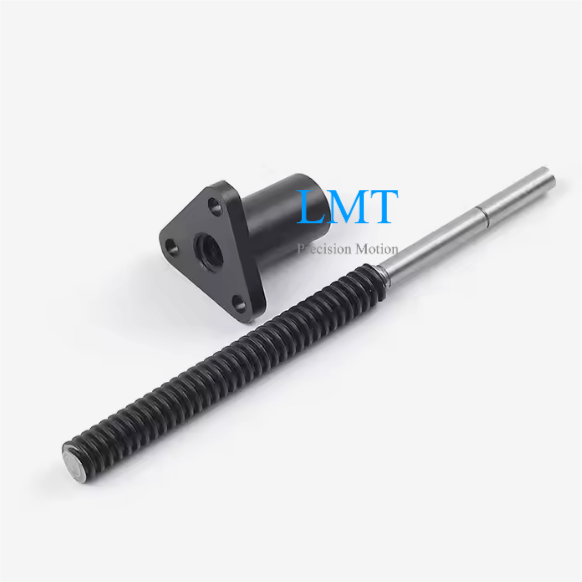

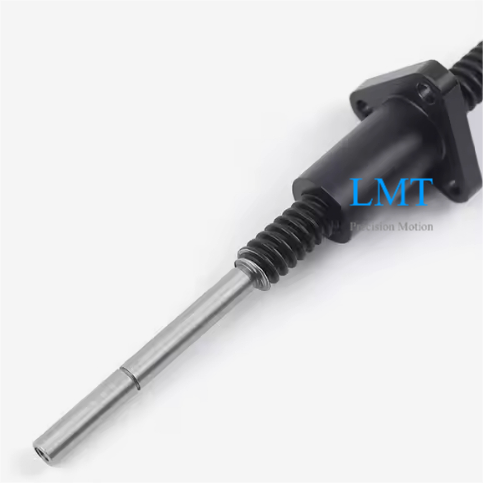

6.35×1.5875 Dia 6.35mm Lead 1.5875mm Precision ACME Screw with Anti-backlash Nut
Designed for ultra-fine motion control, this 29° ACME threaded screw combines a 6.35mm diameter with a micro-pitch 1.5875mm lead.Cold-rolled to Ra≤0.8μm mirror finish and paired with a zero-backlash nut,it delivers high repeatability,exceptional wear resistance,and vibration-free smoothness.
Specification：
Diameter | 6.35mm |
Lead | 1.5875mm |
Pitch | 1.5875mm |
| Number of starts | 1 |
Screw shaft end machining and length | According to your requirement or drawing |
Nut shape and dimension | According to your needs |
Thread direction | Right hand thread/left hand thread/right and left hand thread |
Screw material | S45C/ SS303/SS304/SS316 |
Nut material | Brass/Bronze/POM/PEEK/Nylon/Stainless steel/S45C |
Popular surface coatings | Teflon coating/nickel plated/tungsten disulfide/black chorme plated/molybdenum disulfide/DLC coating. |
6.35x1.5875 ACME Screw Assembly Advantages:
15%~40% cost savings
Fast Delivery ≤12 days
Smooth & Quiet Operation:Minimizes friction and eliminates noise,crucial for sensitive environments.
Fully Customizable:Tailor screw length,screw shaft end,nut shape,nut material and thread profiles to your exact needs.
Consistent Accuracy:Pre-loaded anti-backlash nut eliminates axial play.Provides reliable,repeatable motion over extended periods.
6.35×1.5875 Dia 6.35mm Lead 1.5875mm Precision ACME Screw with Anti-backlash Nut
Designed for ultra-fine motion control, this 29° ACME threaded screw combines a 6.35mm diameter with a micro-pitch 1.5875mm lead.Cold-rolled to Ra≤0.8μm mirror finish and paired with a zero-backlash nut,it delivers high repeatability,exceptional wear resistance,and vibration-free smoothness.
Specification：
Diameter | 6.35mm |
Lead | 1.5875mm |
Pitch | 1.5875mm |
| Number of starts | 1 |
Screw shaft end machining and length | According to your requirement or drawing |
Nut shape and dimension | According to your needs |
Thread direction | Right hand thread/left hand thread/right and left hand thread |
Screw material | S45C/ SS303/SS304/SS316 |
Nut material | Brass/Bronze/POM/PEEK/Nylon/Stainless steel/S45C |
Popular surface coatings | Teflon coating/nickel plated/tungsten disulfide/black chorme plated/molybdenum disulfide/DLC coating. |
6.35x1.5875 ACME Screw Assembly Advantages:
15%~40% cost savings
Fast Delivery ≤12 days
Smooth & Quiet Operation:Minimizes friction and eliminates noise,crucial for sensitive environments.
Fully Customizable:Tailor screw length,screw shaft end,nut shape,nut material and thread profiles to your exact needs.
Consistent Accuracy:Pre-loaded anti-backlash nut eliminates axial play.Provides reliable,repeatable motion over extended periods.
