Available Screw Materials:S45C,SS303,SS304,SS316

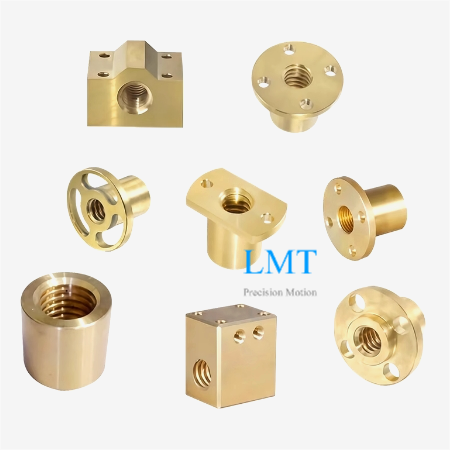

Available Nut Materials:Brass,Bronze,POM,PEEK,Nylon,S45C,SS304
Customized Service:T12x45 Lead screw and nut will be produced according to your requirements or drawings

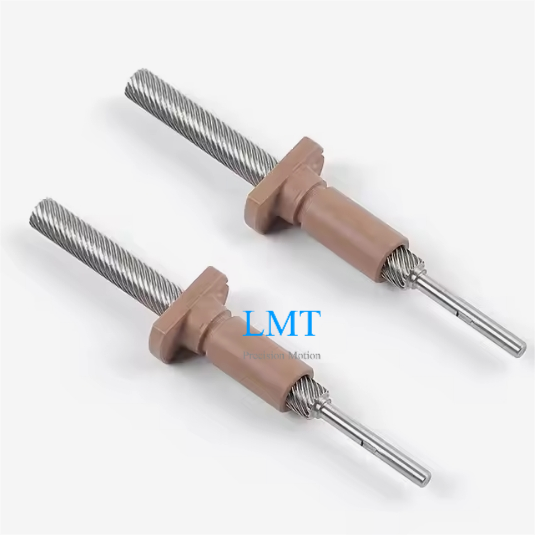

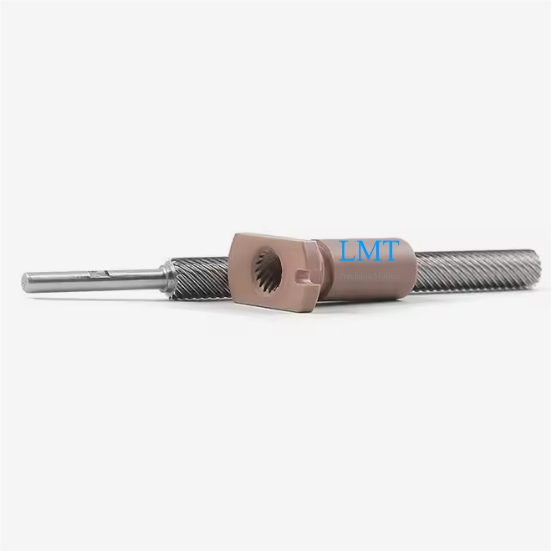

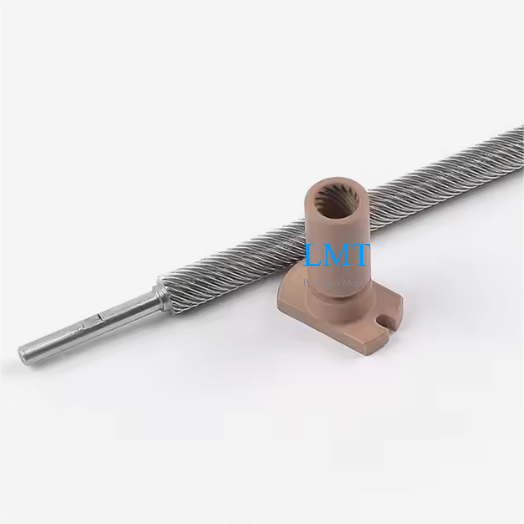

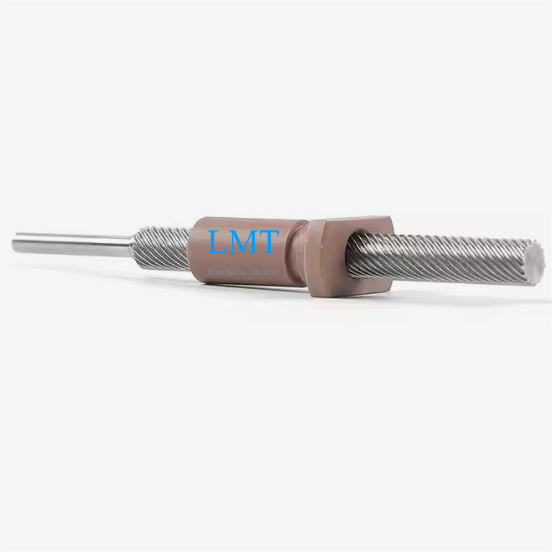

Tr12x45 Diameter 12mm Lead 45mm Lead Screw with Flange Nut
Our Tr12x45 trapezoidal lead screw features a 12mm diameter and a large 45mm lead.With each rotation,the matching flange nut advances smoothly for a full 45mm of travel.Engineered for high-speed,noise-free operation,this cold-rolled screw delivers exceptional surface smoothness.Experience zero vibration and ultra-silent running in demanding applications like CNC machines and automation systems.
Specification:
Diameter | 12mm |
Lead | 45mm |
Pitch | 3mm |
| Number of starts | 15 |
Thread direction | RH/LH/RL |
Screw material | S45C/ SS303/SS304/SS316 |
Nut material | Brass/Bronze/POM/PEEK/Nylon/Stainless steel/S45C |
Tr12x45 Lead Screw and Nut Advantages:
Cost-effective:15% ~40% cost savings.
Fast Delivery:Within 12 days.
Customized Service:The T12x45 lead screw and nut will be manufactured according to your requirements.
High-Speed Performance: The large 45mm lead means significantly fewer rotations are needed to cover long distances.
Superior Surface & Precision:Crafted using advanced cold-rolling technology,the screw thread boasts an exceptionally smooth,hardened surface.This minimizes friction,ensures effortless gliding of the nut,and extends service life.
