Tr6x10 Custom Precision Lead Screw with 6x10 Nut

  • Model Number: Diameter 6mm,lead 10mm(pitch 2.5mm)
  • Lead Time and MOQ : lead time 12~14days,MOQ 1 pc
  • Available Screw Materials:S45C,SS303,SS304,SS316

  • Available Nut Materials:Brass,Bronze,POM,PEEK,Nylon,S45C,SS304

  • Customized Service:Lead screws and nuts will be custom-produced according to your requirements or drawings




Availability:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
kakao sharing button
snapchat sharing button
telegram sharing button
sharethis sharing button

Tr6x10 Custom Precision Lead Screw with 6x10 Nut


The lead screw features a 6mm diameter and a 10mm lead,ensuring a 10mm linear travel per revolution for the 6x10 nut.Designed for customization,both Tr6x10 screw and nut are engineered to deliver reliable performance with tight tolerances,making them suitable for precision motion control systems requiring tailored solutions.


Diameter

6mm

Lead

10mm

Pitch

2.5mm

Number of starts 4

Thread direction

RH/LH/RL

Screw material

S45C/ SS303/SS304/SS316

Nut material

Brass/Bronze/POM/PEEK/Nylon/Stainless steel/S45C


Why Choose our T6x10 Lead Screw?

  • Cost-effective:35% cost savings.

  • Fast Delivery:Within 14 days.

  • Customized Service:The lead screw and nut will be manufactured according to your requirements.

  • Precision Rolled Threads:Tr6x10 rolled lead screw boasts superior surface smoothness,mechanical strength.Highest lead accuracy ±0.012mm/100mm.

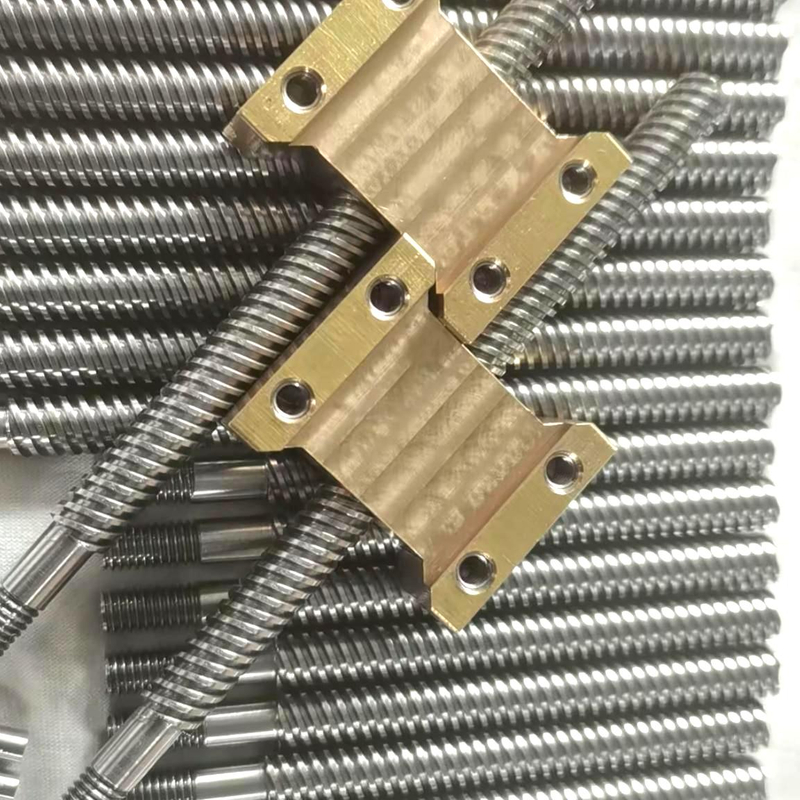

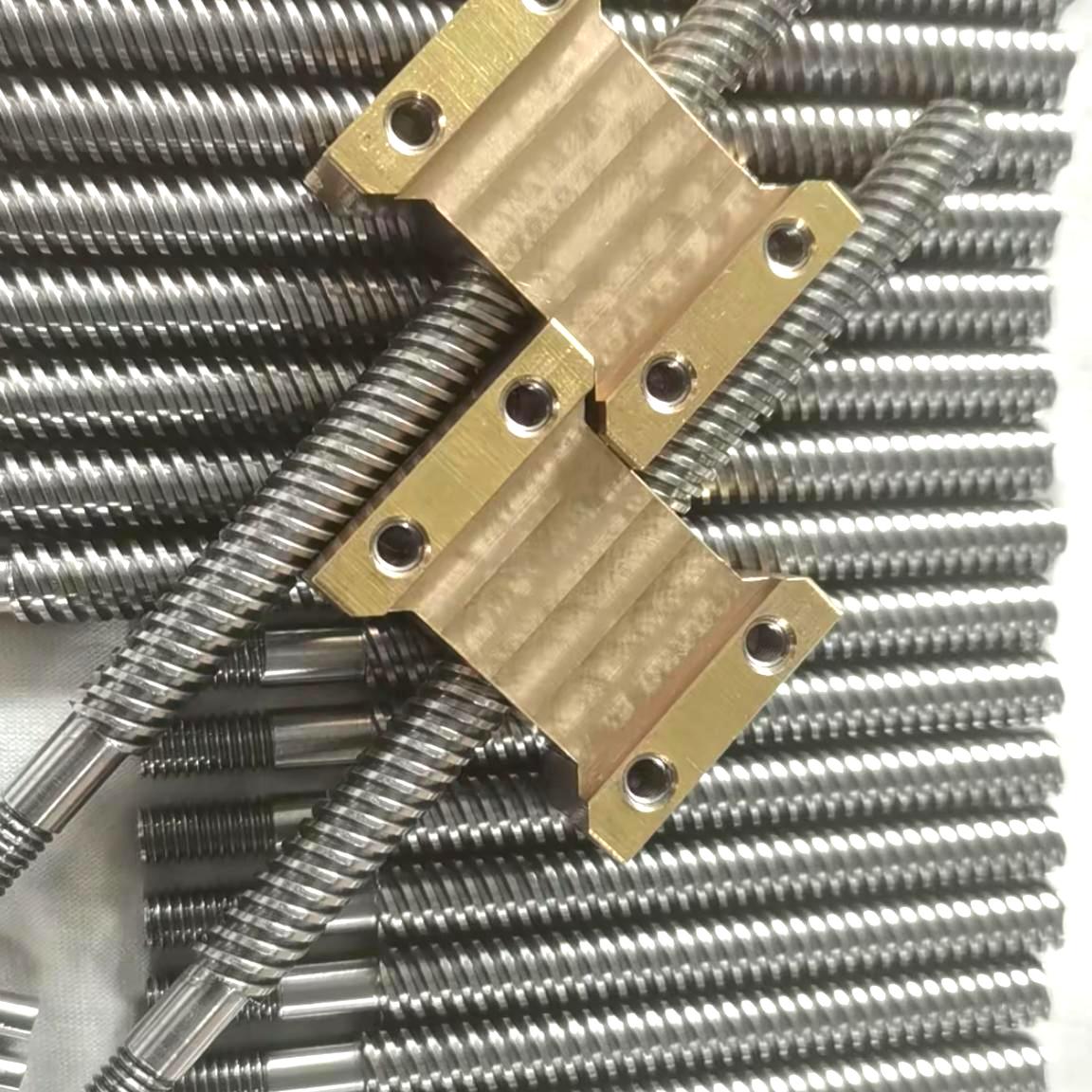

Tr6x10 Custom Precision Lead Screw with 6x10 Nut

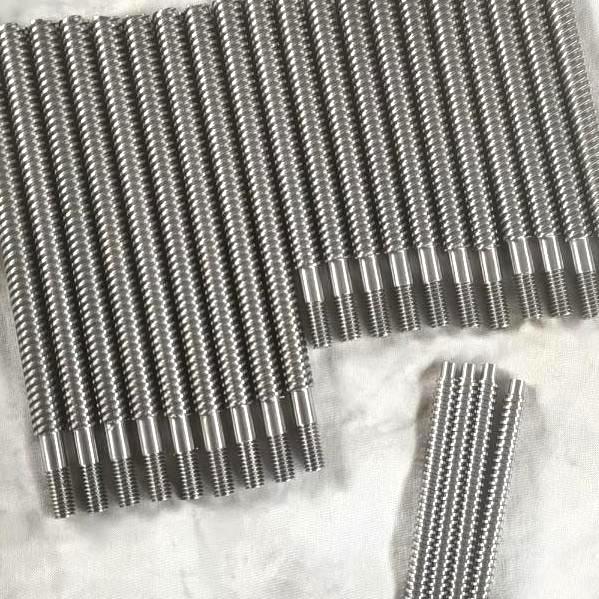

Tr6x10 Custom Precision LeadScrew with 6x10 Nut

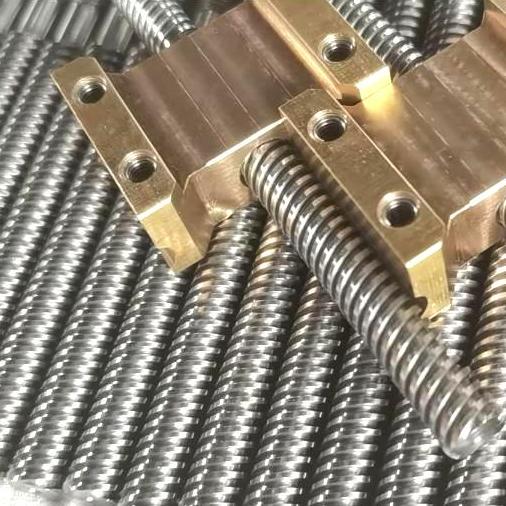

Tr6x10 Custom Precision Lead Screw with 6x10 Nuts

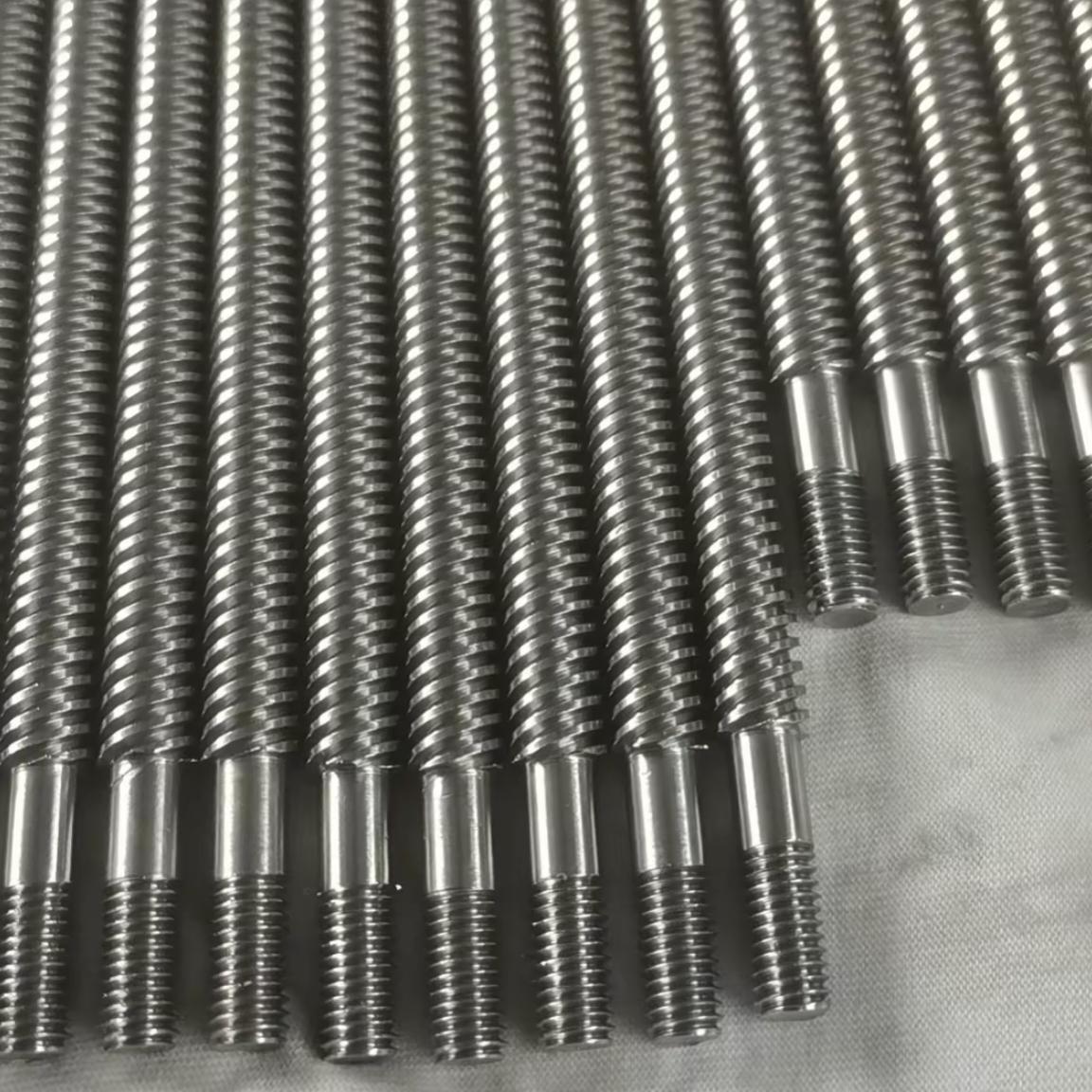

T6x10 Custom Precision Lead Screw with 6x10 Nut
