Available Screw Materials:S45C,SS303,SS304,SS316
Available Nut Materials:Brass,Bronze,POM,PEEK,Nylon,S45C,SS304
Customized Service:ACME screws and nuts will be custom-produced according to your requirements or drawings

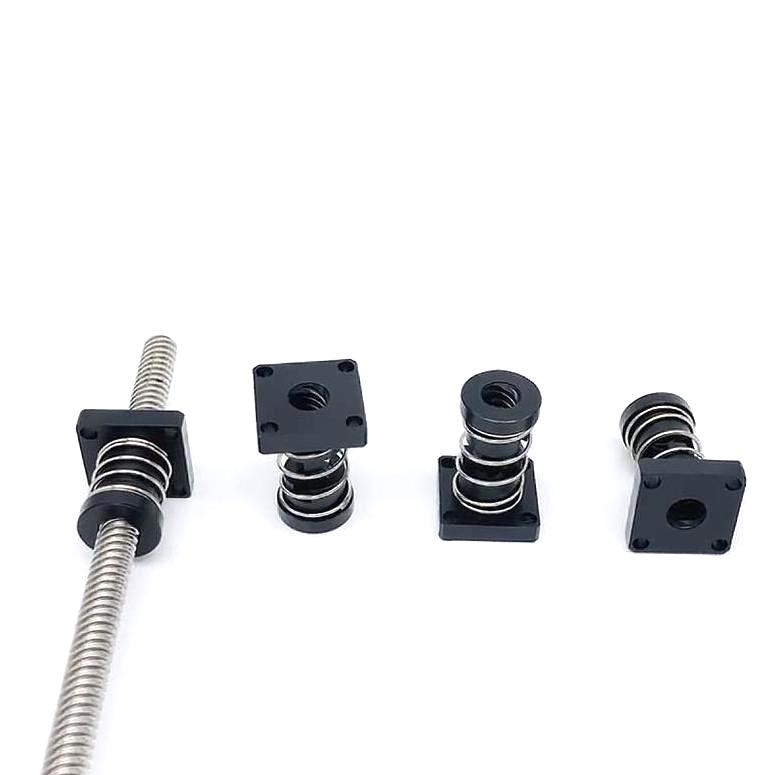

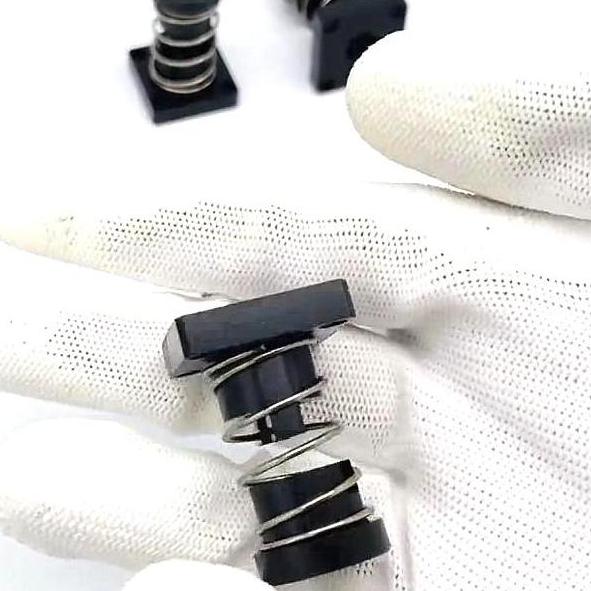

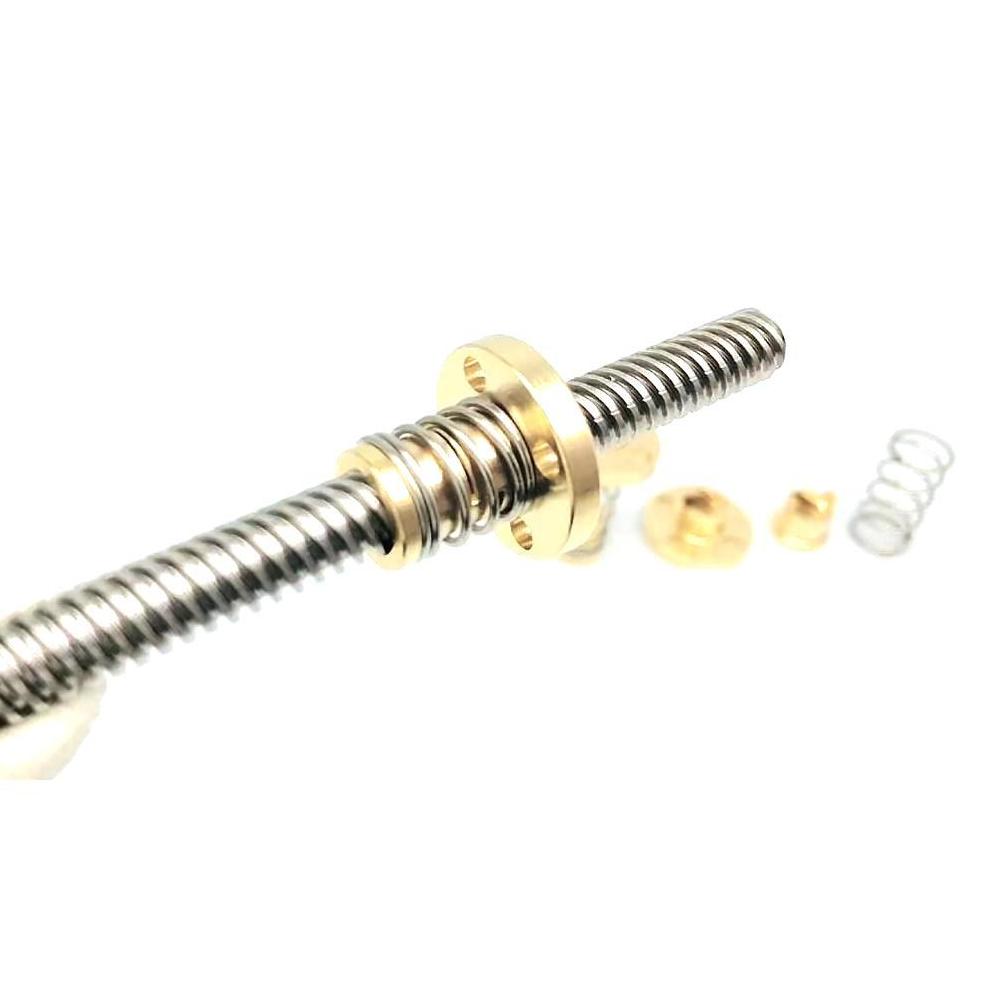

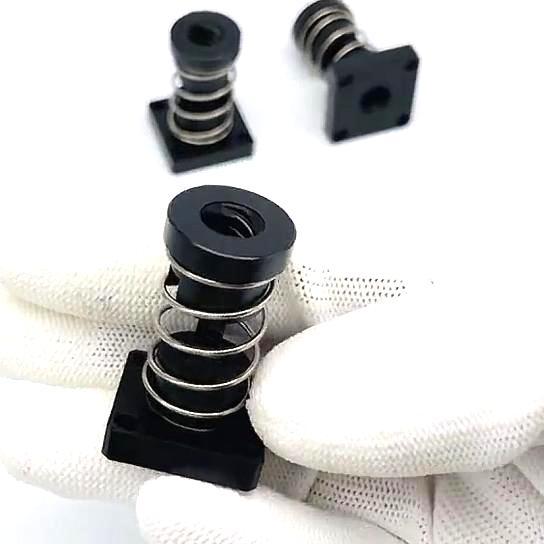

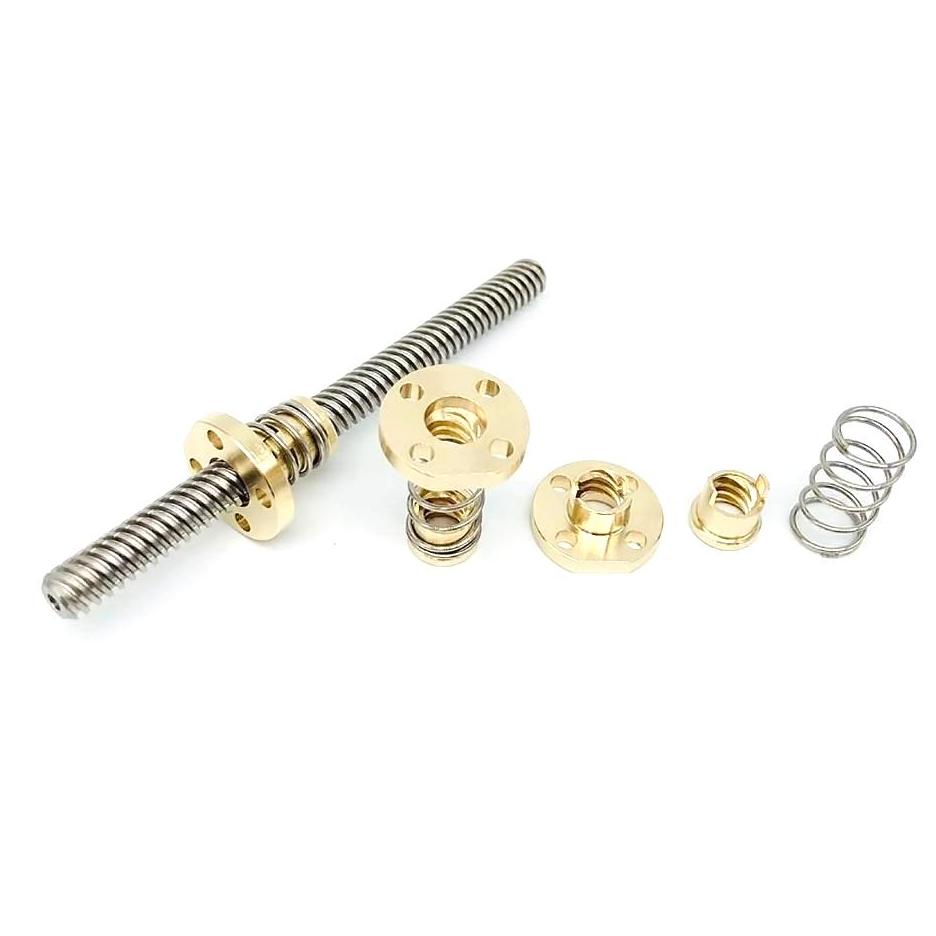

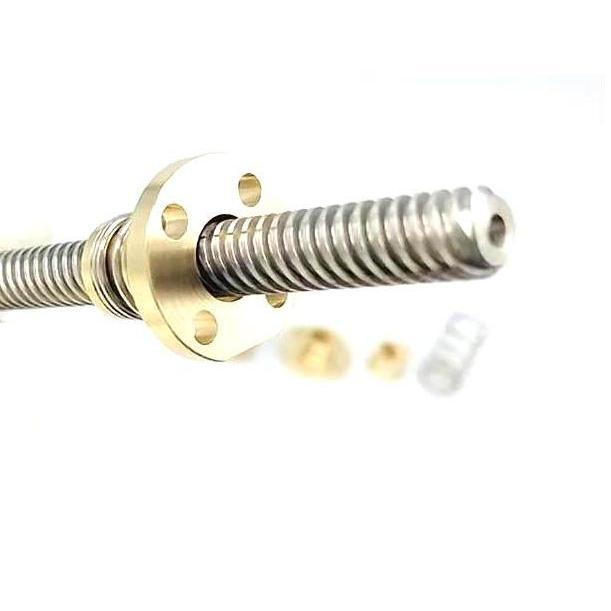

9.525×6.35 ACME Screw Rod with Anti-backlash Nut
This lead screw has a diameter of 9.525mm and a lead of 6.35mm.9.525×6.35 screw rod thread is an inch ACME thread with a thread angle of 29° and is fitted with an anti-backlash nut,which eliminates backlash and improves the accuracy of the linear motion system.
Diameter | 9.525mm |
Lead | 6.35mm |
| Pitch | 1.5875mm or 3.175mm |
| Number of starts | 4 or 2 |
Screw shaft end machining and length | According to your requirement or drawing |
Nut shape and dimension | Be customized according to your needs |
Thread direction | Right hand/left hand/bidirectional |
Screw material | S45C/ SS303/SS304/SS316 |
Nut material | Brass/Bronze/POM/PEEK/Nylon/Stainless steel/S45C |
Popular surface coatings | Teflon coating/nickel plated/tungsten disulfide/black chorme plated/molybdenum disulfide/DLC coating. |
Advantages of 9.525x6.35 lead screw:
Cost-Effective:20% cost savings.
Lead Time: Within 12 days.
Customized Service:Lead screws and nuts will be produced according to your requirements.Just send the requirements or drawings.
Zero Backlas:Anti-backlash nut eliminates backlash,ensuring precise motion control and repeatability.
Rolled Manufacturing Process:Cold-rolled threads create superior surface finish,minimizing friction and improving efficiency.
