Available Screw Materials:S45C,SS303,SS304,SS316

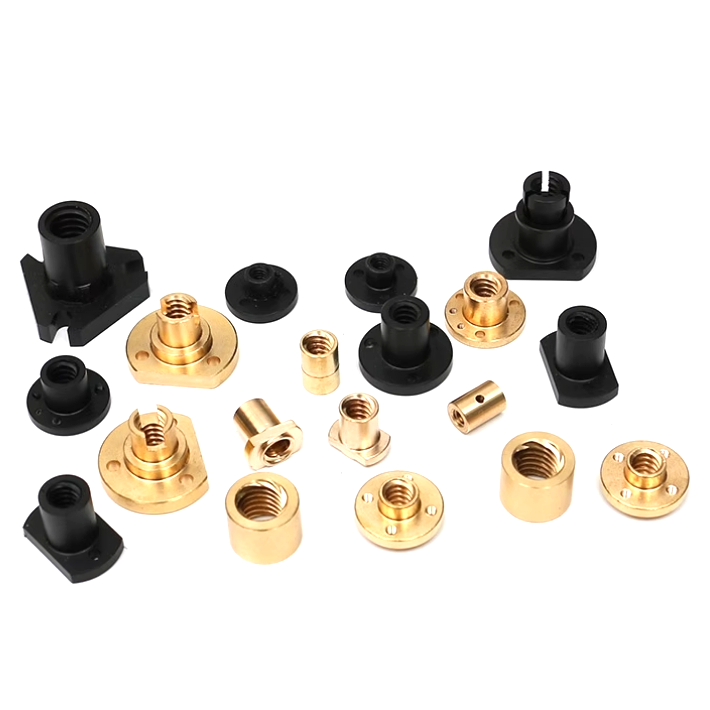

Available Nut Materials:Brass,Bronze,POM,PEEK,Nylon,S45C,SS304
Customized Service:Lead screws and nuts will be custom-produced according to your requirements or drawings

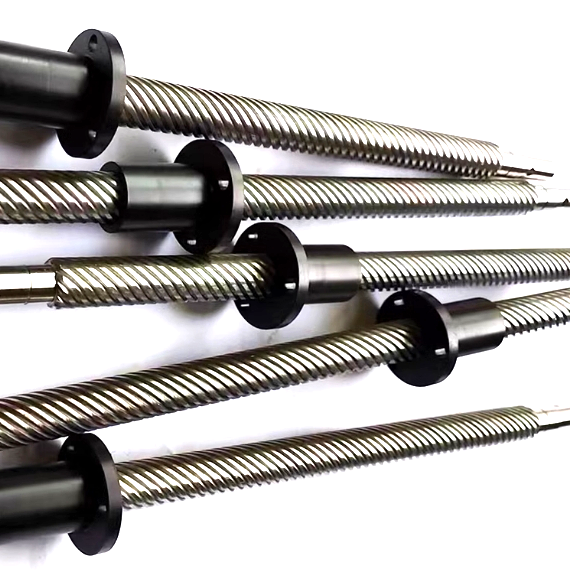

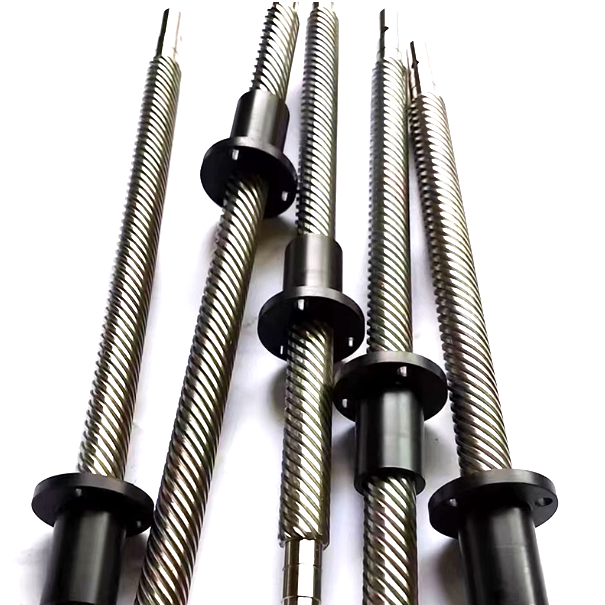

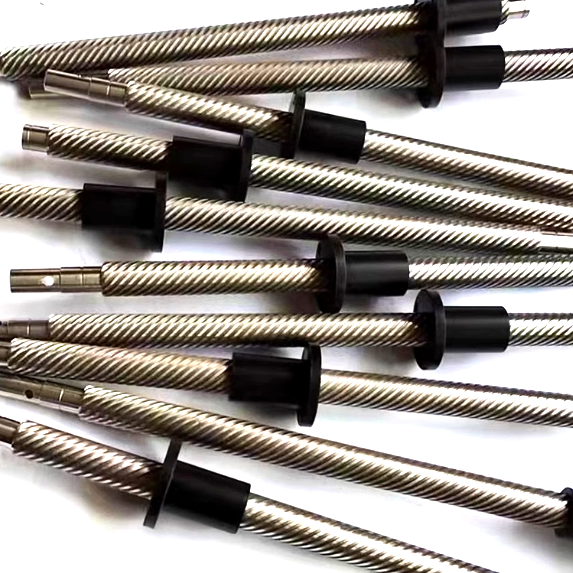

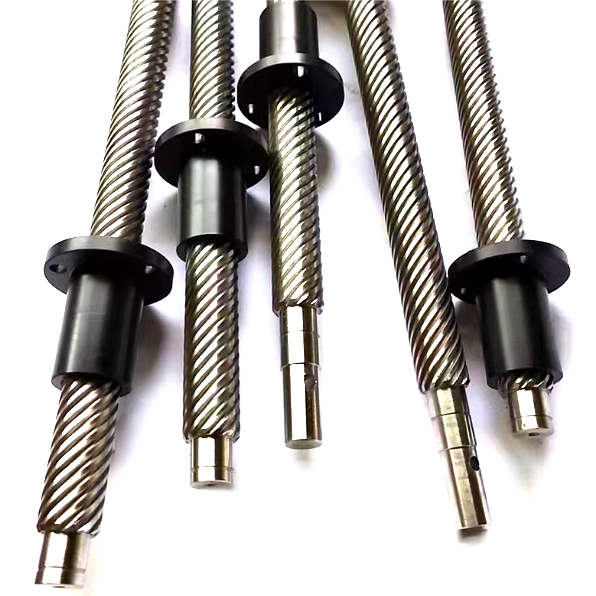

T10x50 Cold Rolled High Speed Lead Screw with Nut
This trapezoidal screw has a diameter of 10mm,a lead of 50mm and a pitch of 5mm.T10x50 lead screw is cold rolled with a perfect surface finish and the nut is made of POM or PEEK.The leadscrews run at high speeds and are extremely smooth and low-noise.
Diameter | 10mm |
Lead | 50mm |
Pitch | 5mm |
| Number of starts | 10 |
Thread direction | RH/LH/RL |
Screw material | S45C/ SS303/SS304/SS316 |
Nut material | Brass/Bronze/POM/PEEK/Nylon/Stainless steel/S45C |
Why Choose our T10x50 Lead Screw?
Cost-effective:35% cost savings.
Fast Delivery:Within 14 days.
Customized Service:The lead screw and nut will be manufactured according to your requirements.

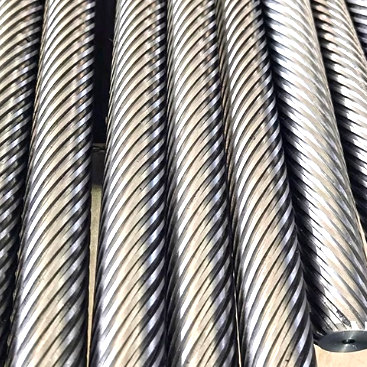

Precision Cold Rolling:Cold-rolled manufacturing enhances screw strength,dimensional accuracy,and surface durability.
Self-Lubricating Nut Materials:POM or PEEK nuts reduce maintenance needs with inherent lubricity and wear resistance.
Low Noise Performance:Optimized material pairing and surface finish enable quiet operation,even at high speeds.
T10x50 Cold Rolled High Speed Lead Screw with Nut
This trapezoidal screw has a diameter of 10mm,a lead of 50mm and a pitch of 5mm.T10x50 lead screw is cold rolled with a perfect surface finish and the nut is made of POM or PEEK.The leadscrews run at high speeds and are extremely smooth and low-noise.
Diameter | 10mm |
Lead | 50mm |
Pitch | 5mm |
| Number of starts | 10 |
Thread direction | RH/LH/RL |
Screw material | S45C/ SS303/SS304/SS316 |
Nut material | Brass/Bronze/POM/PEEK/Nylon/Stainless steel/S45C |
Why Choose our T10x50 Lead Screw?
Cost-effective:35% cost savings.
Fast Delivery:Within 14 days.
Customized Service:The lead screw and nut will be manufactured according to your requirements.
Precision Cold Rolling:Cold-rolled manufacturing enhances screw strength,dimensional accuracy,and surface durability.
Self-Lubricating Nut Materials:POM or PEEK nuts reduce maintenance needs with inherent lubricity and wear resistance.
Low Noise Performance:Optimized material pairing and surface finish enable quiet operation,even at high speeds.
