Available Screw Materials:S45C,SS303,SS304,SS316
Available Nut Materials:Brass,Bronze,POM,PEEK,Nylon,S45C,SS304
Customized Service:T8x15 trapezoidal screw and nut will be produced according to your requirements or drawings

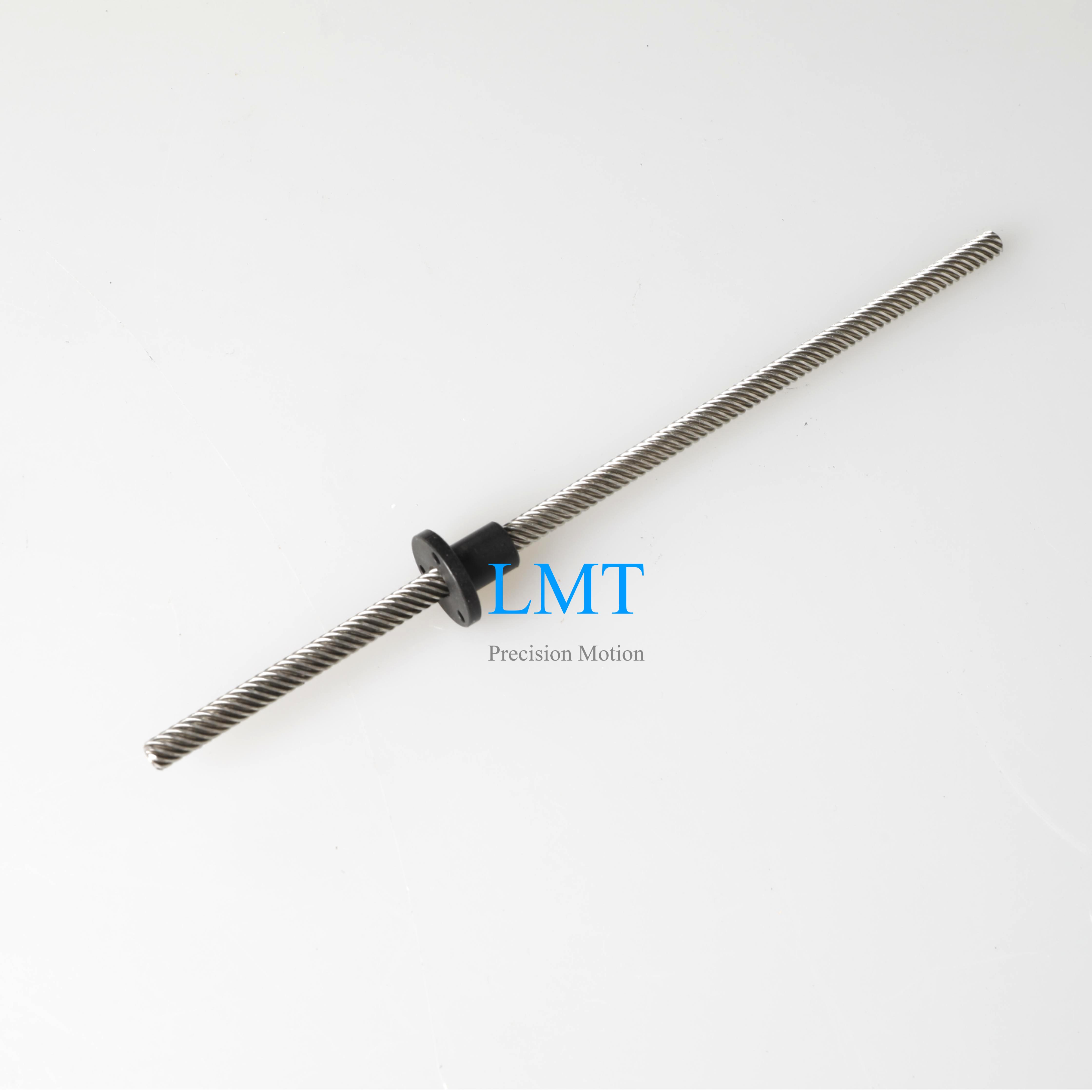

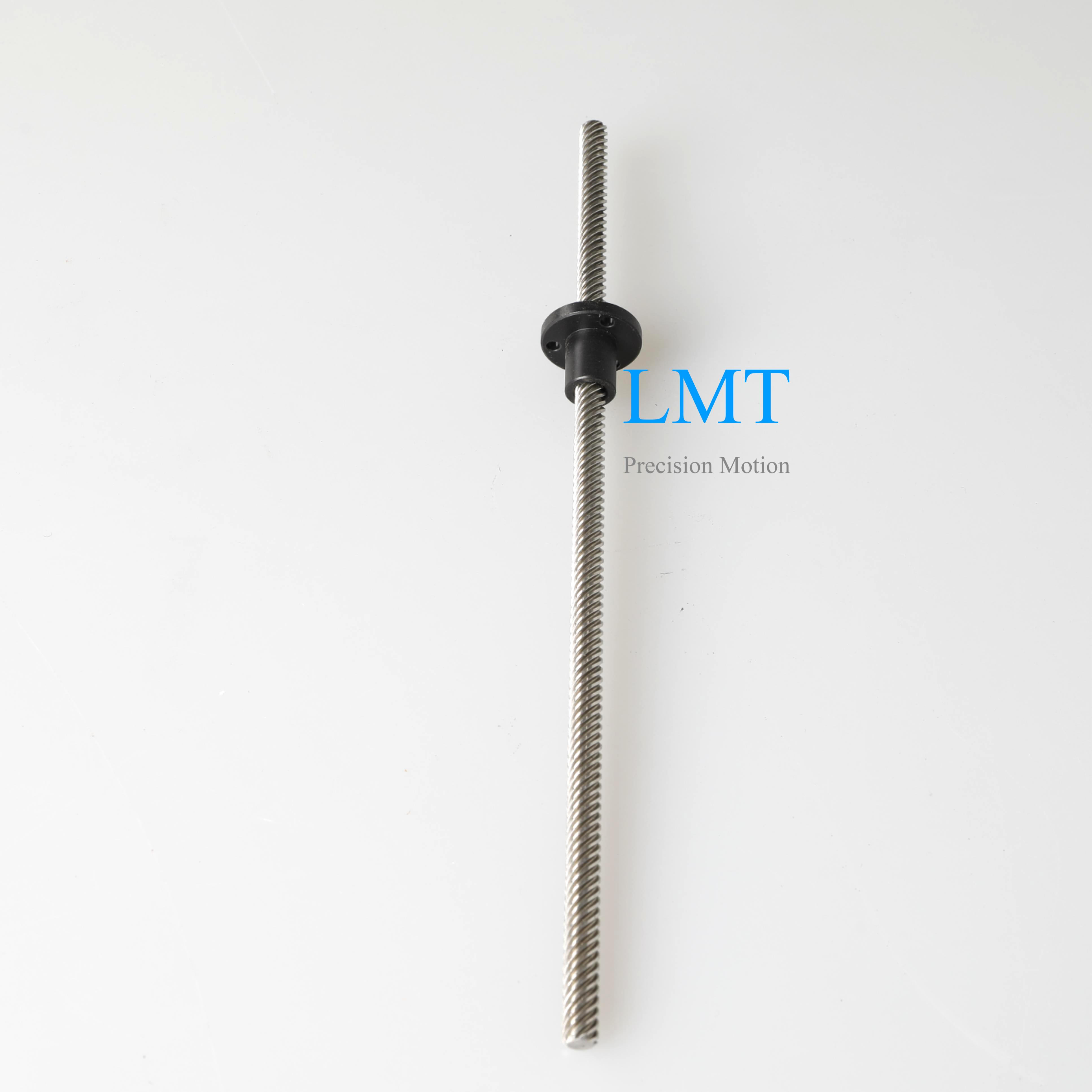

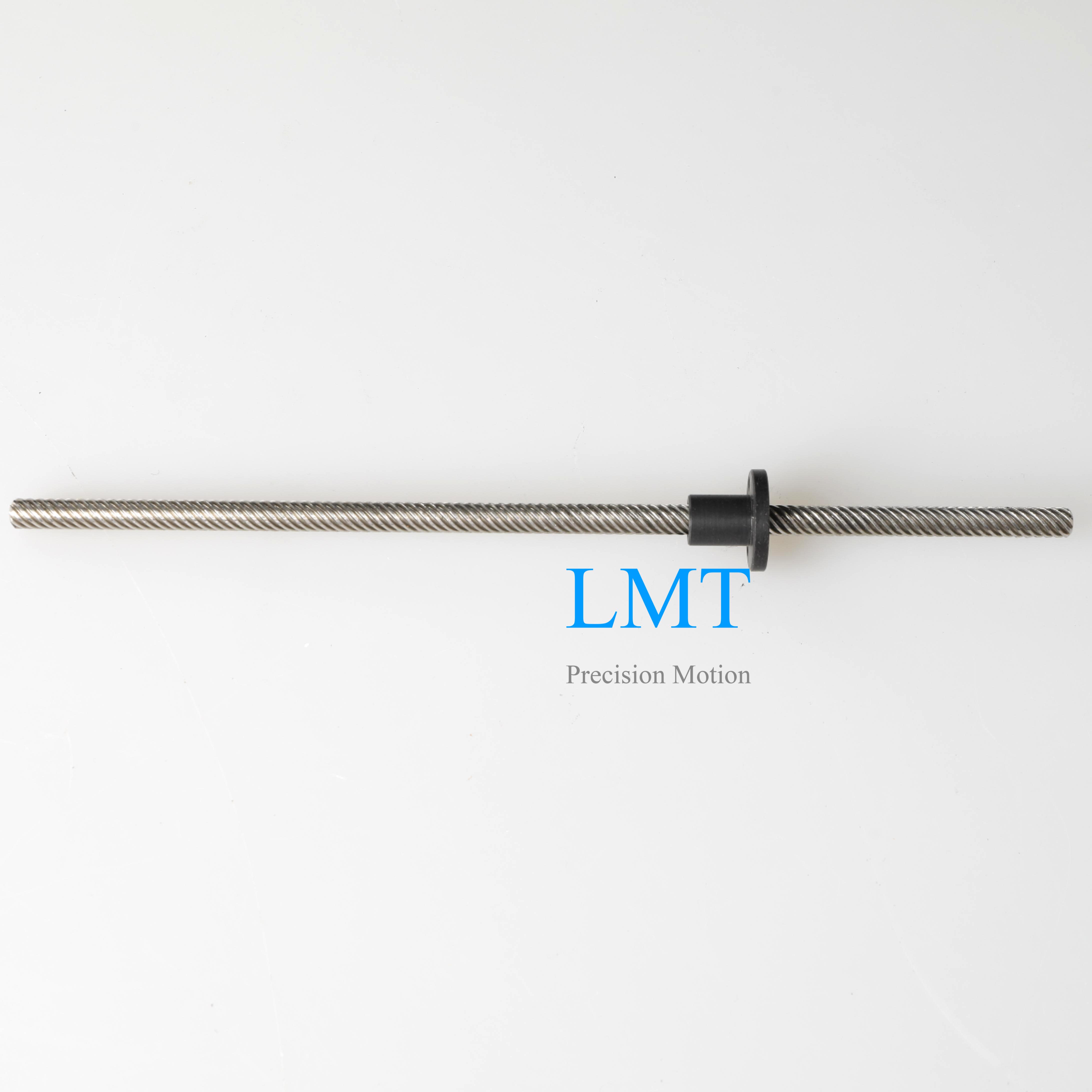

Tr8x15 ROHS Compliant Rolled Smooth Lead Screw with Nut:Featuring a 8mm diameter and a 15mm lead,it provides an optimal balance between speed and force for a wide range of automation and positioning applications.Crafted using a precision rolling process,the trapezoidal screw thread boasts superior surface hardness,enhanced wear resistance,and consistent accuracy.This results in a remarkably smooth operation with reduced friction and quieter running,ensuring long service life and minimal maintenance.
Specification:
Diameter | 8mm |
Lead | 15mm |
Pitch | 2.5mm |
| Number of starts | 6 |
Thread direction | RH/LH/RL |
Screw material | S45C/ SS303/SS304/SS316 |
Nut material | Brass/Bronze/POM/PEEK/Nylon/Stainless steel/S45C |
Tr8x15 Lead Screw and Nut Advantages:
MOQ: 1 pc.
Fast Delivery:Within 12 days.
Cost-effective:15% ~40% cost savings.
All lead screws and nuts are ROHS and CE compliant.
Customized Service:The T8x15 lead screw and nut will be manufactured according to your requirements.
Superior Surface & Precision:Advanced cold-rolling technology creates an ultra-smooth,hardened surface for low friction,consistent performance,and extended lifespan.
