LMKS15B
LMT
| Quantity: | |||||||||
|---|---|---|---|---|---|---|---|---|---|
| |||||||||

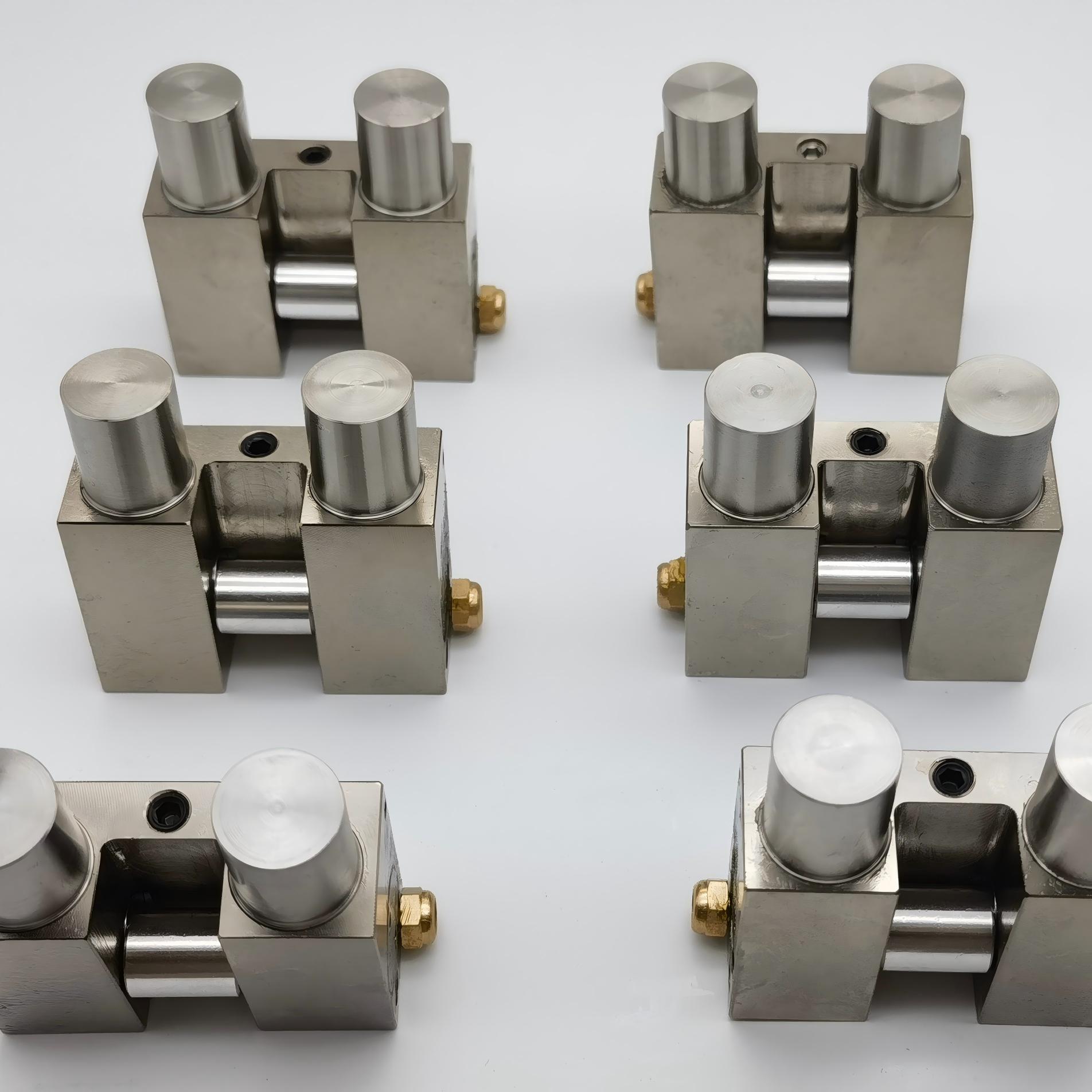

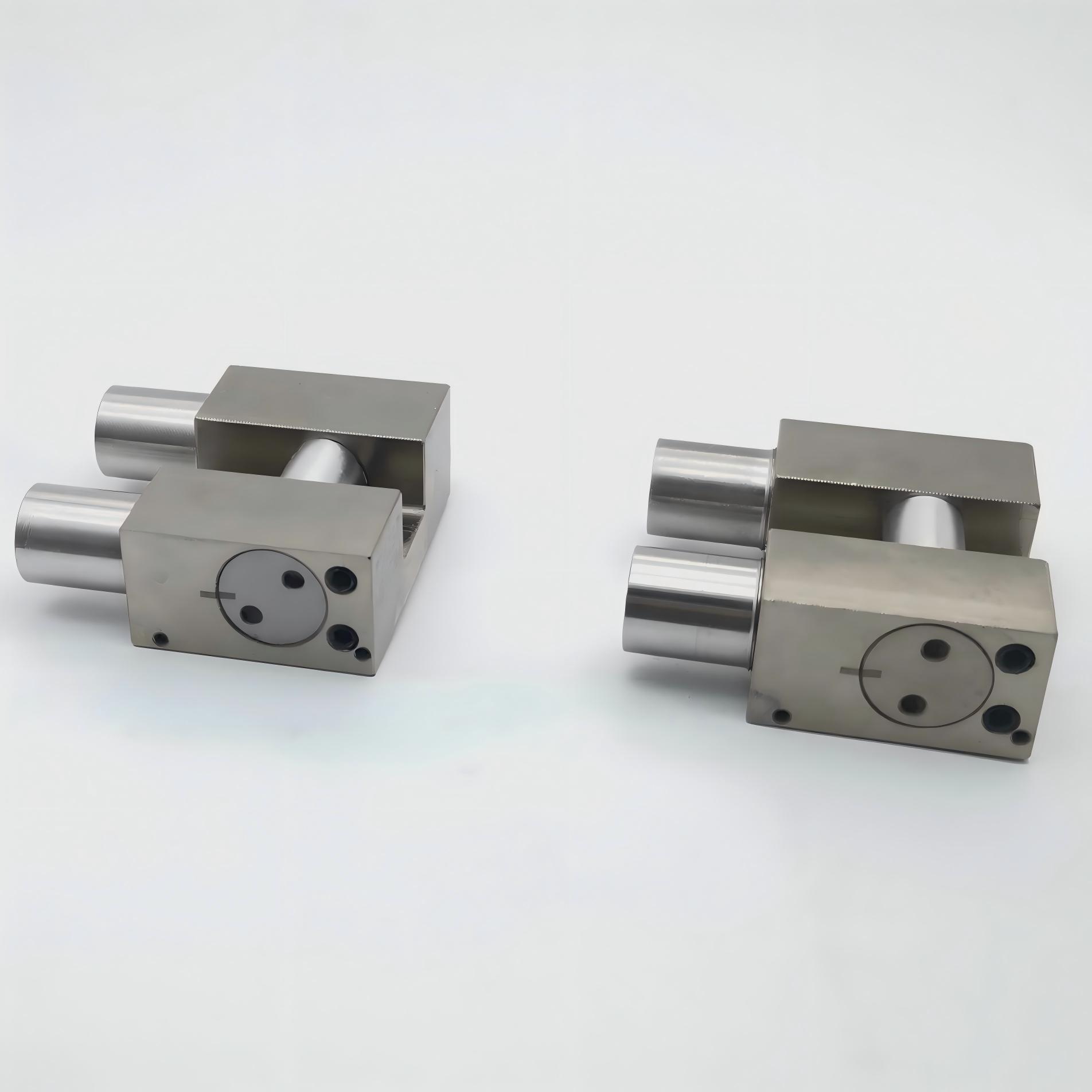

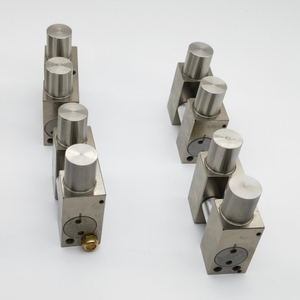

This normally closed pneumatic clamping device remains in a locked state when no air supply is provided,ensuring immediate braking action during power outages or emergency stops.Specifically engineered for compatibility with 15mm linear guide rails,such as HIWIN linear guides and other equivalent systems (e.g.,THK,TBI,or NSK),this clamp brake delivers reliable holding force to secure the motion platform firmly in place.Its robust construction and fail-safe design make it ideal for CNC machinery,robotic arms,automated assembly lines,and other equipment requiring precise positional control and safety compliance.
| Clamp types | Pneumatic normally closed |
| Linear rail size | 15mm |
| Rated holding force(N) | 400/1050N(standard) |
| Open air pressure | 0.55/0.4/0.3Mpa |
| Clamping service life | 5 million times |
| Main body material | 42CrMo, sandblasted electroless nickel coating |

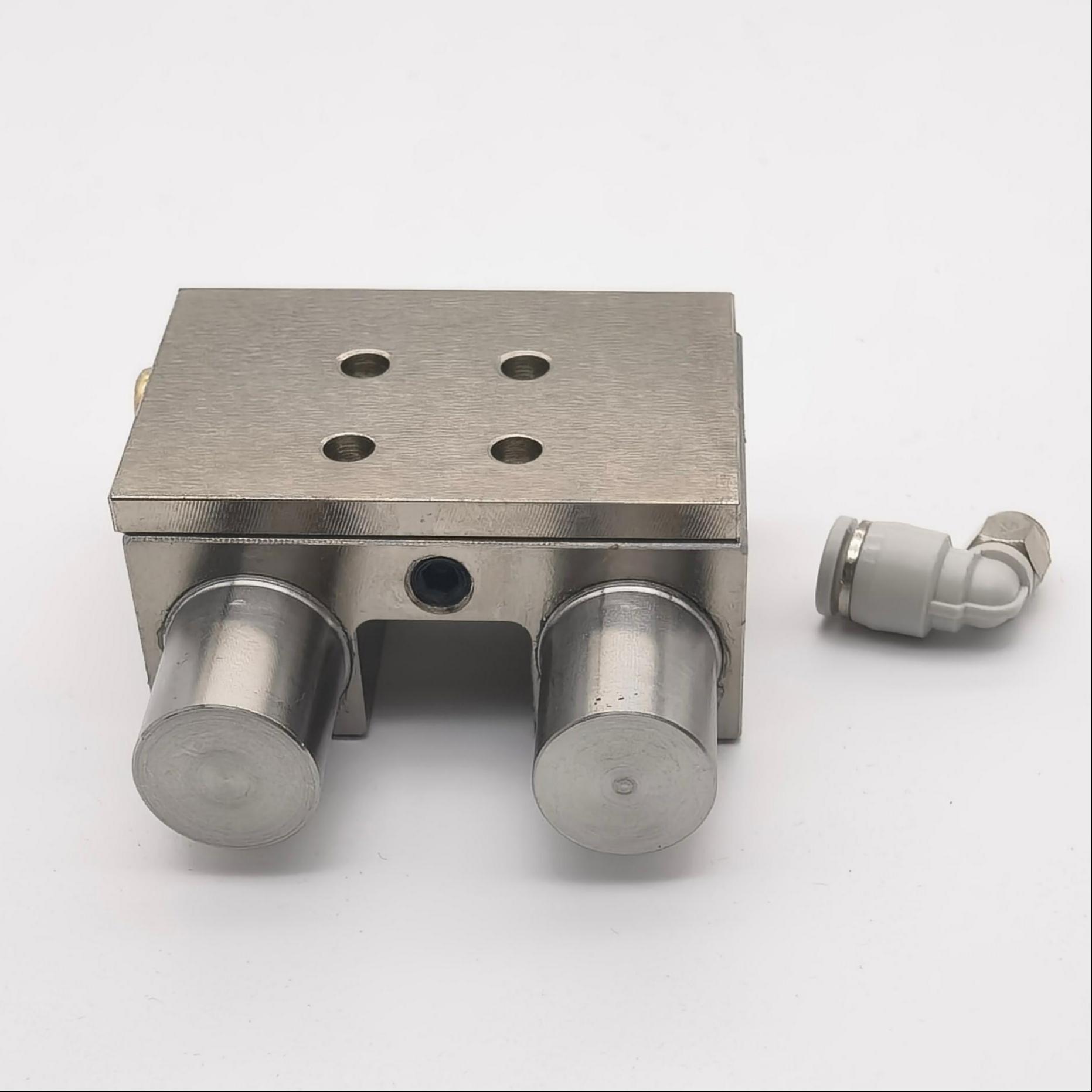

Spacer plate | Available(a spacer plate might have to be ordered as height compensation, depending on the height of the rail carriage) |
| Operating temperature | 0 °C~70 °C |
| Applicable guideway brand | HIWIN/THK/PMI/WON/NSK/NB/ABBA and so on |
| 2D and 3D drawing | Available |
-When there is air pressure,the linear rail clamp is released;when there is no air pressure,the linear guide is clamped by spring force.
-Depending on the holding force requirements of the clamping mechanism,standard connection or pressurized connection can be used.
-Lead Time:Large stock inventory.
-Cost-Effective: 50%~70% cost savings.
-High Durability:Up to 5 million static clamping cycles.
-Broad Range of Products:For all common profile rail guides.
-Customizable Design:Tailored to meet specific application requirements.
-Superior Material:All clamping elements are made from premium raw materials with material test certificates.
-Machining Precision:Instead of ordinary milling,we adopt precision grinding to ensure much higher accuracy.
-Quality Control:Every clamp will go through full performance testing and inspection before shipment to ensure 100% qualified products.
