LMKS30B
| Quantity: | |||||||||
|---|---|---|---|---|---|---|---|---|---|
| |||||||||

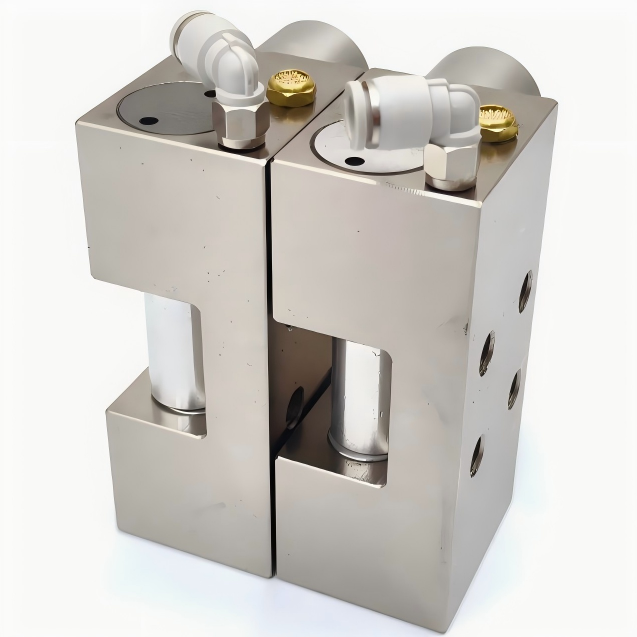

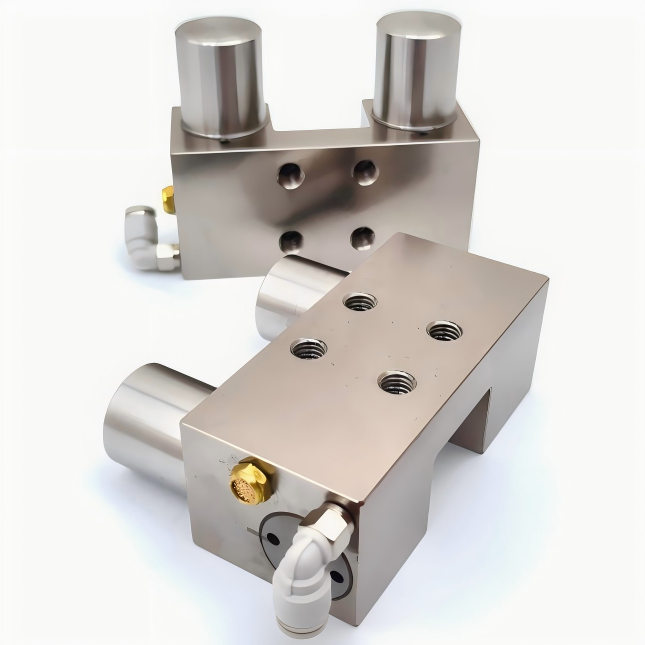

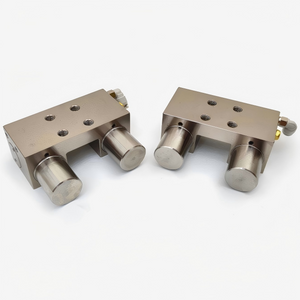

30mm Linear Rail Pneumatic Normally Close Clamp Specification:
| Clamp types | Pneumatic normally close |
| Linear rail sizes | 30mm |
| Standard type rated holding force(N) | Standard connection 1050N,pressurized connection 2600N |
| Open air pressure | 0.55/0.4/0.3Mpa |
| Clamping service life | 5 million times |
| Main body material | 42CrMo, sandblasted electroless nickel coating |
Spacer plate | Available(a spacer plate might have to be ordered as height compensation, depending on the height of the rail carriage) |
| Operating temperature | 0 °~70 °C |
| Applicable linear guideway brand | HIWIN/THK/PMI/WON/NSK/NB/ABBA/IKO and so on |
| 2D and 3D drawing | Available |
-When there is air pressure,the linear rail clamp is released;when there is no air pressure,the linear guide is clamped by spring force.
-Depending on the holding force requirements of the clamping mechanism,standard connection or pressurized connection can be used.
LMT Linear Guide Clamping Element Key Advantages:
-Lead Time:Large stock inventory.
-Cost-Effective: 35%~50% cost savings.
-High Durability:Up to 5 million static clamping cycles.
-Broad Range of Products:For all common profile rail guides.
-Interchangeable:Completely replace the Zimmer or NBK brand MKS series linear guide clamp.
-Customizable Design:Tailored to meet specific application requirements.
-Machining Precision:Instead of ordinary milling,we adopt precision grinding to ensure much higher accuracy.
-Corrosion Resistance:We apply electroless sandblasting nickel plating for excellent anti-rust,anti-corrosion performance and premium appearance.(Note:the contact surface material SKD11,electroless nickel plating)
-Superior Material:We use 42CrMo alloy steel for the clamp's main body,while most other Chinese suppliers use C45 steel.Our clamps offer higher strength,better wear resistance and longer service life.
-Quality Control:Every clamp will go through full performance testing and inspection before shipment to ensure 100% qualified products.
