Available Screw Materials:S45C,SS303,SS304,SS316
Available Nut Materials:Brass,Bronze,POM,PEEK,Nylon,S45C,SS304
Customized Service:ACME screws and nuts will be custom-produced according to your requirements or drawings

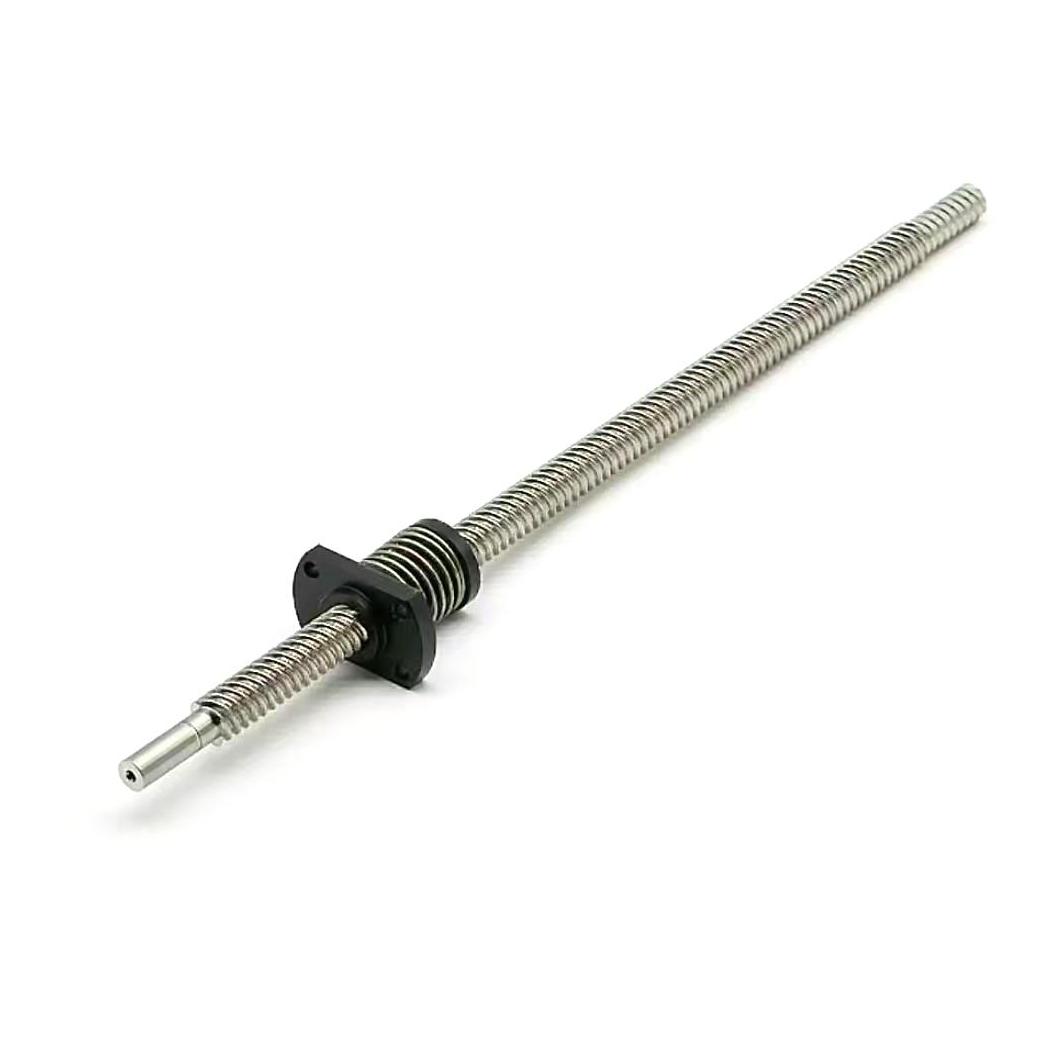

6.35x6.35 Diameter 6.35mm Lead 6.35mm Rolled ACME Screw with Nut
This cold-rolled ACME threaded screw features a 29° tooth angle,a 6.35 mm diameter,and a 6.35 mm lead.The cold rolling process ensures a superior surface finish and enables extremely smooth operation.
Specification:
Diameter | 6.35mm |
Lead | 6.35mm |
| Pitch | 1.5875mm |
| Number of starts | 4 |
Screw shaft end machining and length | According to your requirement or drawing |
Nut shape and dimension | Be customized according to your needs |
Thread direction | Right hand/left hand/bidirectional |
Screw material | S45C/ SS303/SS304/SS316 |
Nut material | Brass/Bronze/POM/PEEK/Nylon/Stainless steel/S45C |
Popular surface coatings | Teflon coating/nickel plated/tungsten disulfide/black chorme plated/molybdenum disulfide/DLC coating. |
Advantages of 6.35x6.35 ACME Screw and Nut:
Cost-Effective:30% cost savings.
Lead Time: Within 14 days.
Lightweight Design:Compact 6.35mm diameter structure for space-constrained equipment.
Customized Service:Lead screws and nuts will be produced according to your requirements.Just send the requirements or drawings.
Contact our sales to customize your 6.35x6.35 ACME rod and nut!
6.35x6.35 Diameter 6.35mm Lead 6.35mm Rolled ACME Screw with Nut
This cold-rolled ACME threaded screw features a 29° tooth angle,a 6.35 mm diameter,and a 6.35 mm lead.The cold rolling process ensures a superior surface finish and enables extremely smooth operation.
Specification:
Diameter | 6.35mm |
Lead | 6.35mm |
| Pitch | 1.5875mm |
| Number of starts | 4 |
Screw shaft end machining and length | According to your requirement or drawing |
Nut shape and dimension | Be customized according to your needs |
Thread direction | Right hand/left hand/bidirectional |
Screw material | S45C/ SS303/SS304/SS316 |
Nut material | Brass/Bronze/POM/PEEK/Nylon/Stainless steel/S45C |
Popular surface coatings | Teflon coating/nickel plated/tungsten disulfide/black chorme plated/molybdenum disulfide/DLC coating. |
Advantages of 6.35x6.35 ACME Screw and Nut:
Cost-Effective:30% cost savings.
Lead Time: Within 14 days.
Lightweight Design:Compact 6.35mm diameter structure for space-constrained equipment.
Customized Service:Lead screws and nuts will be produced according to your requirements.Just send the requirements or drawings.
Contact our sales to customize your 6.35x6.35 ACME rod and nut!
