LMKS30B

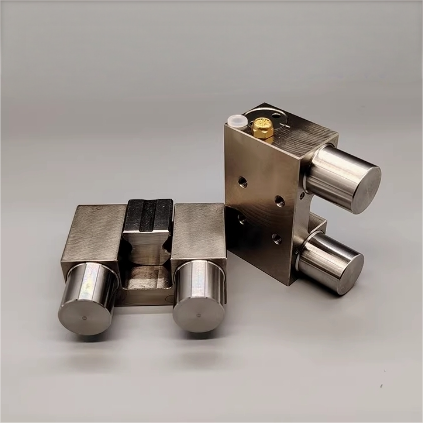

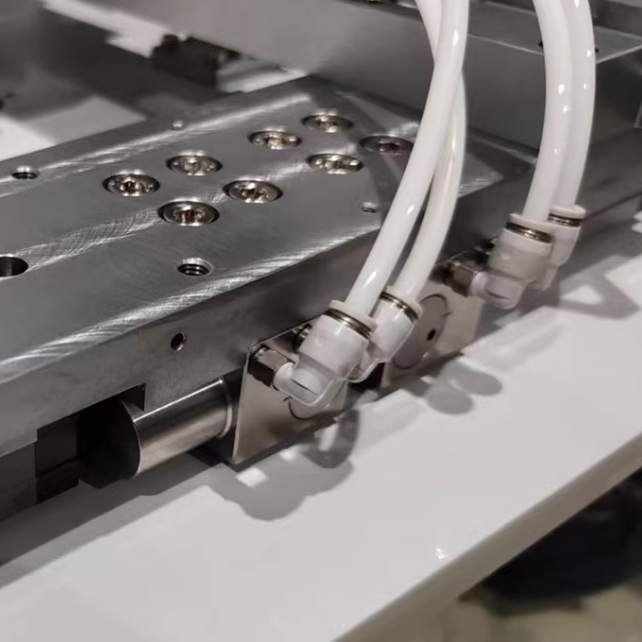

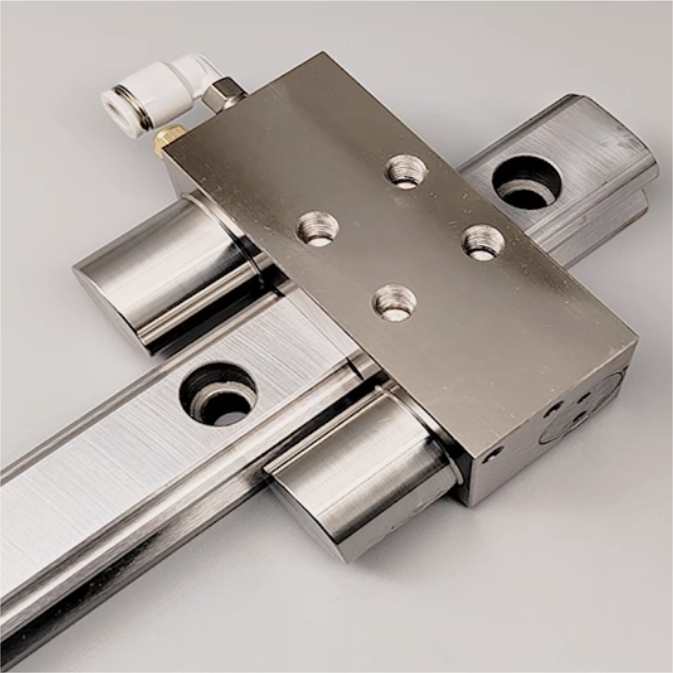

High Positioning Accuracy Pneumatic Clamp Brake for 30mm Linear Guide
Designed specifically for 30mm linear guide rails,including HIWIN,THK,TBI,and other compatible linear motion systems,this pneumatic clamp brake ensures micron-level positional accuracy during locking,making it ideal for high-precision CNC machining,semiconductor manufacturing,robotic positioning,and medical equipment.
| Clamp Types | Pneumatic |
| Applicable guideway sizes | 30mm |
| Rated holding force(N) | 1050/2600N(standard) |
| Open air pressure | 0.55/0.4/0.3Mpa |
| Clamping service life | 5 million times |
| Material | Bearing steel with nickel-plated surface coating |
Spacer plate | Available(a spacer plate might have to be ordered as height compensation, depending on the height of the rail carriage) |
| Operating temperature | 0 °~70 °C |
| Applicable guideway brand | HIWIN/THK/PMI/WON/NSK/NB/ABBA and so on |
| 2D and 3D drawing | Available |
Advantages of the linear guide clamp:
• Small size with incredible holding force
• No relative movement for the workpiece
• No active clamping of forces on the guide carriage
• Controllable and adjustable
• High positioning accuracy
• High rigidity and long cycle-life achieved
• Easy to install
• Custom models are available upon request
Download Pneumatic Normally Closed Rail Clamp Size Chart.png
Contact our sales to get a quote!
