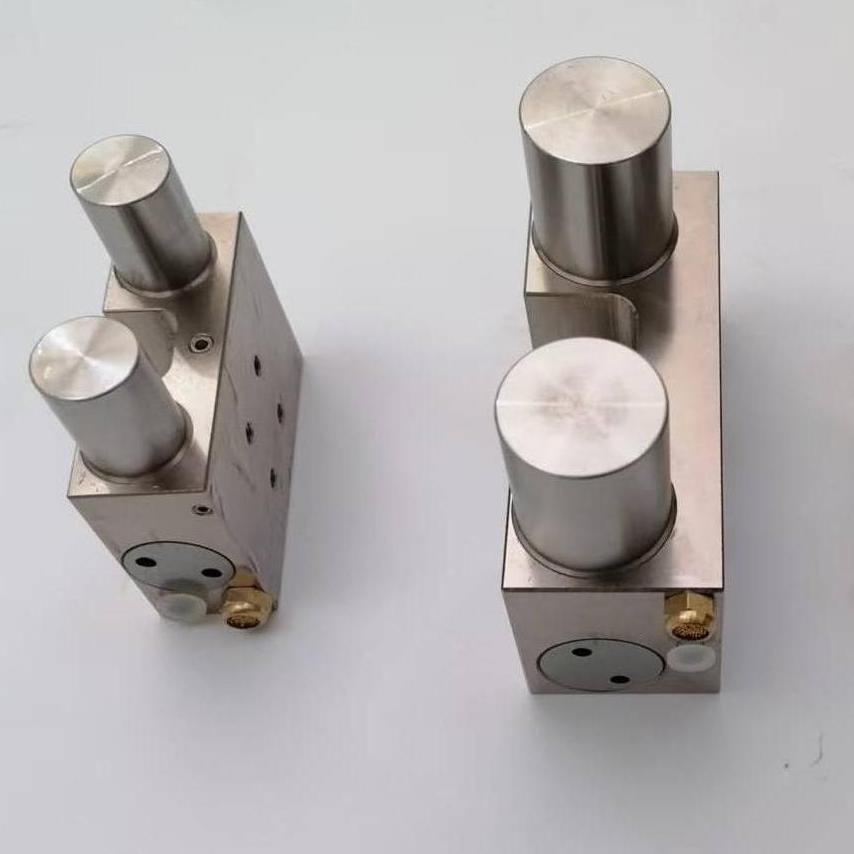

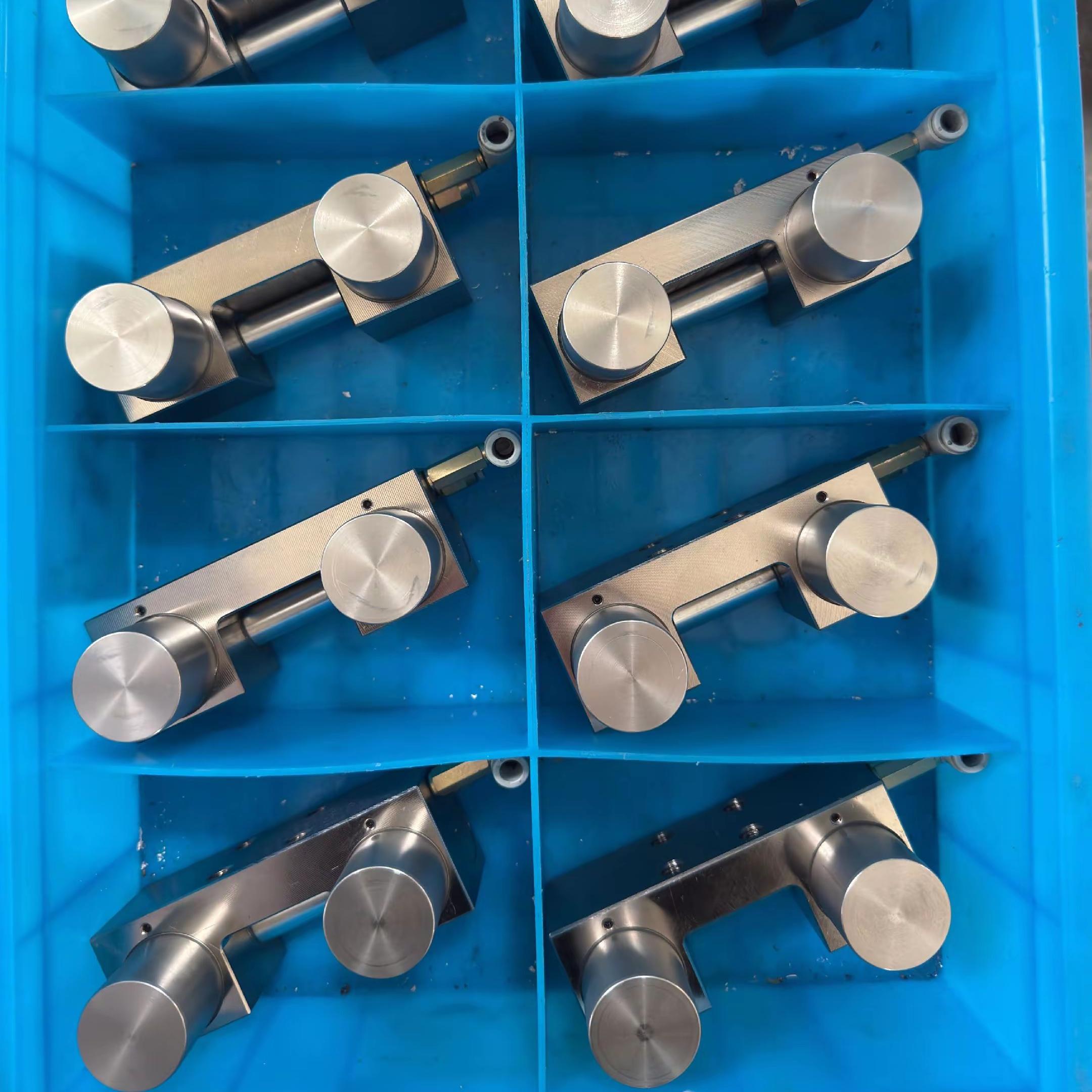

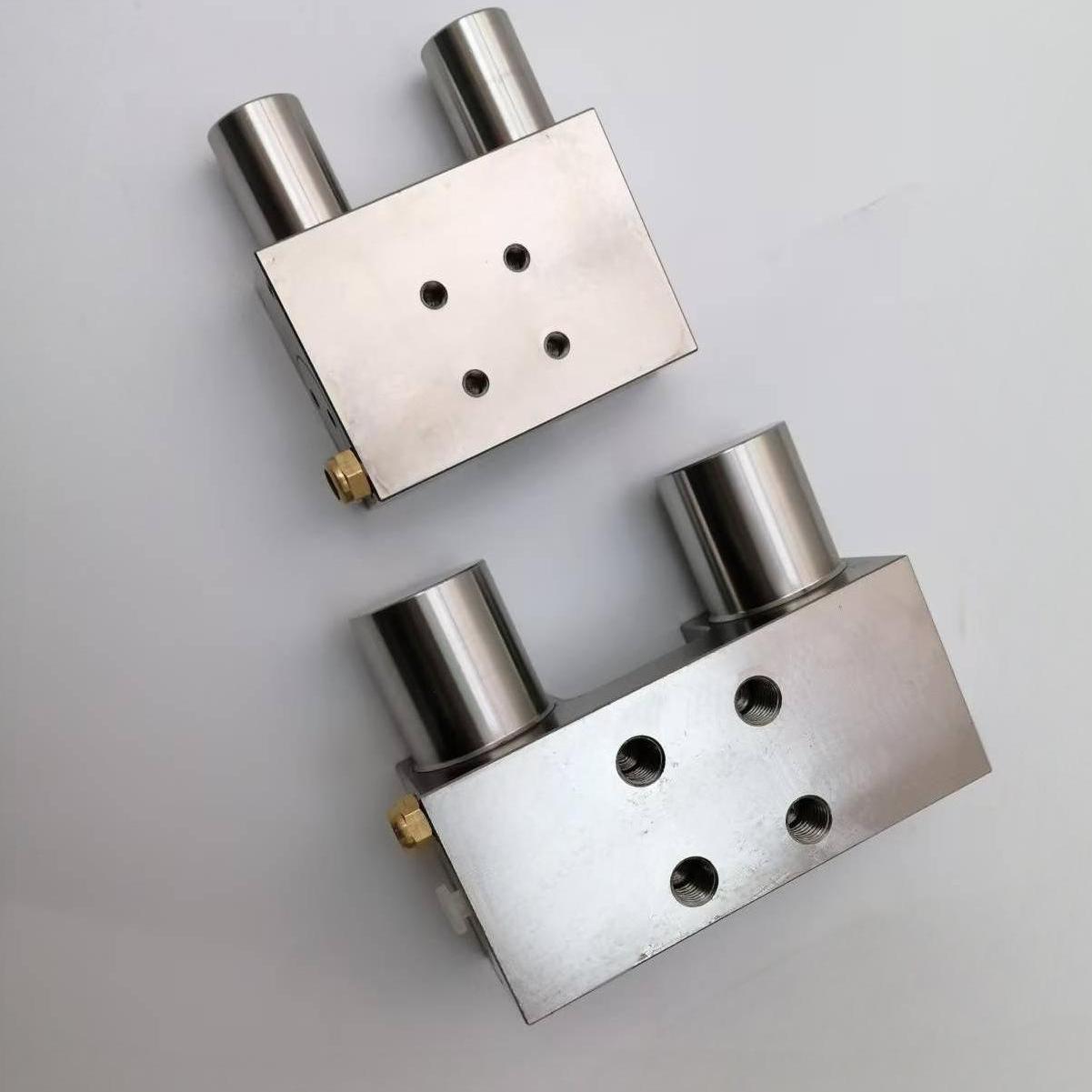

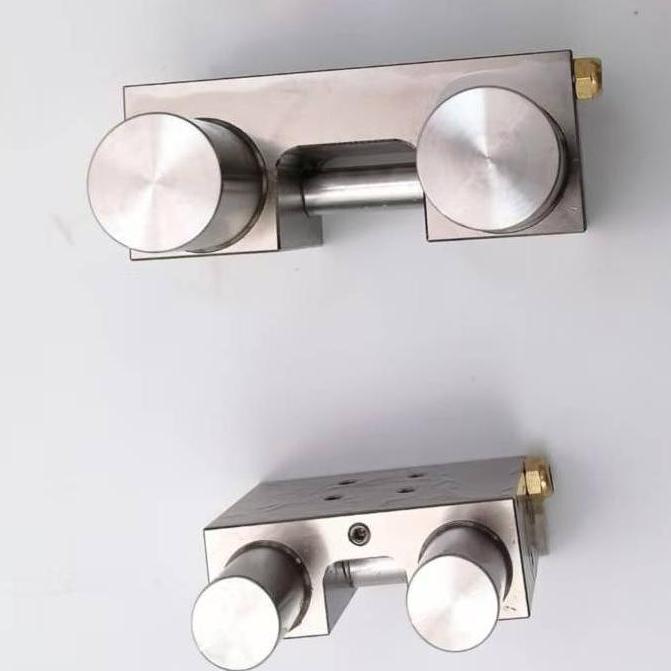

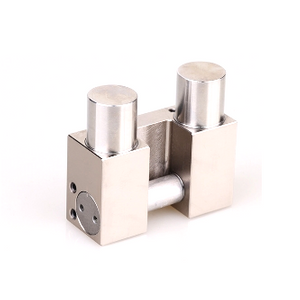

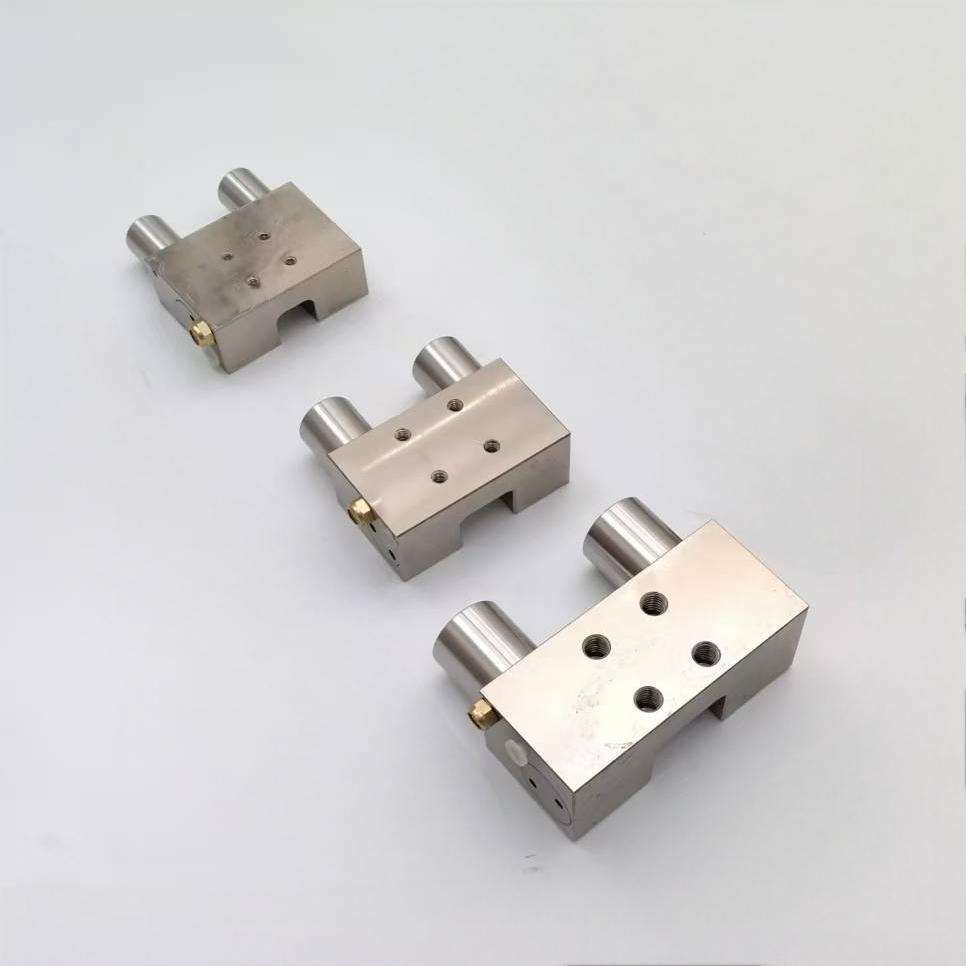

Pneumatic Normally Close Clamp Braking for 15mm Linear Guide Rail
This clamp braking is clamped when not supplied with air and unclamped when vented and is suitable for most 15mm size linear guides.Our clamp is affordable and is available from stock in large quantities.
Specification:
| Clamp Types | Pneumatic normally close |
| Applicable guideway sizes | 15mm |
| Rated holding force(N) | 400/1050N(standard) |
| Open air pressure | 0.55/0.4/0.3Mpa |
| Clamping service life | 5 million times |
| Material | Bearing steel with nickel-plated surface coating |

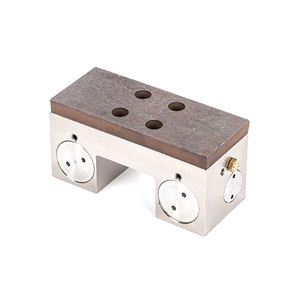

Spacer plate | Available(a spacer plate might have to be ordered as height compensation, depending on the height of the rail carriage) |
| Operating temperature | 0 °~70 °C |
| Applicable guideway brand | HIWIN/THK/PMI/WON/NSK/NB/ABBA and so on |
| 2D and 3D drawing | Available |
Linear Guide Rail Clamp Braking Key Advantages:
Lead time:Within 3 days.
Cost-effective: 40% cost savings.
High Durability:Up to 5 million static clamping cycles
Broad Range of Products:For all common profile rail guides
Completely replace the Zimmer brand MKS series linear guide clamp.
Customizable Design:Tailored to meet specific application requirements,including force adjustments,mounting configurations,and compatibility with various 15mm rail profiles.
Pneumatic Normally Close Clamp Video
