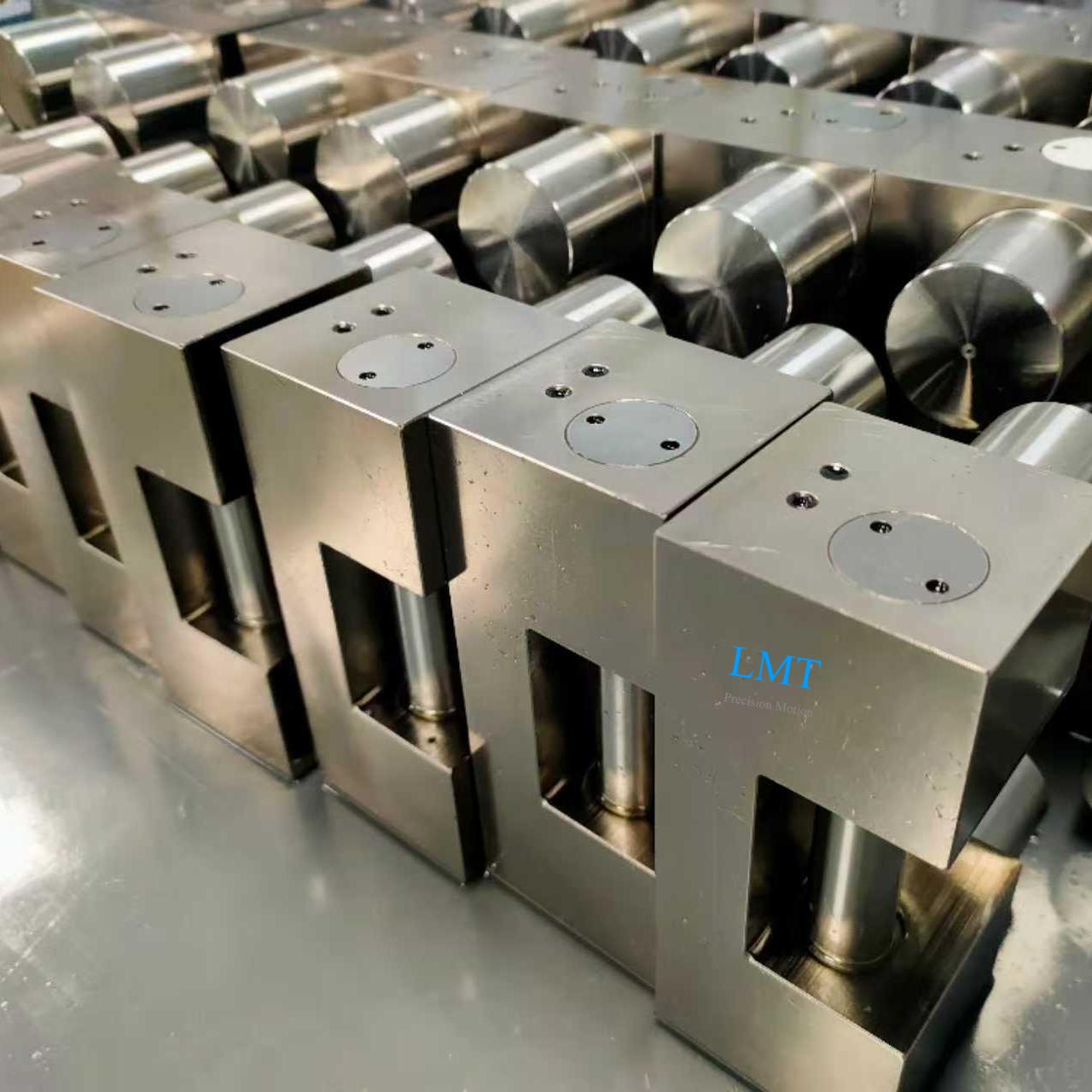

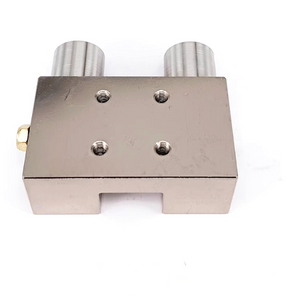

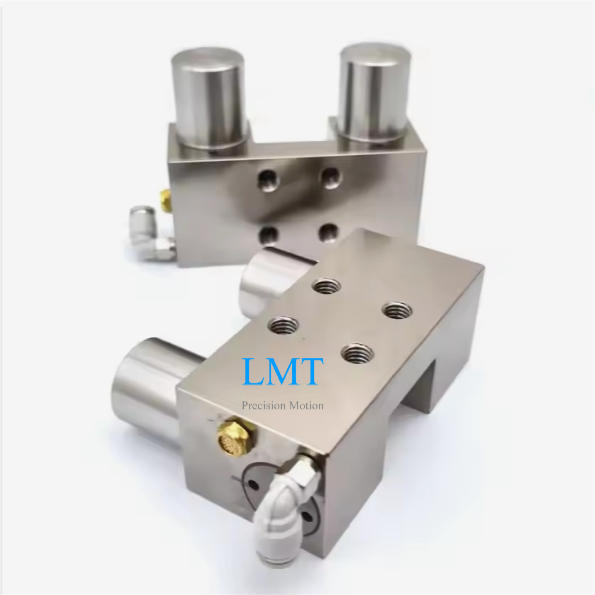

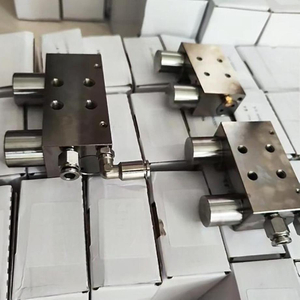

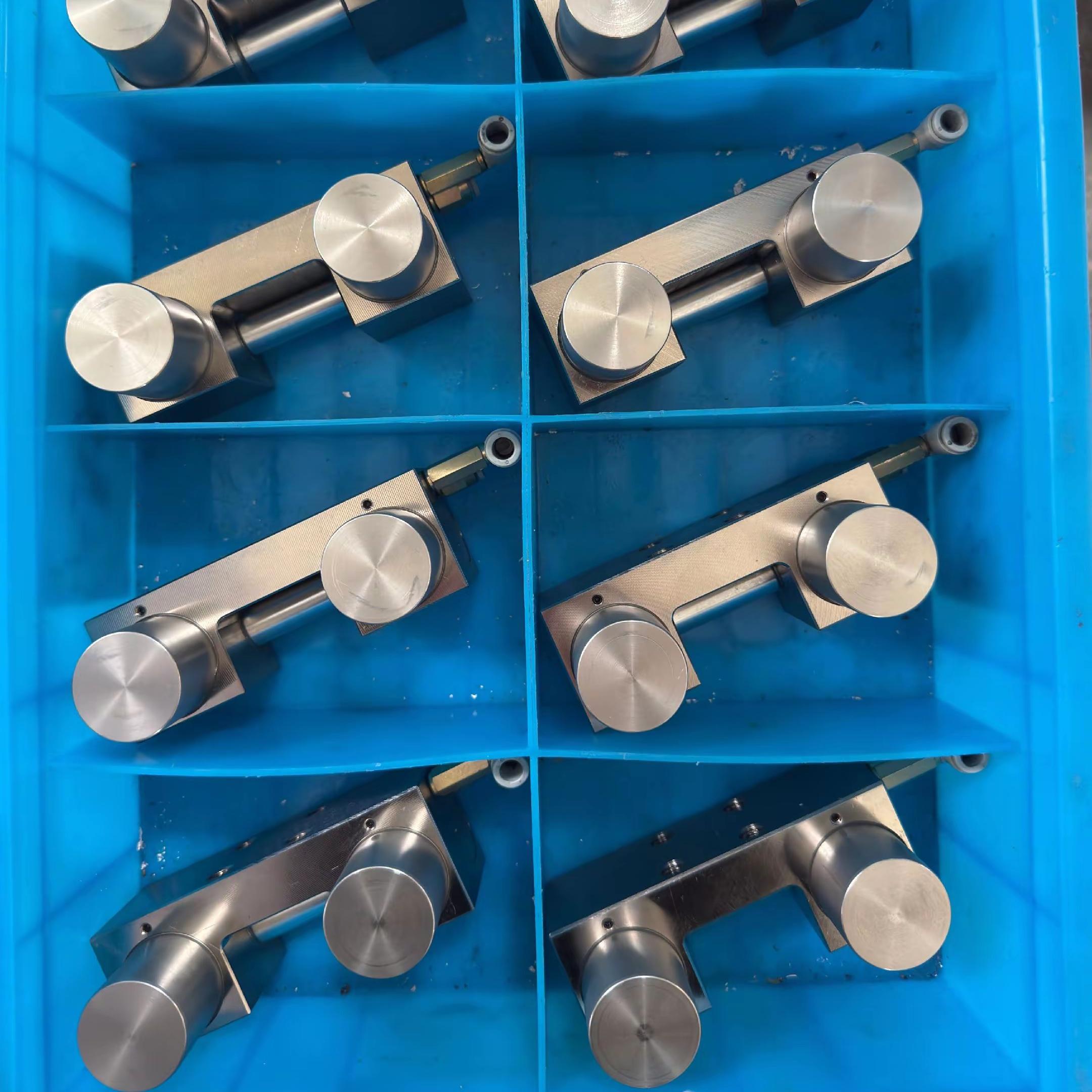

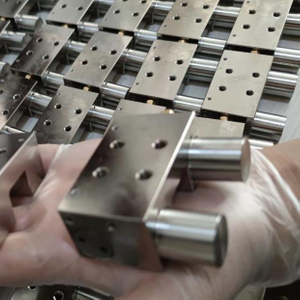

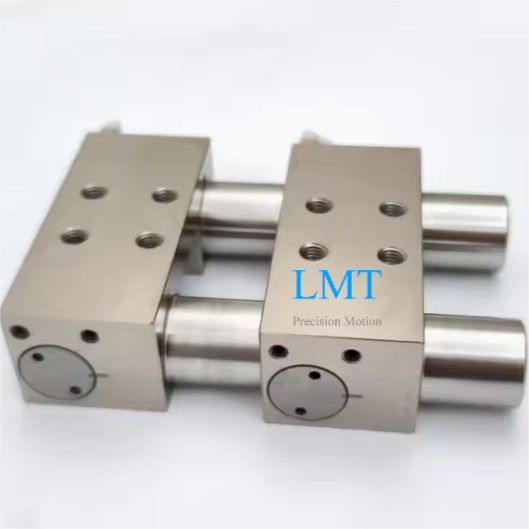

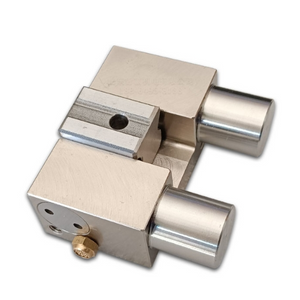

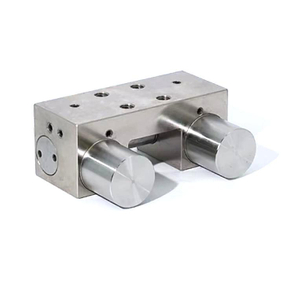

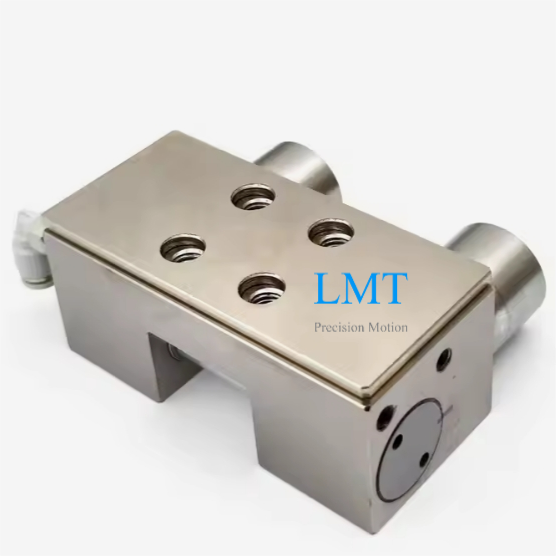

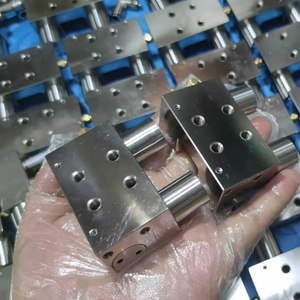

This pneumatic normally closed clamp brake is suitable for HIWIN brand models HGH65CA and HGW65CA linear guideways.The clamp enables precise position locking,prevents vibration and improves the rigidity of the linear guide.
Specification:
| Clamp Types | Pneumatic normally close |
| Applicable guideway sizes | 65mm |
| Rated holding force(N) | Standard connection 1450N,pressurized connection 3300N |
| Open air pressure | 0.55/0.4/0.3Mpa |
| Clamping service life | 5 million times |
| Material | Bearing steel with nickel-plated surface coating |

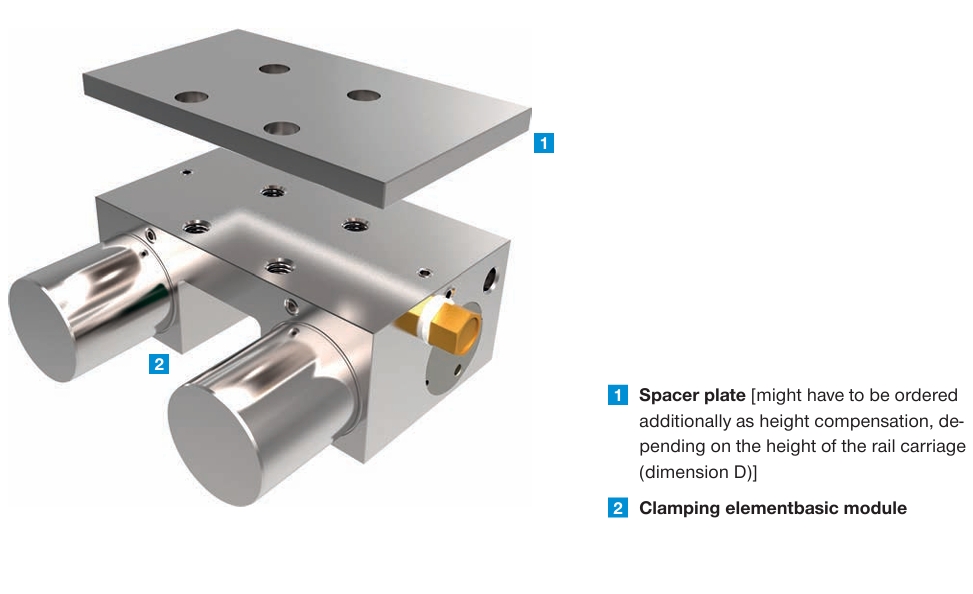

Spacer plate | Available(a spacer plate might have to be ordered as height compensation, depending on the height of the rail carriage) |
| Operating temperature | 0 °~70 °C |
| Applicable guideway brand | HIWIN/THK/PMI/WON/NSK/NB/ABBA and so on |

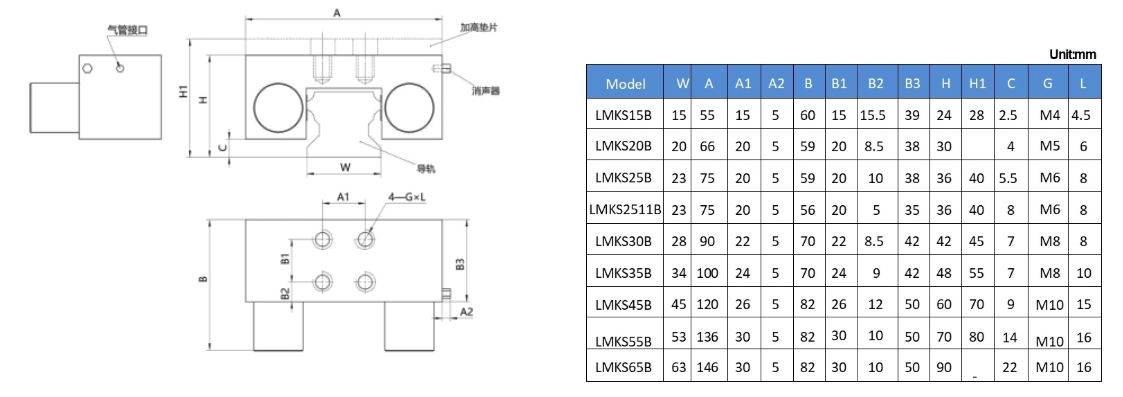

| 2D and 3D drawing | Available |
HGW65CA HGH65CA Linear Rail Clamp Brake Key Advantages:

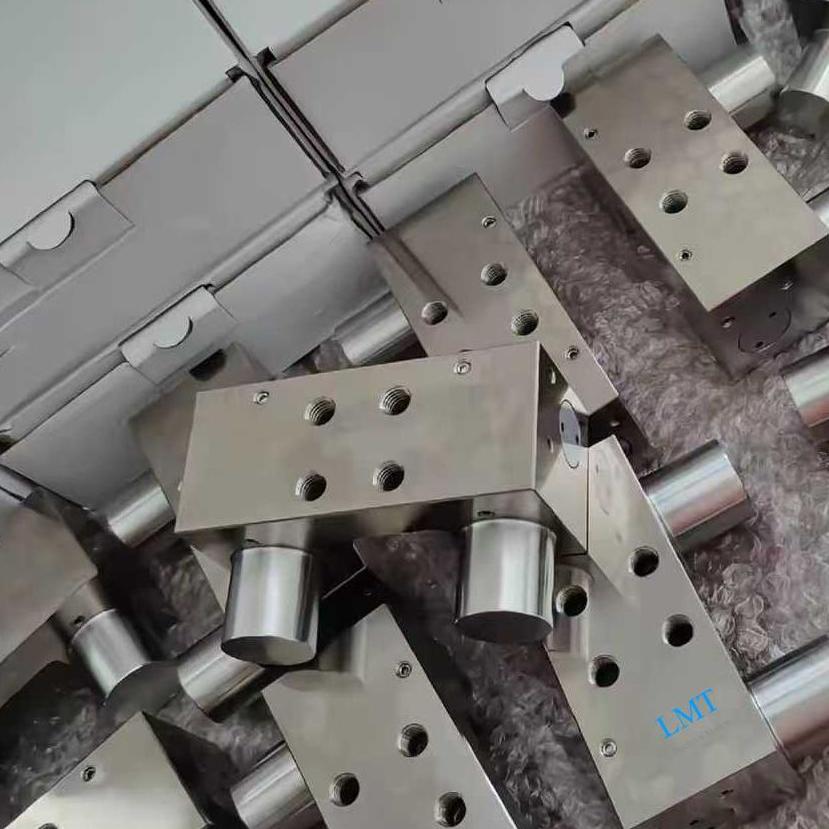

Lead time:Large stock inventory.
Cost-effective: 35%~50% cost savings.
High Durability:Up to 5 million static clamping cycles.
Broad Range of Products:For all common profile rail guides.

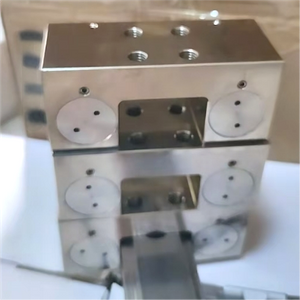

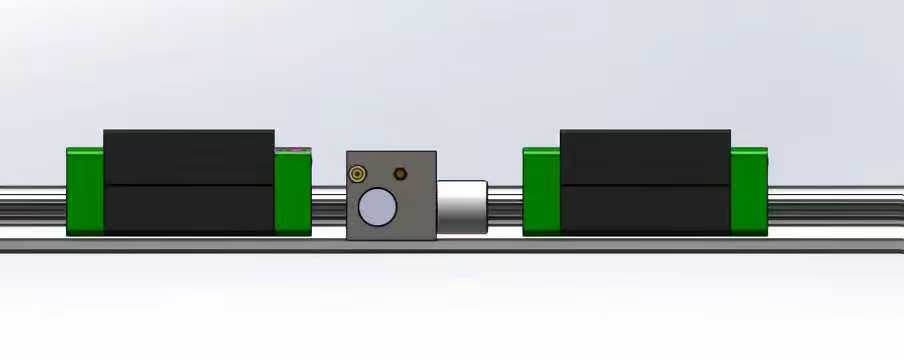

Completely replace the Zimmer brand MKS series linear guide clamp.
Customizable Design:Tailored to meet specific application requirements.
Corrosion Resistance:The surface of the clamp brake main body is nickel-plated and has good rust resistance.
Pneumatic Normally Closed Clamp Brake Video
