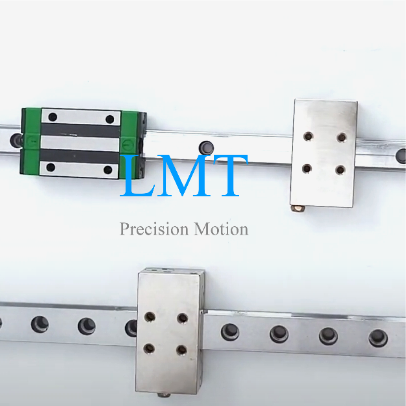

Pneumatic Normally Open Clamp Fixture for 65mm Linear Guide

  • Clamp types: Pneumatic normally open
  • Linear guide sizes: 65mm
  • Rated holding force(N):3000N
  • Open air pressure:0.2~0.6Mpa
  • Applicable guideway brand:HIWIN/THK/PMI/WON/NSK/NB/ABBA and so on
  • 2D and 3D drawing:Available

Availability:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
kakao sharing button
snapchat sharing button
telegram sharing button
sharethis sharing button

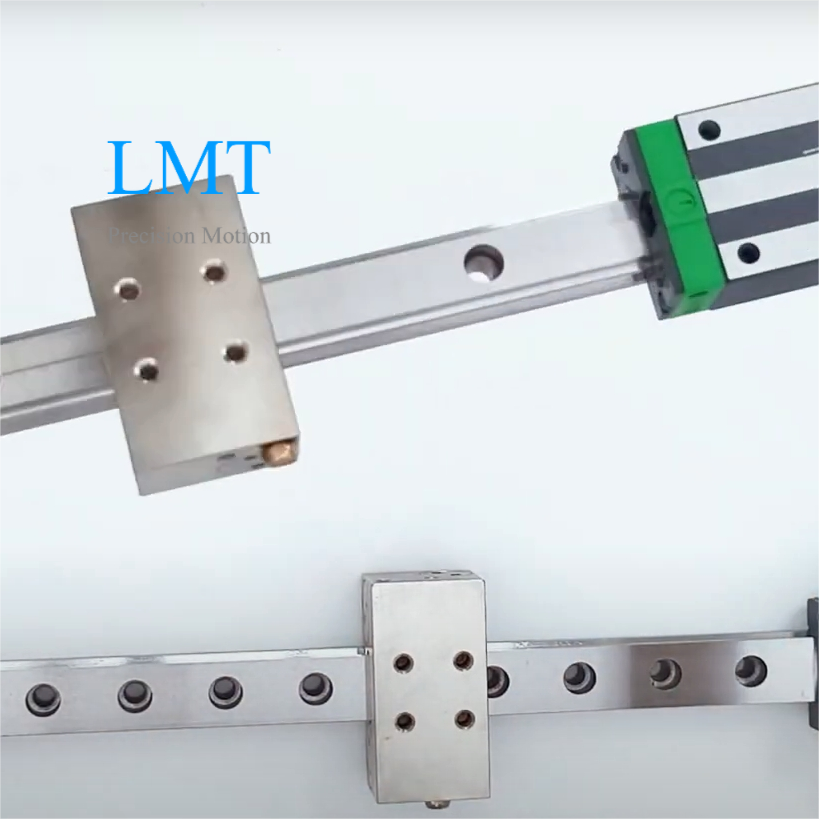

Pneumatic Normally Open Clamp Fixture for 65mm Linear Guide


Enhance precision,stability,and rigidity in demanding automation applications with our pneumatic normally open rail clamps,engineered specifically for 65mm linear guide systems.These robust clamping units deliver instant braking force to prevent vibration-induced drift and ensure absolute positional integrity during machining,measurement,or assembly processes.




Specifications:


Clamp types Pneumatic normally open
Linear guideway sizes 65mm
Rated holding force(N)
3000N
Open air pressure 0.2~0.6Mpa
Clamping service life 5 million times
Material
Bearing steel with nickel-plated surface coating

Spacer plate

Available(a spacer plate might have to be ordered as height compensation, depending on the height of the rail carriage)

Operating temperature 0 °~70 °C
Applicable guideway brand HIWIN/THK/PMI/WON/NSK/NB/ABBA and so on
2D and 3D drawing
Available


65mm Rail Pneumatic NO Clamp Fixture Advantages:


Lead time:Large stock inventory.

Cost-effective: 25%~50% cost savings.

High Durability:Up to 5 million static clamping cycles.

Broad Range of Products:For all common profile rail guides.

Completely replace the Zimmer or NBK brand MK series linear guide clamp.

Customizable Design:Tailored to meet specific application requirements.

Corrosion Resistance:The surface of the clamp locking main body is nickel-plated and has good rust resistance.



Alternative MK Series Pneumatic NO Linear Rail Clamp Fixture


Alternative MK Series Pneumatic Normally Open Rail Clamp Fixture


Alternative MK Series Pneumatic Rail Clamp Fixture


Alternative MK Series Pneumatic NO Rail Clamp Fixture



Structure In Section

Download Pneumatic Normally Open Linear Guide Clamp Size Chart
