Tr3.5x1 Custom Micro Lead Screw Spindle And Nut

Model Number: Diameter 3.5mm,lead 1mm(pitch 1mm )

Lead Time and MOQ : lead time 12~14days,MOQ 1 pc
Available Screw Materials:S45C,SS303,SS304,SS316
Available Nut Materials:Brass,Bronze,POM,PEEK,Nylon,S45C,SS304
Customized Service:Lead screws and nuts will be custom-produced according to your requirements or drawings


Availability:



Inquire Add to Basket

Product Description

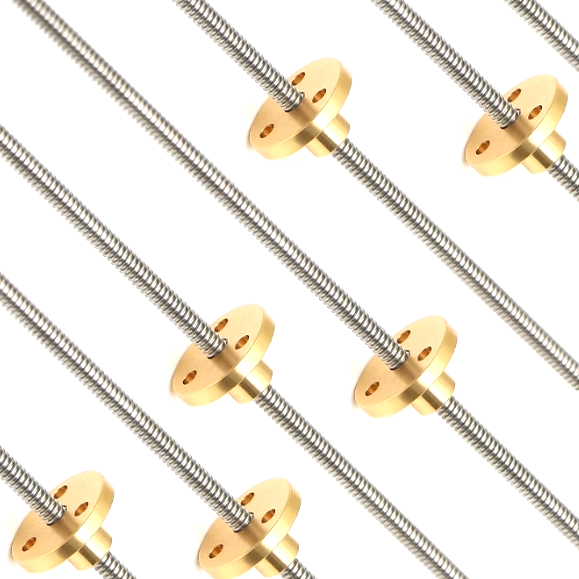

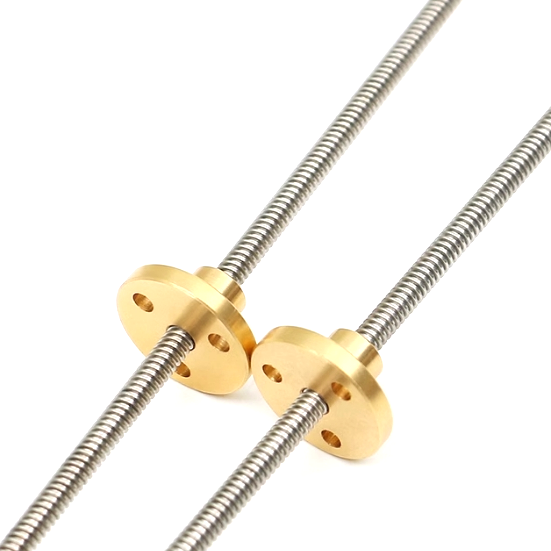

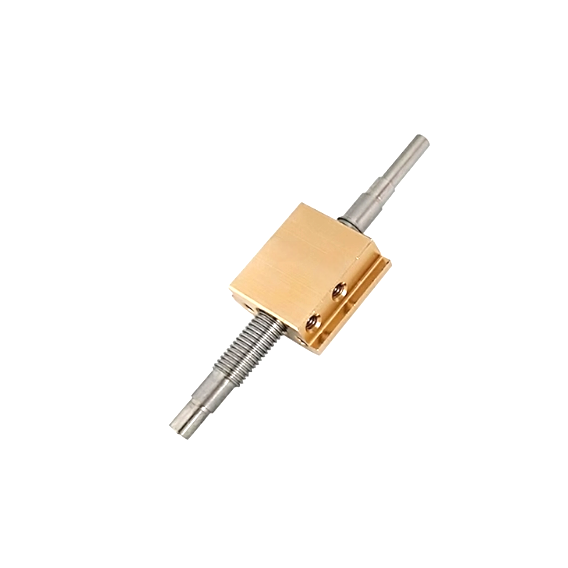

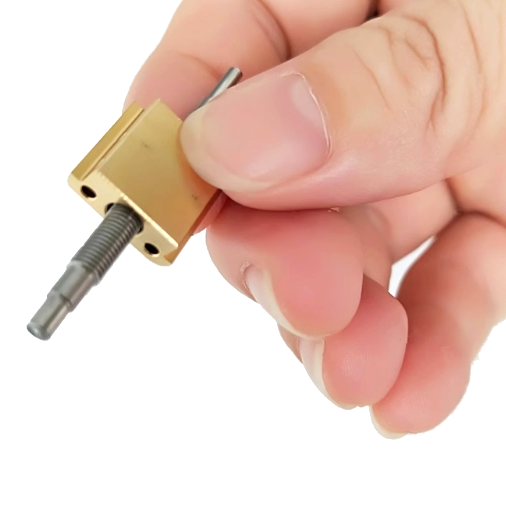

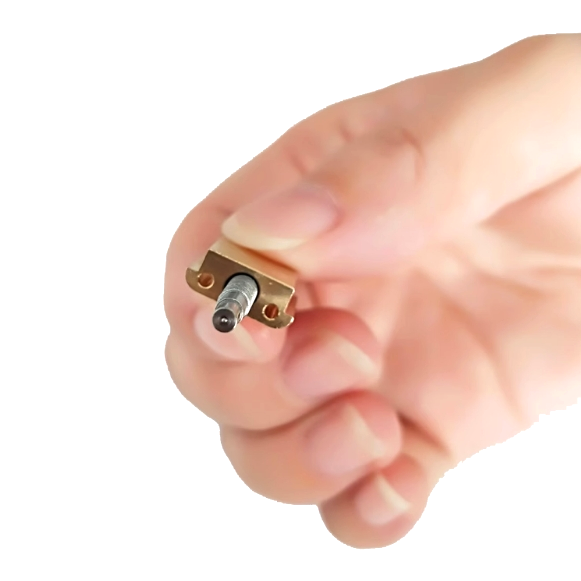

Tr3.5x1 Custom Micro Lead Screw Spindle And Nut

This mini lead screw spindle diameter is 3.5mm,lead is 1mm,pitch is 1mm.Tr3.5x1 lead screws and nuts can be flexibly customized to meet the needs of various applications.

Diameter	3.5mm
Lead	1mm
Pitch	1mm
Number of starts	1
Screw shaft end machining and length	According to your requirement or drawing
Nut shape and dimension	According to your needs
Thread Direction	Right hand thread/left hand thread/right and left hand thread
Screw material	S45C/ SS303/SS304/SS316

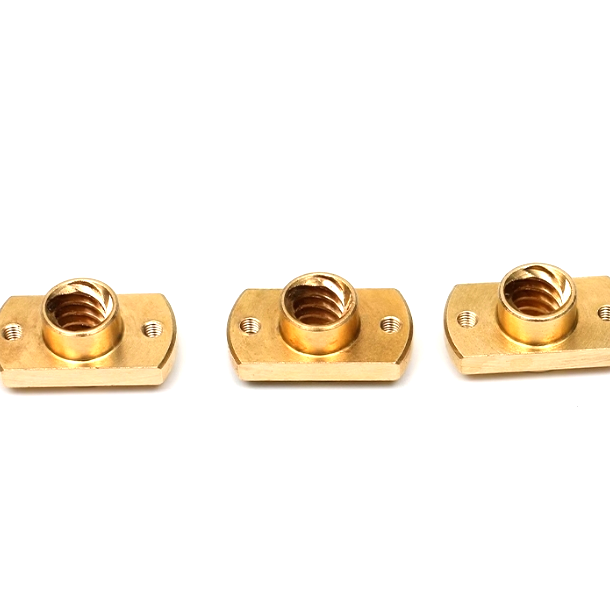

Nut material	Brass/Bronze/POM/PEEK/Nylon/Stainless steel/S45C
Popular surface coatings	Teflon coating/nickel plated/tungsten disulfide/black chorme plated/molybdenum disulfide/DLC coating.

T3.5x1 lead screw advantages:

Cost-Effective:30% cost savings.
Fast Delivery: Within 12 days.
Customized Service:Lead screws and nuts will be produced according to your requirements.Just send the requirements or drawings.
Compact and Space-Saving:Slim 3.5mm diameter screw and low-profile nut optimize space utilization in miniature systems.

Contact our sales to customize your 3.5x1 trapezoid screw and nut!
