Tool-free opening and closing:By turning the clamping lever
Maintenance free:Up to 50,000 static clamping cycles
Lead time:Large inventory in stock
Upgrade your precision machinery with our 30mm Manual Linear Guide Rail Clamp Brake.Featuring a smooth-operating rotary handle,this clamp delivers effortless single-motion tightening or release,eliminating downtime during adjustments or maintenance.Crafted for endurance,the linear rail brake boasts a corrosion-resistant nickel-plated finish,ensuring reliable performance in demanding industrial environments.
Technical Data:
| Clamp types | Manual |
| Linear guide size | 30mm |
| Rated holding force(N) | 2000N |
| Material | Bearing steel with nickel-plated surface coating |
Spacer plate | Available(a spacer plate might have to be ordered as height compensation, depending on the height of the rail carriage) |
| Operating temperature | 0 °~70 °C |
| Applicable guideway brand | HIWIN/THK/PMI/WON/NSK/NB/ABBA and so on |
| 2D and 3D drawing | Available |
30mm Manual Linear Guide Clamp Key Advantages:
The manual brake is suitable for all common profile rail guides.
The 360° adjustable handle ensures easy operation from any angle,enhancing flexibility even in confined spaces.
Choose between standard or extended handles,adapting to varying workspace constraints and user preferences.
The manual clamp mechanism ensures a strong,vibration-resistant hold,preventing unwanted movement during operation.
Provides reliable braking force to halt motion,making it ideal for use as a manually operated mechanical end stop or safety block.

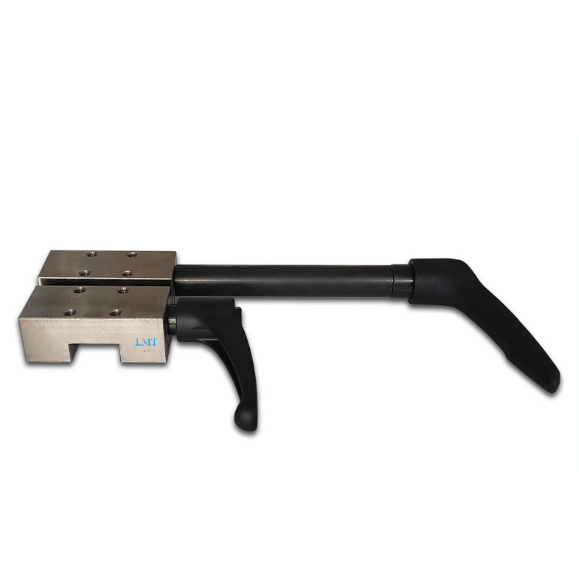

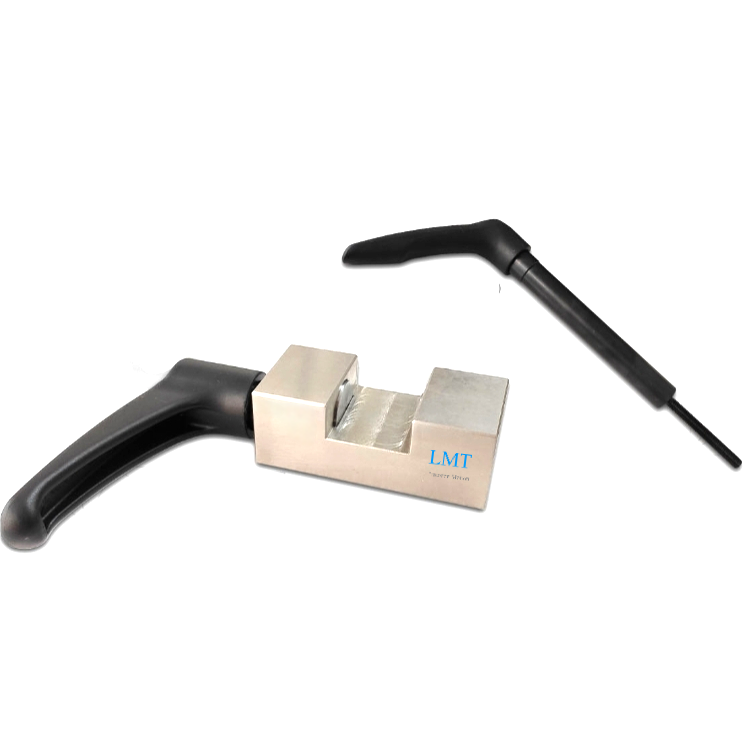

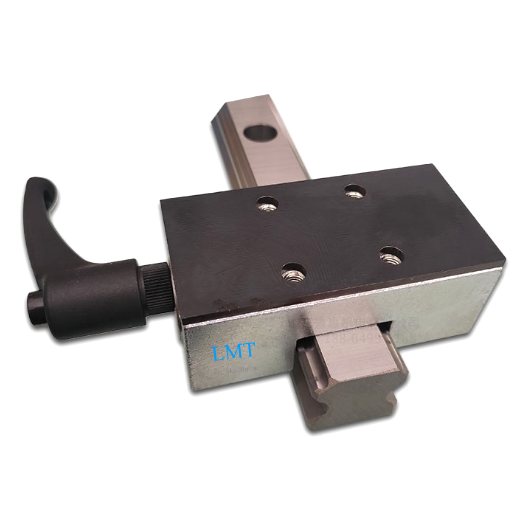

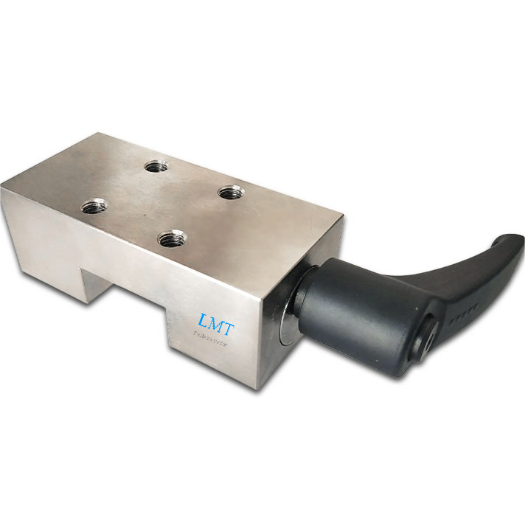

Manual Linear Rail Clamp Brake Pictures
