LMK45B
| Quantity: | |||||||||
|---|---|---|---|---|---|---|---|---|---|
| |||||||||

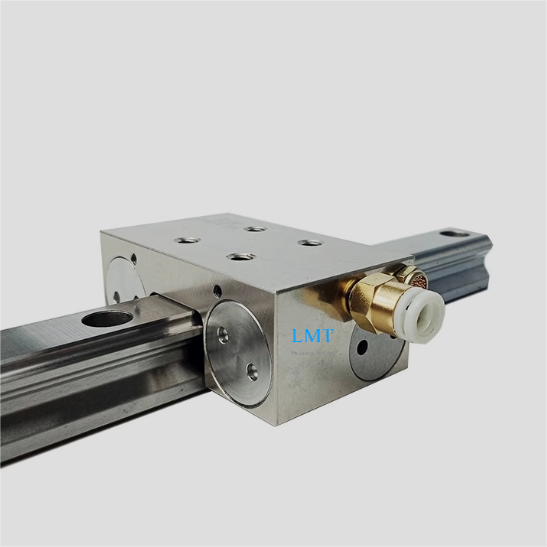

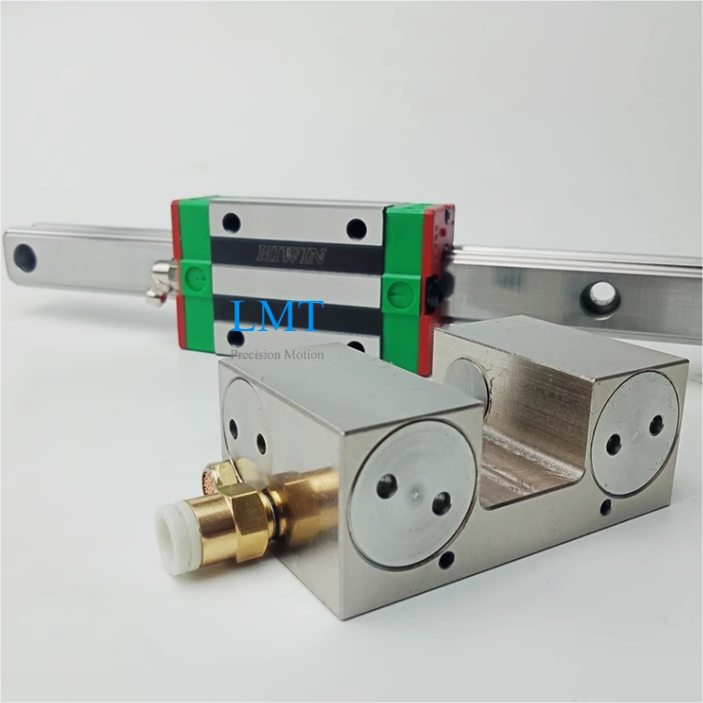

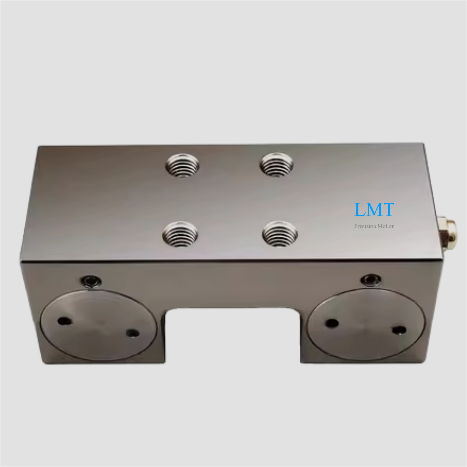

This high-performance rail clamping brake is designed for use with 45mm linear guide rails.It secures workpieces,enables precise positioning,prevents vibration,and increases rigidity.Operated by compressed air,this normally open brake is compact,offers strong holding force,and is easy to install.Available now at an affordable price with large stock for immediate shipping.
| Clamp types | Pneumatic normally open |
| Linear guide sizes | 45mm |
| Rated holding force(N) | 2250N |
| Open air pressure | 0.55~0.65Mpa |
| Clamping service life | 5 million times |
| Main body material | 42CrMo, sandblasted electroless nickel coating |
Spacer plate | Available(a spacer plate might have to be ordered as height compensation, depending on the height of the rail carriage) |
| Operating temperature | 0 °~70 °C |
| Applicable guideway brand | HIWIN/THK/PMI/WON/NSK/NB/ABBA and so on |
| 2D and 3D drawing | Available |
-Main body:42CrMo,electroless sandblasting nickel plating
-Air filter: Brass
-Contact surface:Equivalent to SKD11,electroless nickel plating
-Adjusting bolt:Equivalent to SKD11,electroless nickel plating
-Suitable for ball linear guide rails
-Used for worktable fixing,positioning and anti-vibration
-Normally open type：
Air supply ON: Clamp closed and locked
Air supply OFF: Clamp released and open
-Order model: LMK (Rail size)B ,Example: For size 25mm ball linear guide rail,the order model is LMK25B
-Fast delivery within 3 days.
-Help you save 50%~70% of the cost.
-Direct replacement for Zimmer NBK MK series clamping device.
-High durability,up to 5 million static clamping cycles.
-This rail braking element is compatible with most linear guide systems available on the market,including major brands such as HIWIN,THK,PMI,WON,NSK,NB,and ABBA.
