Tool-free opening and closing:By turning the clamping lever
Maintenance free:Up to 50,000 static clamping cycles
Lead time:Large inventory in stock
Industrial-grade manual brake for 45mm linear guides.Engineered for high-load applications.Features positive-lock safety mechanism preventing accidental movement.Nickel plated surface for corrosion resistance.No electrical power required.Compatible with most 45mm linear guide rails.Reduces machine downtime.Essential for press brakes,gantry systems,and heavy automation.
Technical Data:
| Clamp types | Manual |
| Linear guide size | 45mm |
| Rated holding force(N) | 2000N |
| Material | Bearing steel with nickel-plated surface coating |
Spacer plate | Available(a spacer plate might have to be ordered as height compensation, depending on the height of the rail carriage) |
| Operating temperature | 0 °~70 °C |
| Applicable guideway brand | HIWIN/THK/PMI/WON/NSK/NB/ABBA and so on |
| 2D and 3D drawing | Available |
45mm Linear Rail Brake Clamp Key Advantages:
The manual brake is suitable for all common profile rail guides.
The 360° adjustable handle ensures easy operation from any angle,enhancing flexibility even in confined spaces.
Choose between standard or extended handles,adapting to varying workspace constraints and user preferences.
The manual clamp ensures a strong,vibration-resistant hold,preventing unwanted movement during operation.
Provides reliable braking force to halt motion,making it ideal for use as a manually operated mechanical end stop or safety block.

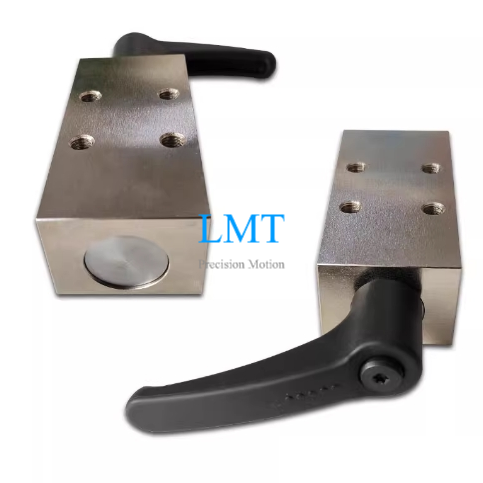

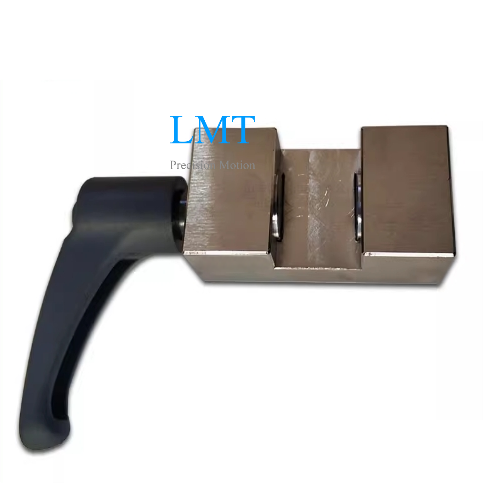

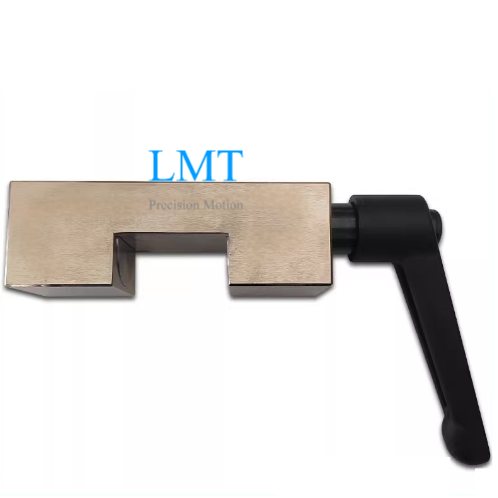

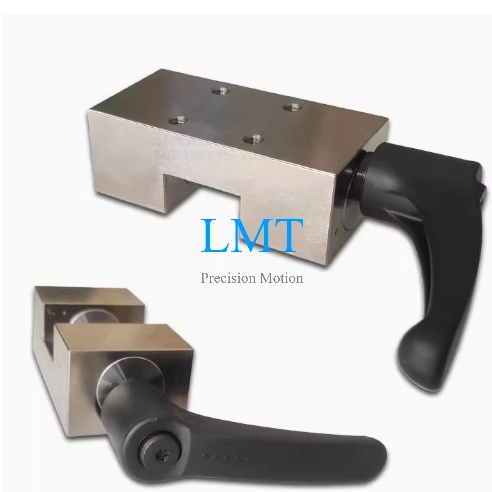

Heavy-Duty Manual Safety Lock Pictures
