Why are linear guide clamping elements a good choice for woodworking machines?

In precision‑processing procedures of woodworking CNC,such as drilling,milling and engraving,unstable machining accuracy is a core factor that restricts finished‑product quality,increases rework costs and reduces production efficiency.In most production scenarios when machining defects occur,operators tend to make optimizations by replacing cutting tools and adjusting machining parameters,yet they cannot fundamentally resolve accuracy deviation issues.

Verified by practical industry experience,most accuracy failures of woodworking equipment do not stem from tool wear or improper parameter settings.The root cause lies in micro‑shake and position offset of the linear guide slide carriage.This article introduces a low‑cost, highly‑feasible equipment‑optimization solution:retrofitting woodworking‑specific linear guide clamping elements.Complete equipment replacement is not required,and common industry‑wide problems including machining offset,equipment vibration,material edge chipping and inconsistent accuracy can be effectively solved.

Root Causes of Accuracy Deviation

Wood is a non‑homogeneous anisotropic material with uneven grain and density distribution.Cutting resistance fluctuates dynamically during machining.When equipment performs high‑speed start‑stop and continuous cutting operations,invisible micro‑displacement and radial shake will occur on the guide slide carriage.

Tiny position deviations,amplified by high‑speed equipment processing,will directly trigger quality defects such as hole‑position offset,tenon‑and‑groove deformation and uneven cutting surfaces.Conventional tool replacement and parameter adjustment can only optimize superficial machining problems,and are unable to address the core structural defect of dynamic displacement of the guide slide carriage.

Three Core Advantages of Retrofitting Linear Guide Clamping Elements

1.Lock machining angles,prevent position offset and guarantee batch‑processing accuracy Aiming at working‑condition characteristics including dynamic fluctuation of wood‑cutting resistance and position shift caused by high‑speed start‑stop of equipment,linear guide clamping elements rigidly lock the slide carriage and stabilize the machining angle of drill bits.They effectively counteract micro‑displacement deviations generated in cutting processes.Highly‑unified dimensions can be achieved for workpieces within the same batch; hole‑position and tenon‑and‑groove machining are precisely controlled. Rework and scrap problems caused by slide‑carriage position shift are greatly reduced,and product yield and production stability are significantly improved.

2.Suppress high‑frequency cutting vibration,improve finished‑product quality and lower equipment wear High‑frequency vibration generated by high‑speed wood cutting is the main inducement for material edge chipping and machining burrs. Meanwhile,it accelerates wear of key components such as linear guides and bearings,leading to continuous attenuation of equipment accuracy and rising annual operation‑and‑maintenance costs.

Retrofitting linear guide clamps effectively improves the overall structural rigidity of linear guides and buffers and absorbs high‑frequency machining vibration, bringing dual optimization effects.First,cutting performance of workpieces is optimized: cutting surfaces are flat and smooth without edge chipping or burrs, and subsequent polishing‑process costs are reduced. Second, the wear rate of key components is decreased, the attenuation cycle of equipment accuracy is delayed,and costs for long‑term equipment maintenance and spare‑part replacement are saved.

3.Adapt to harsh production conditions,compatible with new and old equipment and convenient modification All LMT linear guide clamping elements have passed 5‑million‑cycle fatigue‑life tests.They can operate stably under harsh wood‑workshop conditions featuring heavy dust, frequent start‑stop cycles and continuous operation, delivering outstanding equipment‑running stability and durability.

Featuring compact and small‑size structures,the products boast excellent equipment compatibility. Modification can be implemented on both new and existing woodworking machines without altering original equipment structures or complicated commissioning procedures. The retrofitting process is simple and highly efficient.

Selection Guide for Woodworking‑Specific Clamping Elements: Precise Matching for Various Machining Conditions

According to diverse woodworking‑equipment structures and machining scenarios,the product range is divided into four main series to precisely fit different working conditions,achieve optimal balance between cost and performance,and avoid compatibility risks resulting from improper selection:

1.Pneumatic Normally Open Type LMK / LMLK (Slender‑body Series) Working principle: Clamps when air is supplied and releases when air supply is cut off. It delivers fast response and adjustable clamping pressure to match continuous‑operation rhythms. Application scenarios: Fully‑automatic continuous‑processing equipment such as CNC engraving machines,automatic drilling machines and high‑speed milling machines; suitable for high‑frequency and regular continuous‑operation working conditions.

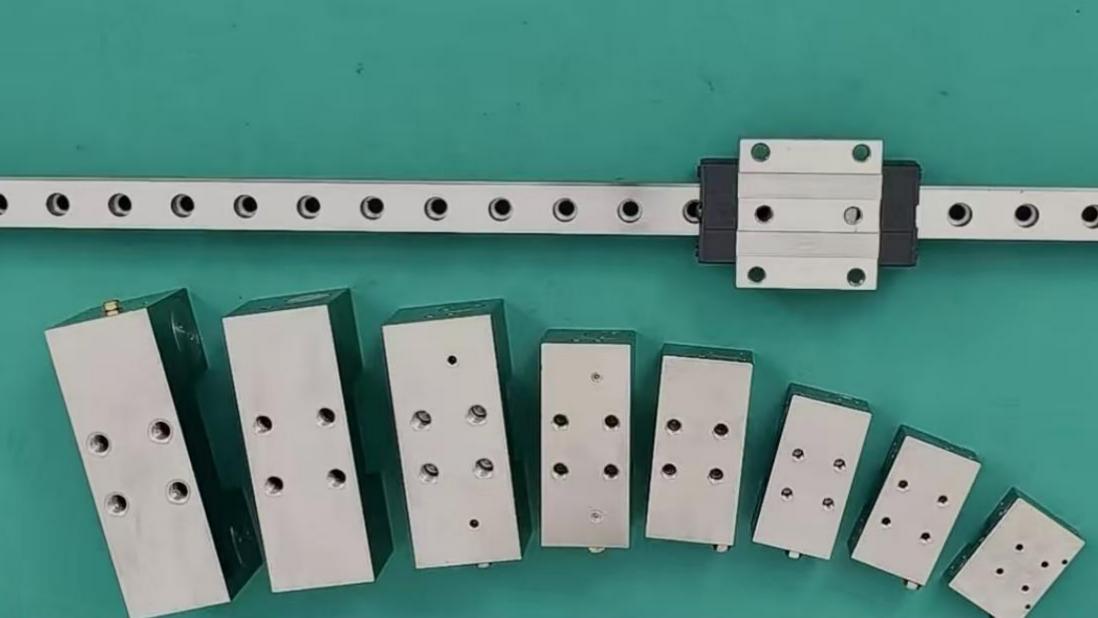

LMK Series

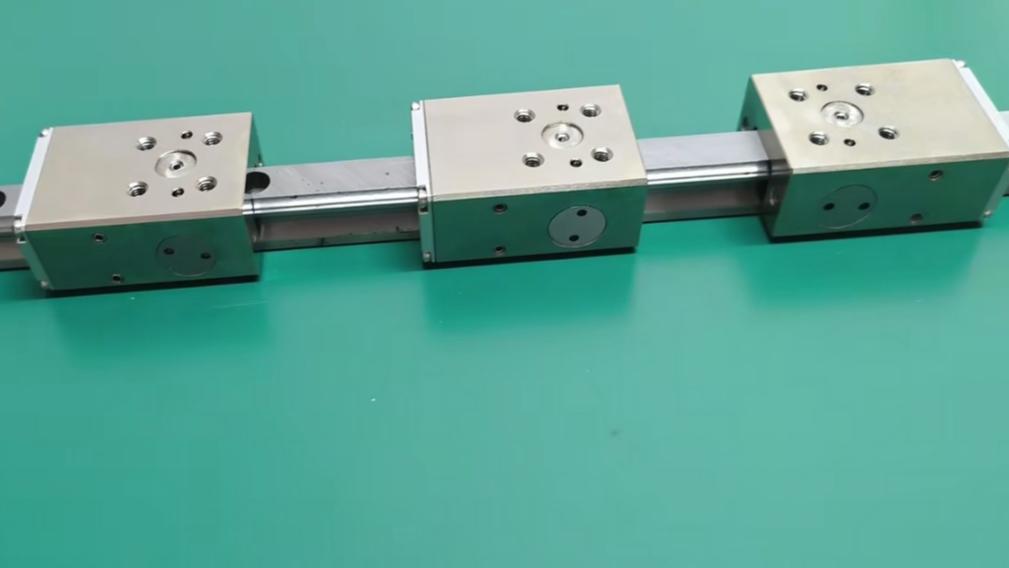

LMLK Series

2.Pneumatic Normally Closed Type LMKS / LMLKS (Slender‑body Series) Working principle: Automatically clamps upon loss of air supply and releases when air is supplied.It provides dual safety protection against power‑off and air‑failure events. Application scenarios: Tenon‑and‑groove machines,vertical drilling machines and panel sawing machines;for processing scenarios requiring stand‑by accuracy retention and high production‑safety requirements.

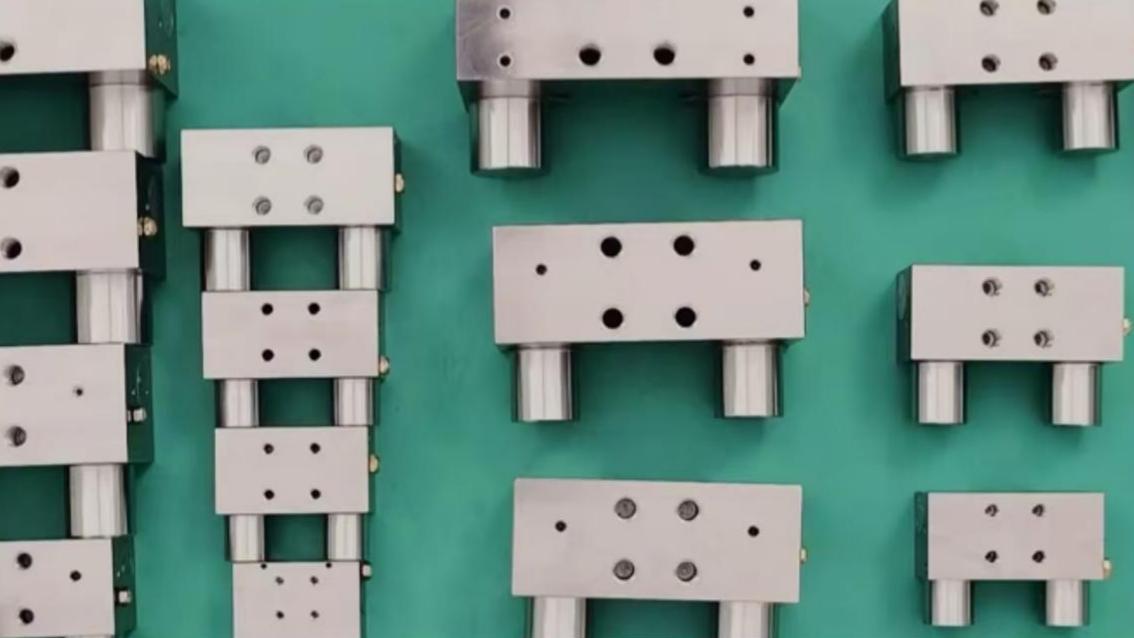

LMKS Series

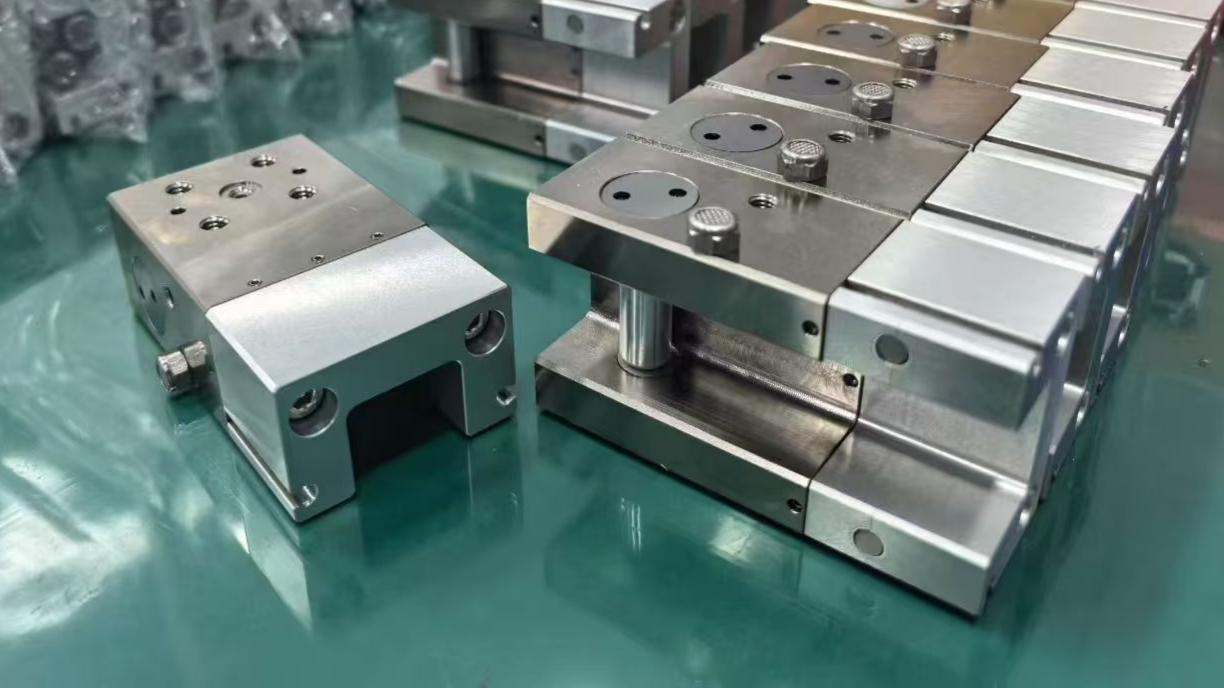

LMLKS Series

3.Brake‑Protection Type LMBPS Core functions: Integrates regular locking and emergency‑braking dual modes.Instant slide‑carriage locking is triggered upon sudden equipment failure to effectively avoid machining errors and equipment‑collision damage risks.Application scenarios:Heavy‑duty milling machines,woodworking machining centers and automated production lines;for high‑end precision‑processing applications.

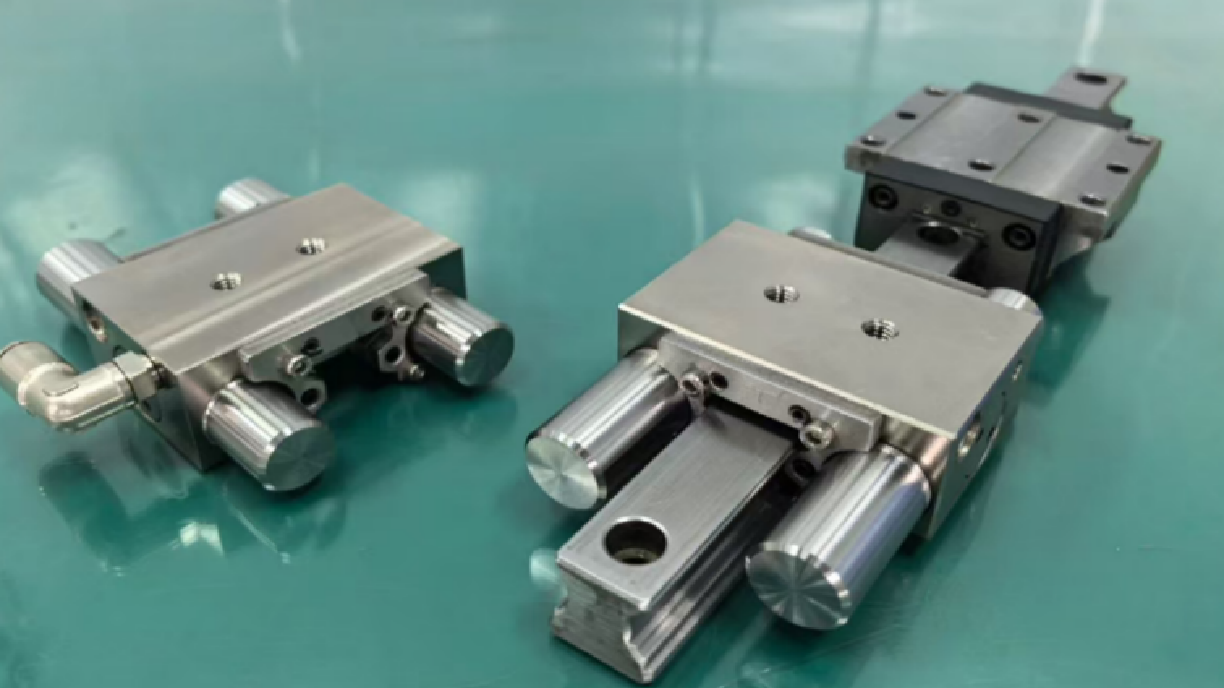

LMBPS Series

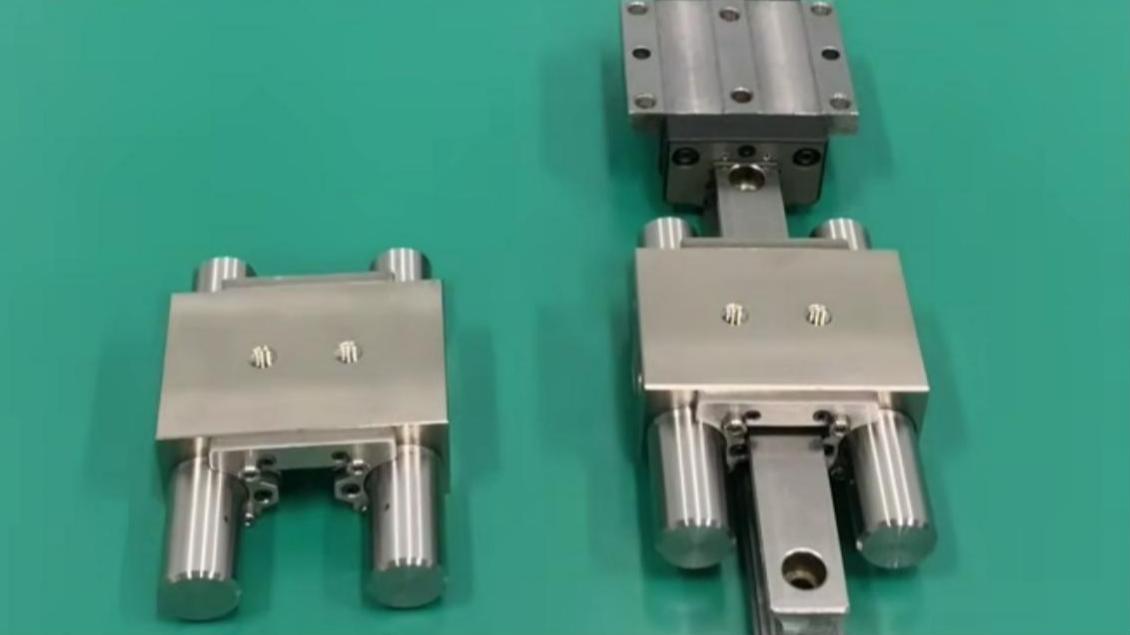

LMBPS Series

4.Manual Economical Type LMSK Product advantages: No external air source required; manual‑locking structure with simple design and high cost‑performance,no extra operating costs.Application scenarios:Small‑size drilling machines and bench‑type grinding machines;suitable for equipment‑accuracy fine‑tuning and retrofitting of semi‑automatic small‑scale equipment.

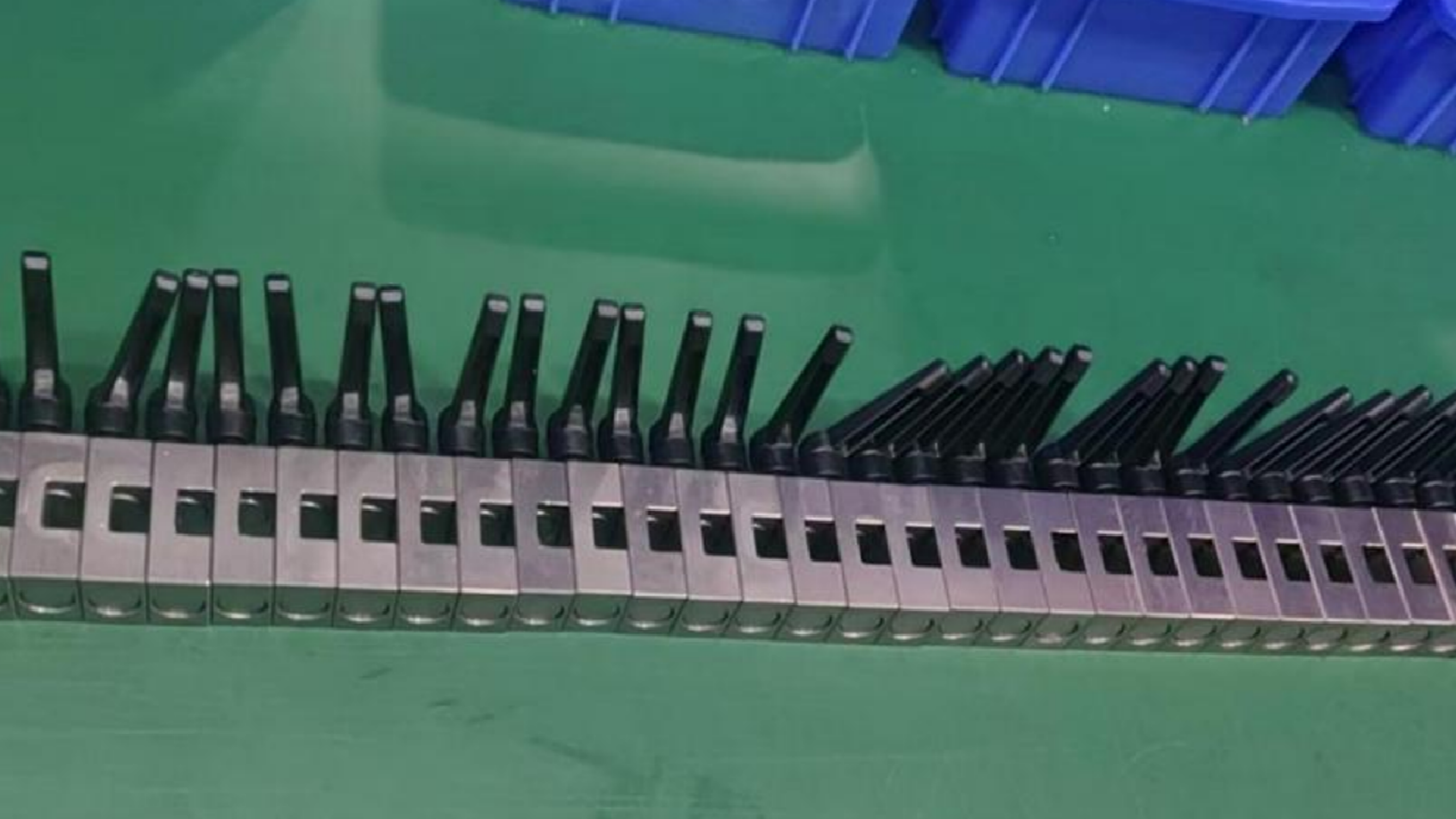

LMSK Series

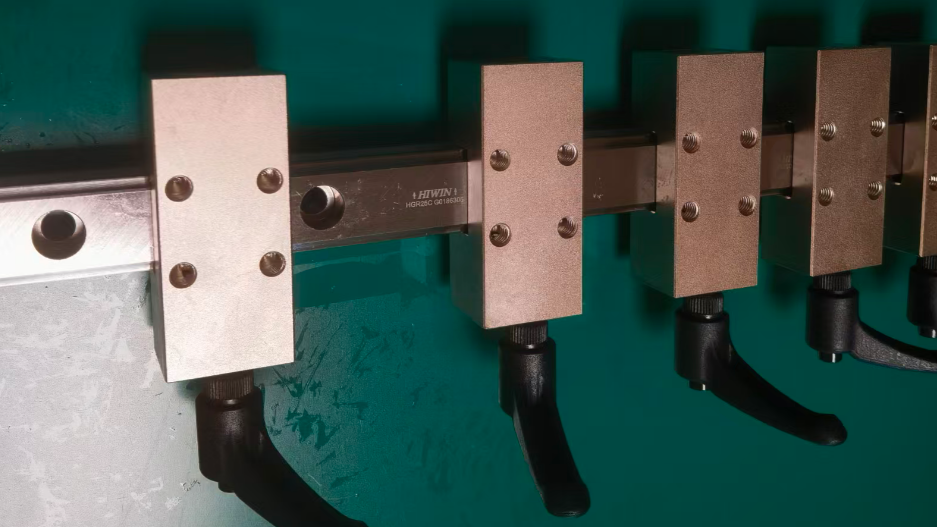

LMSK Series
