LMK20B

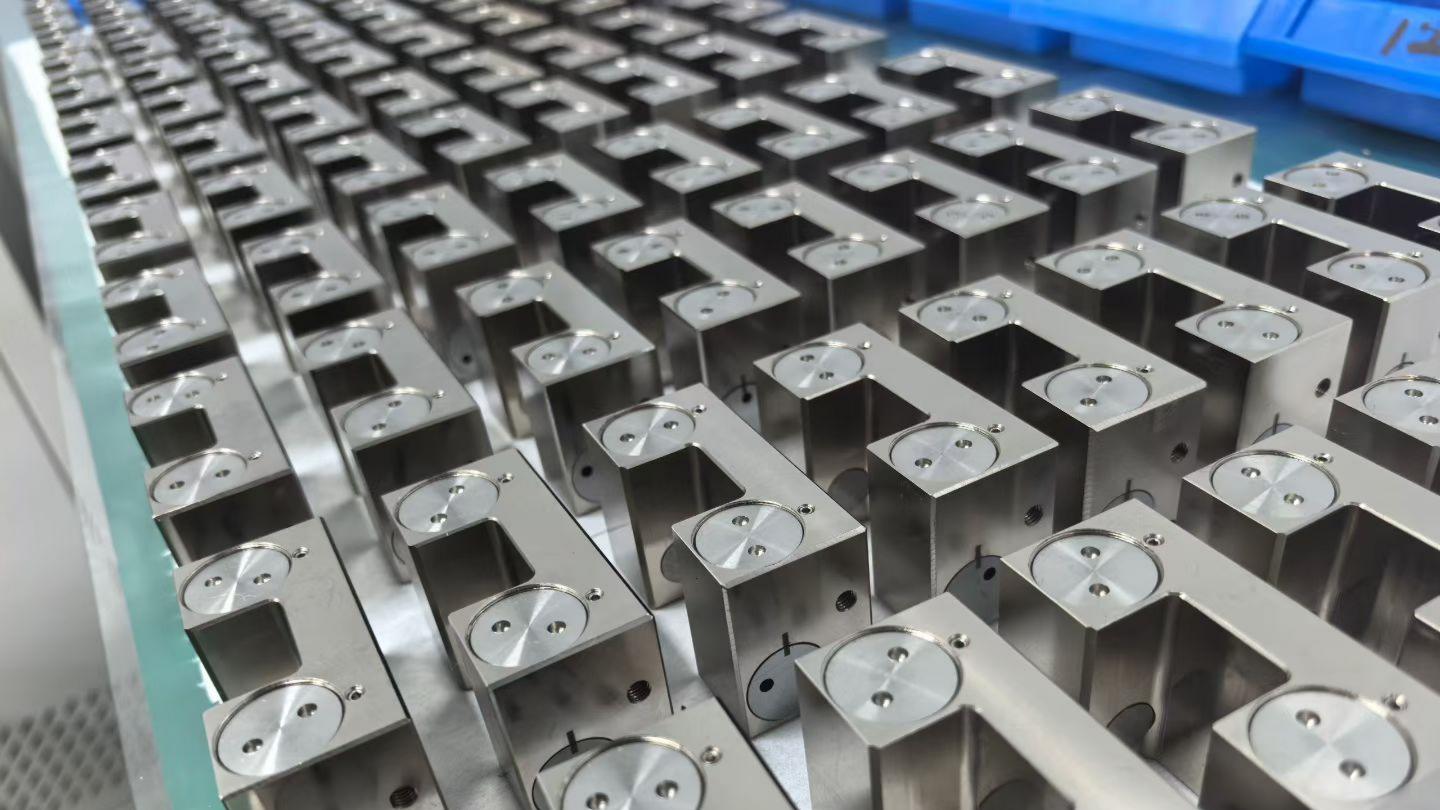

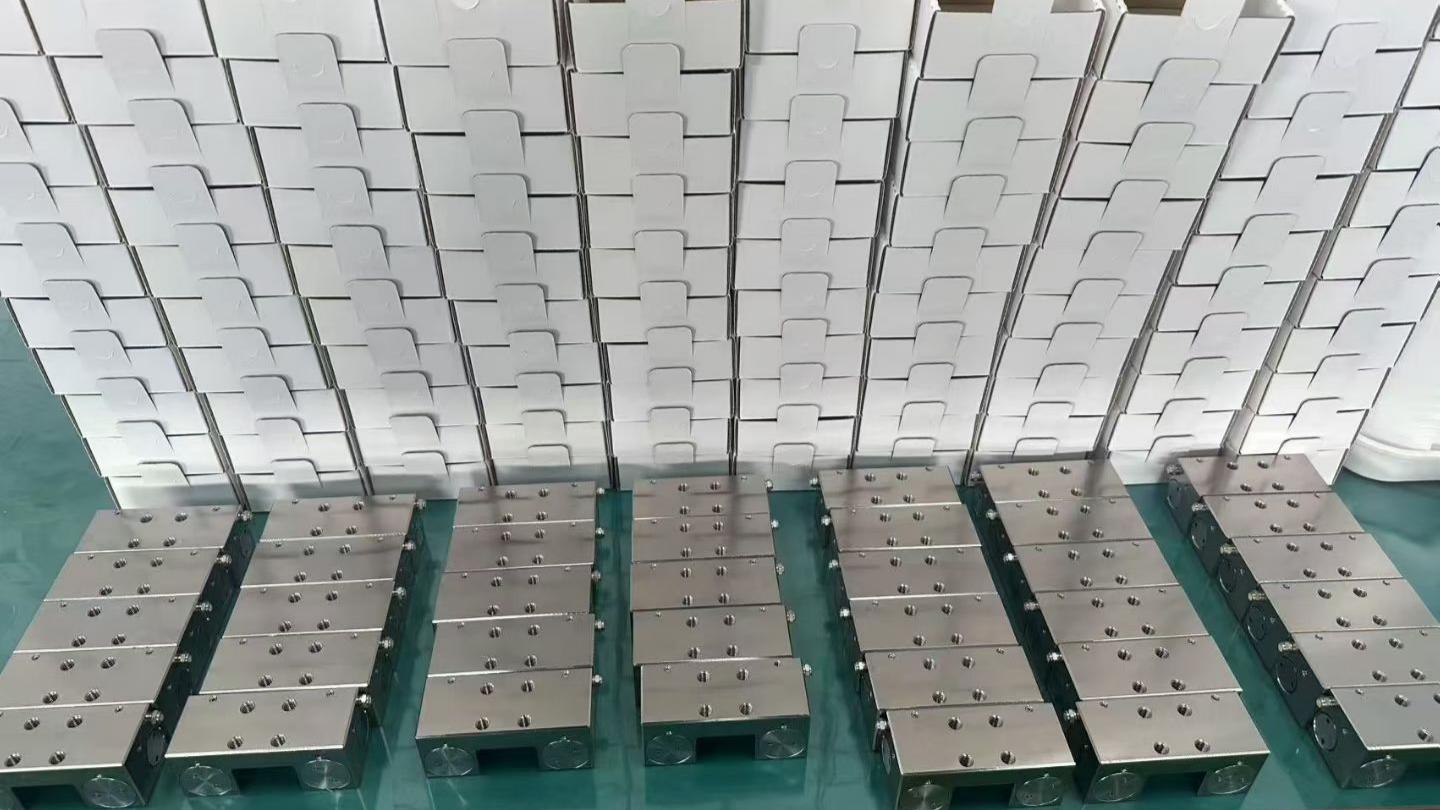

MK Series Pneumatic Normally Open Clamp Alternatives for 20mm Linear Guide
This product is a pneumatic normally open clamp designed as a direct alternative to the MK series.It is compatible with most 20mm linear guides available on the market.The linear guide clamp delivers precise positional locking,effectively prevents vibration,and enhances the overall rigidity of the system.
Specifications：
| Clamp types | Pneumatic normally open |
| Linear guide sizes | 20mm |
| Rated holding force(N) | 1000N |
| Open air pressure | 0.2~0.6Mpa |
| Clamping service life | 5 million times |
| Material | Bearing steel with nickel-plated surface coating |
Spacer plate | Available(a spacer plate might have to be ordered as height compensation, depending on the height of the rail carriage) |
| Operating temperature | 0 °~70 °C |
| Applicable guideway brand | HIWIN/THK/PMI/WON/NSK/NB/ABBA and so on |
| 2D and 3D drawing | Available |
20mm Linear Rail Pneumatic NO Clamp Advantages:
Fast delivery within 3 days.
Help you save 25%~45% of the cost.
High Durability,up to 5 million static clamping cycles.
Direct replacement for Zimmer or NBK brand MK series pneumatic normally open clamp.
This rail clamp is compatible with most linear guide systems available on the market,including major brands such as HIWIN,THK,PMI,WON,NSK,NB,and ABBA.
Pneumatic Normally Open Clamp Product Video
