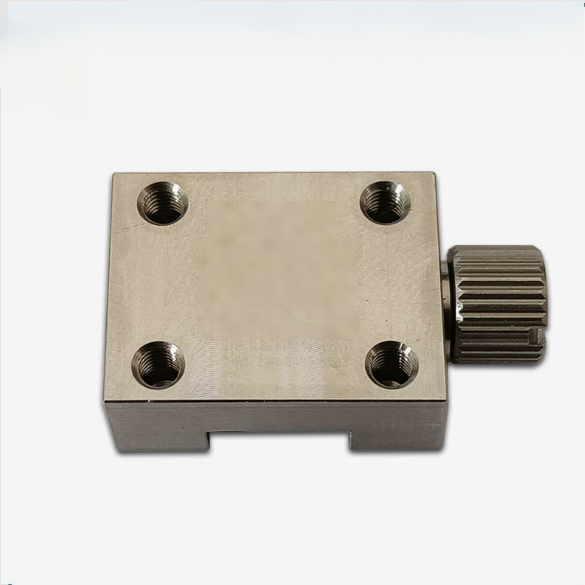

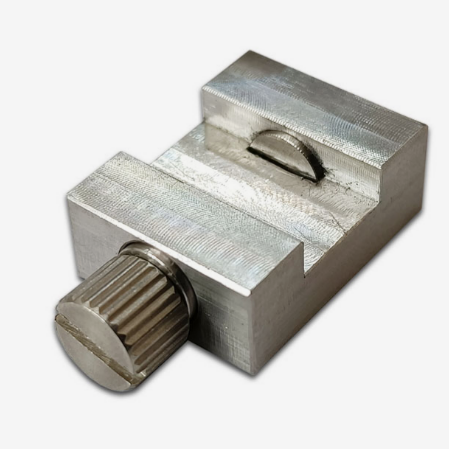

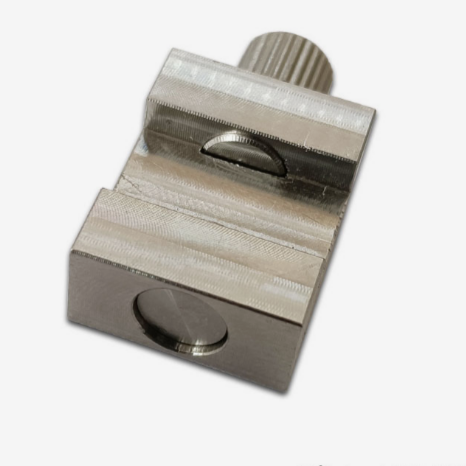

MSD900C
| Quantity: | |||||||||
|---|---|---|---|---|---|---|---|---|---|
| |||||||||
| Clamp types | Manual |
| Linear rail sizes | 9mm |
| Holding force(N) | 100N |
| Screw tightening torque | 0.17 [Nm] |
| Clamping service life | 5 million times |
| Main body material | 42CrMo, sandblasted electroless nickel coating |
Spacer plate | Available(a spacer plate might have to be ordered as height compensation, depending on the height of the rail carriage) |
| Operating temperature | -10 °~70 °C |
| Applicable linear guideway brand | HIWIN/THK/PMI/WON/NSK/NB/ABBA/IKO and so on |

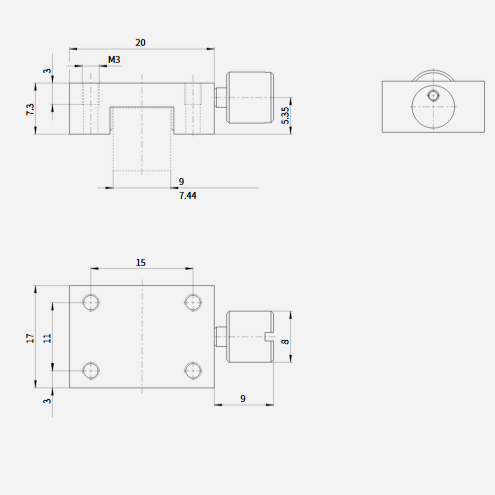

| 2D and 3D drawing | Available |

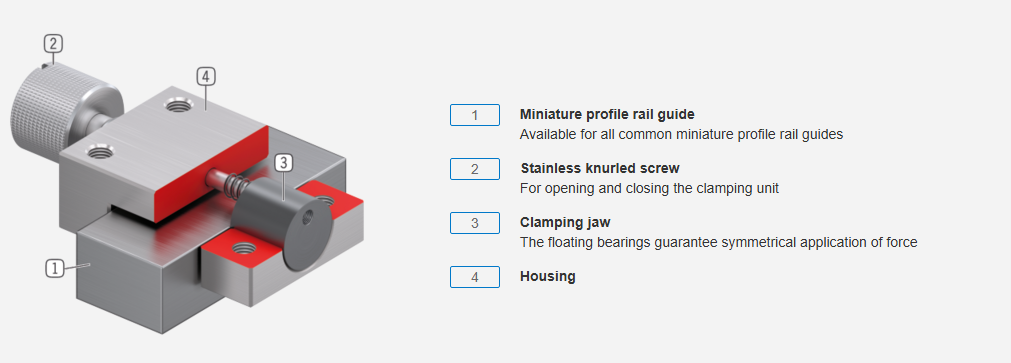

-Main body: C45 steel,quenched and tempered
-Clamping head:Chromium steel,heat treated
-Knurled handle head :6061 aluminum alloy,black anodized surface
-Main body surface treatment:Sandblasting and nickel plating(Anti-rust)
-Suitable for ball linear guide rails
-Used for worktable fixing,positioning and anti-vibration
-Small construction,for all common miniature profile rail guides
-Tool-free opening and closing (bi-stable),by turning the knurled screw
-Maintenance free,50,000 static clamping cycles
-Lead Time: 7days.
-Cost-Effective: 50%~70% cost savings.
-High Durability:Up to 5 million static clamping cycles.
-Broad Range of Products:For all common mini linear guides.
-Interchangeable:Completely replace the Zimmer or NBK brand miniHK series linear guide clamp.
-Customizable Design:Tailored to meet specific application requirements.
-Quality Control:Every clamp will go through full performance testing and inspection before shipment to ensure 100% qualified products.
