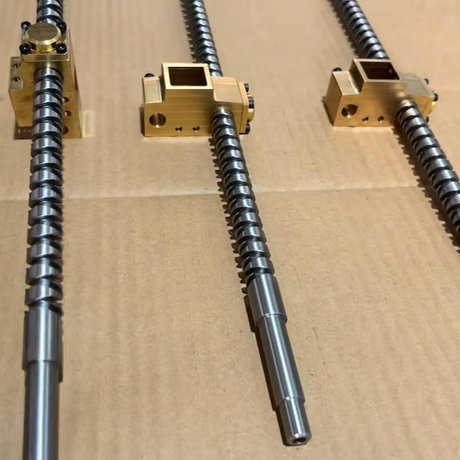

Material Selection Guide for Self-Reversing Screws in Freshwater Environments

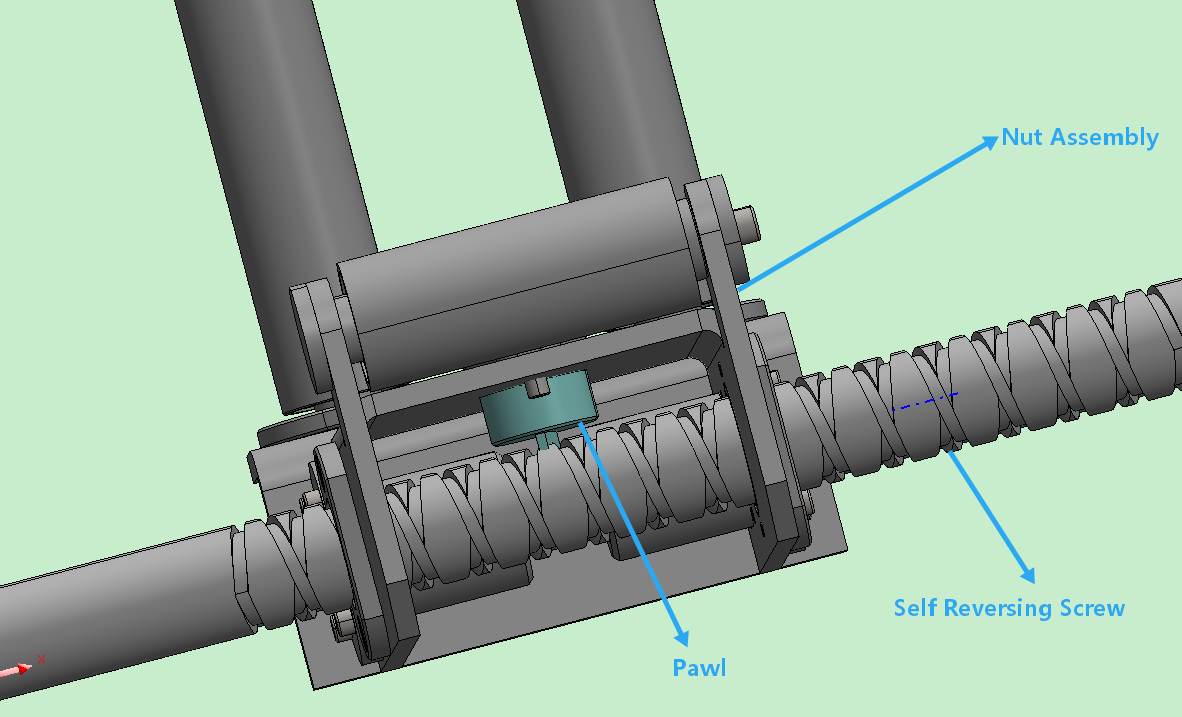

Self reversing screw(also known as a level winder screws,reverse spooling screws or diamond screws.)is a precision component that converts rotary motion into linear motion.Its structure primarily consists of three parts: the self reversing screw shaft,the PAWL(reversing key),and the block nut.These three components work in synergy,determining the precision and service life of the entire transmission system.Under special operating conditions—such as underwater applications and no lubrication—the material selection for these three parts becomes a complex interplay of physics,chemistry,and mechanical engineering.

Key Engineering Challenges
Designing a self-reversing screw(screw shaft,nut,and reversing pawl)for fully submerged and oil-free freshwater applications requires addressing three core issues:

• Corrosion Resistance: The material must withstand long-term immersion in fresh water without rusting or pitting.

• Galling Prevention:Identical materials sliding together—especially austenitic stainless steels—are highly prone to cold welding and seizure under pressure,particularly without lubrication.

• Wear Management:To maximize service life,the system should allow the easily replaceable nut to wear sacrificially,protecting the costly screw shaft.

Recommended Material Combination

Screw Shaft: Stainless Steel (SS304/SS316/SS316L)

• Provides sufficient corrosion resistance for freshwater.

• SS316L offers improved resistance to intergranular corrosion due to lower carbon content.

• Acts as the protected core component.

Nut: Bronze Alloy

• Creates a dissimilar metal couple with the steel shaft,fundamentally eliminating galling risk.

• Softer than stainless steel,it functions as the sacrificial part,wearing preferentially to extend screw shaft life.

• Inherent self-lubricating properties ensure smooth operation in oil-free conditions.

Reversing Pawl: 2507 Duplex Stainless Steel

• The pawl experiences continuous shear and impact during reversal;duplex steel offers nearly double the yield strength of 316L.

• High hardness and exceptional resistance to pitting/crevice corrosion ensure long-term reliability in water.




In the realm of custom reciprocating screws,there is no single "best" material—only the material best suited for the specific application.The analysis above provides a brief overview.The optimal solution depends on your specific parameters and design structure.Please consult the LMT team,and we will optimize the design to find the most suitable solution for your project requirements.
