LMRK12
| Quantity: | |||||||||
|---|---|---|---|---|---|---|---|---|---|
| |||||||||

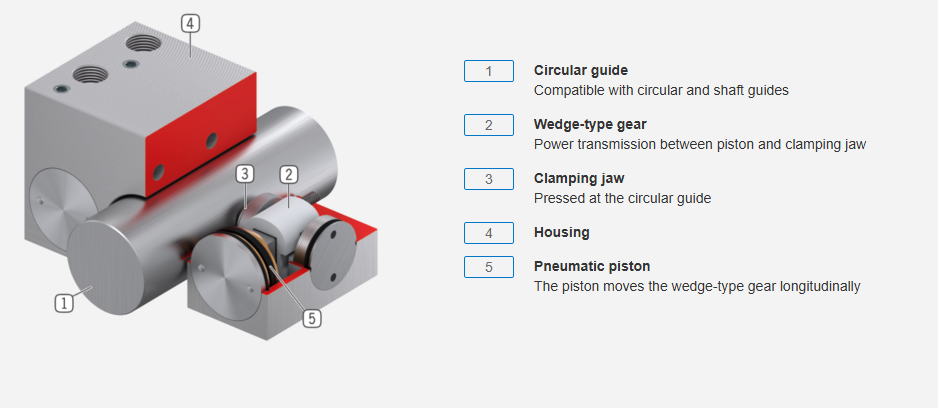

Through the principle of wedge block force expansion,air pressure is used to achieve clamping,with compact structure and strong holding force.
| Clamp types | Pneumatic normally open |
| Shaft φ | 12mm |
| Rated holding force(N) | 650N |
| Open air pressure | 0.2~0.8Mpa |
| Clamping service life | 5 million times |
| Material | Bearing steel with nickel-plated surface coating |
Spacer plate | Available(a spacer plate might have to be ordered as height compensation, depending on the height of the rail carriage) |
| Operating temperature | 0 °~70 °C |

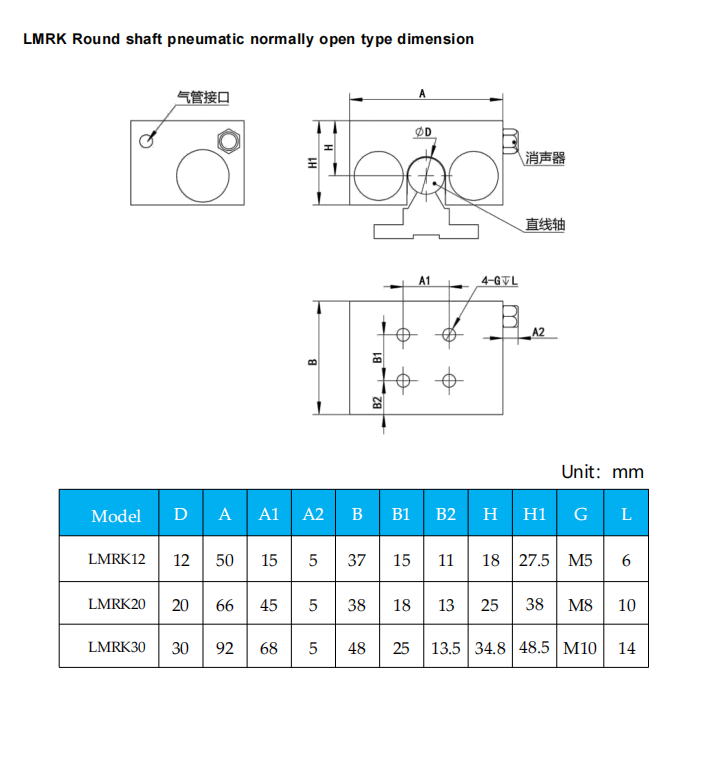

| 2D and 3D drawing | Available |
LMT Pneumatic Clamp Key Advantages:
Lead Time: huge stock.
Cost-Effective: 30%~50% cost savings.
High Durability:Up to 5 million static clamping cycles
Customizable Design:Tailored to meet specific application requirements,including force adjustments,mounting configurations.
