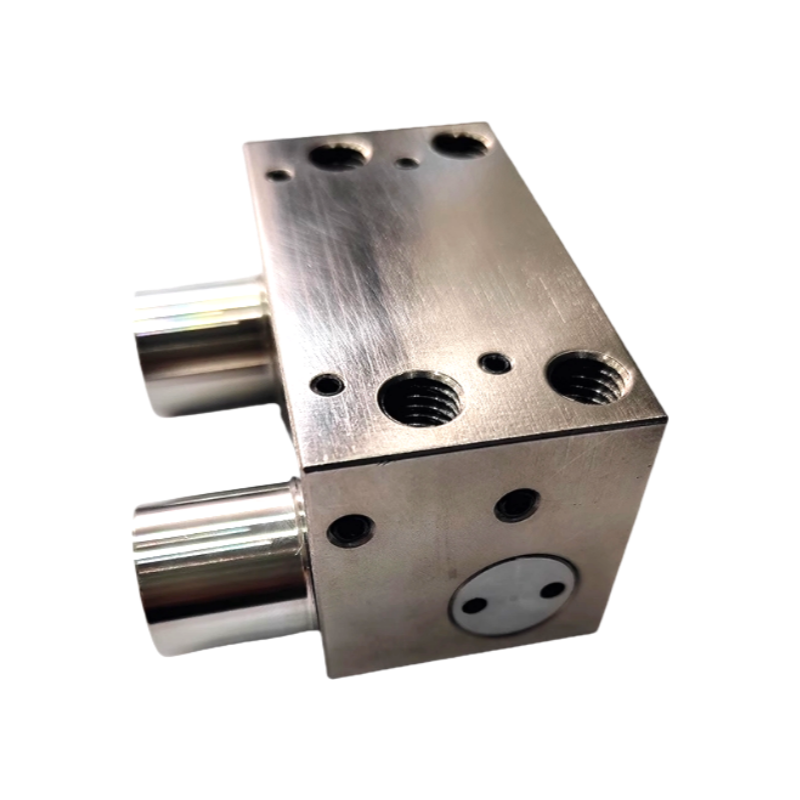

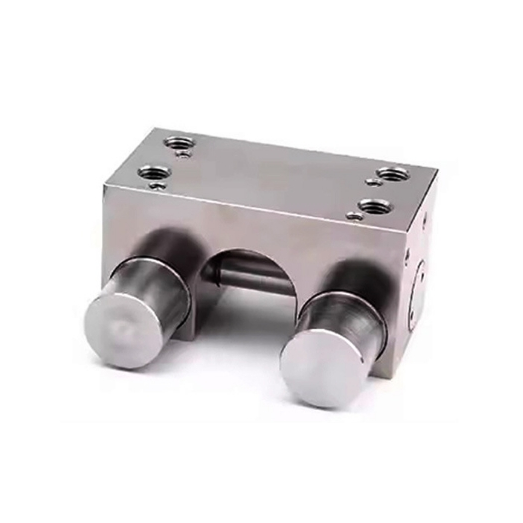

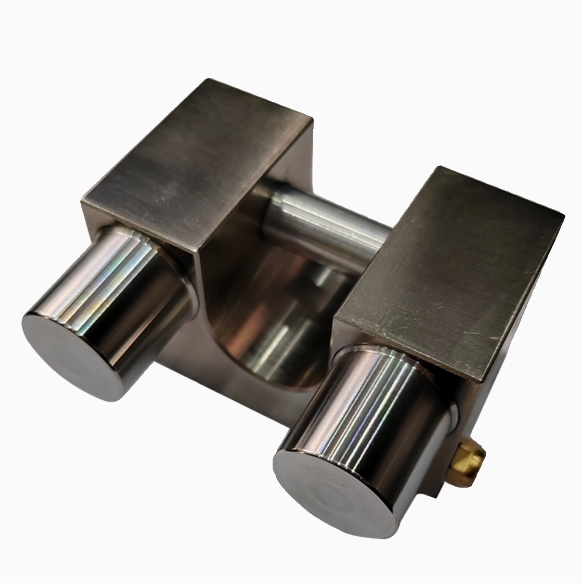

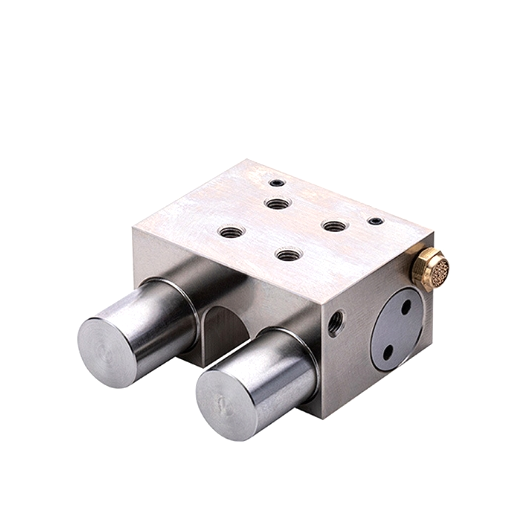

LMRKS20
| Quantity: | |||||||||
|---|---|---|---|---|---|---|---|---|---|
| |||||||||
| Clamp types | Pneumatic normally close |
| Shaft diameter | 20mm |
| Standard type rated holding force(N) | Standard connection 600N/pressurized connection 1300N |
| Open air pressure | 0.2~0.8Mpa |
| Clamping service life | 5 million times |
| Material | Bearing steel with nickel-plated surface coating |
Spacer plate | Available(a spacer plate might have to be ordered as height compensation, depending on the height of the rail carriage) |
| Operating temperature | 0 °~70 °C |
| 2D and 3D drawing | Available |
-Suitable for linear shafts.
-Designed for slide table fixation,positioning and vibration suppression.
-Normally closed operation.
-Clamping released when air pressure is applied.
-Clamping actuated by spring force when air pressure is exhausted.
-Compatible with both linear shafts and round shafts.
20mm Round Shaft Clamping and Braking Element Key Advantages:
-Lead Time:Large stock inventory.
-Cost-Effective: 30%~50% cost savings.
-High Durability:Up to 5 million static clamping cycles.

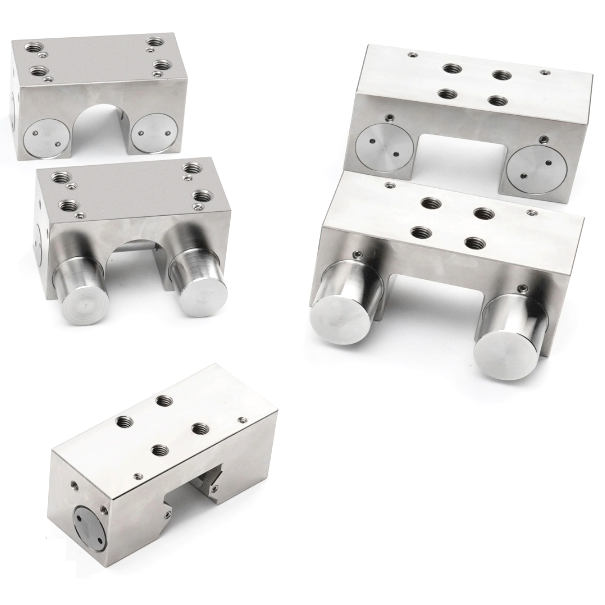

-Broad Range of Products:For circular guides and shaft guides.
-Completely replace the Zimmer brand MKRS series linear shaft clamping element.
-Customizable Design:Tailored to meet specific application requirements.
-Corrosion Resistance:The surface of the clamping element main body is nickel-plated and has good rust resistance.
