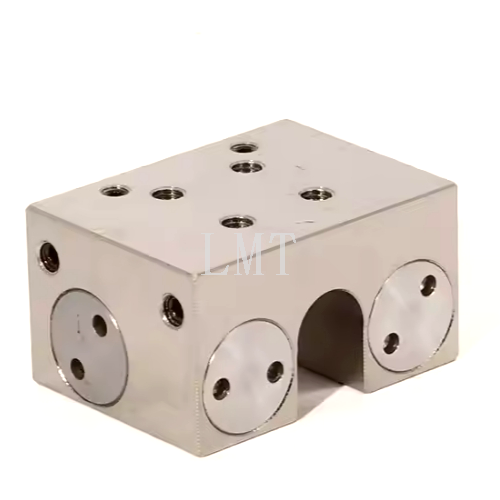

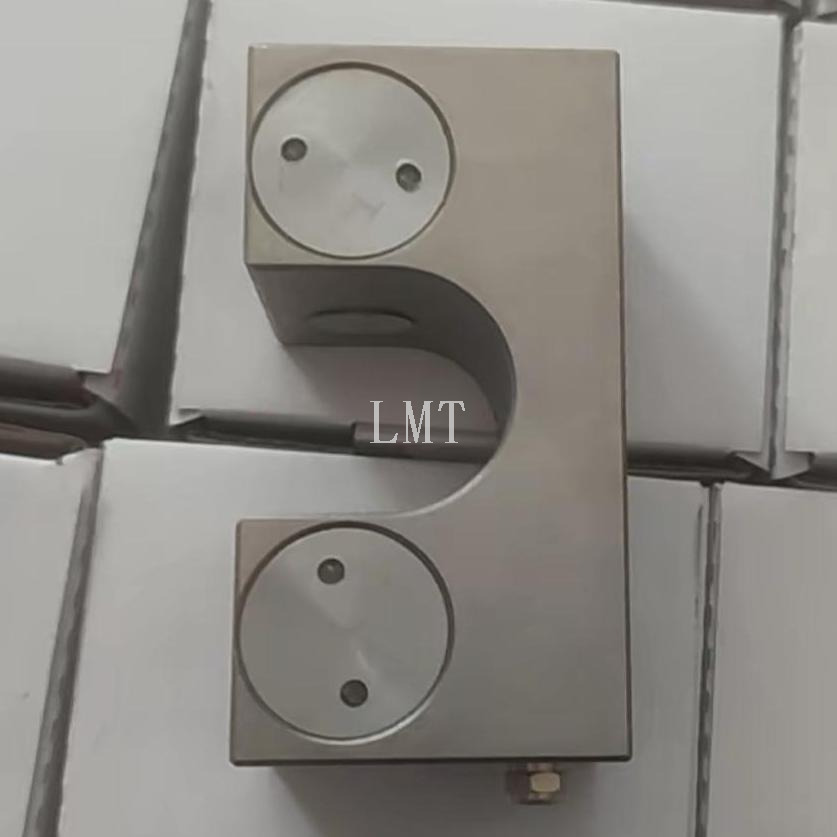

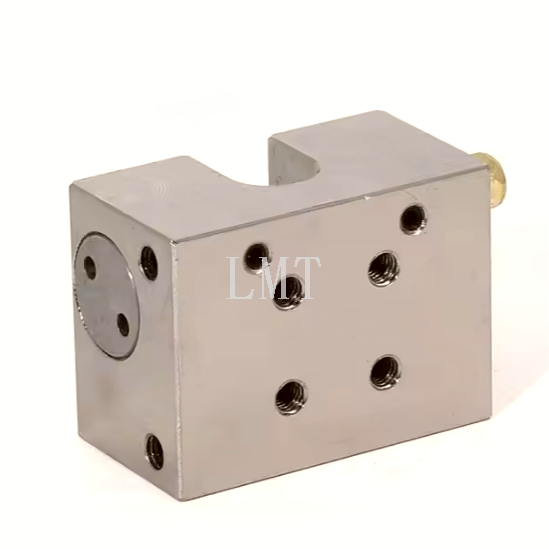

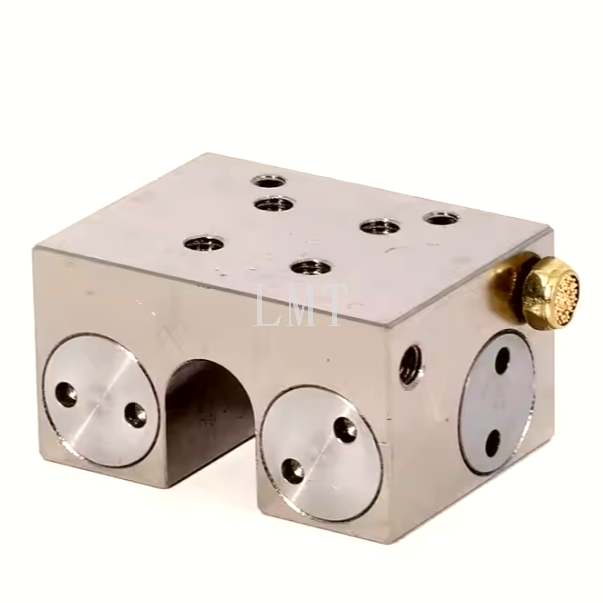

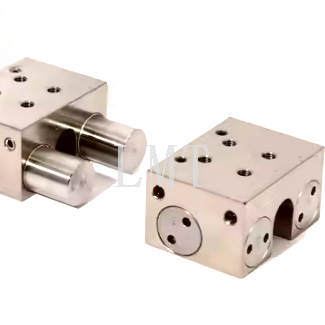

Replace MKR1200A Diameter 12mm Round Shaft Clamp Brake
Our precision pneumatic clamp brake provides the definitive solution for replacing the popular MKR1200A model on 12mm diameter round shafts.Engineered as a normally open,air-actuated system,this clamp brake delivers rapid,powerful clamping force essential for demanding automation and motion control applications.
Specification:
| Clamp types | Pneumatic normally open |
| Shaft φ | 12mm |
| Rated holding force(N) | 650N |
| Working pressure | 0.2~0.6Mpa |
| Clamping service life | 5 million times |
| Material | Bearing steel with nickel-plated surface coating |
Spacer plate | Available(a spacer plate might have to be ordered as height compensation, depending on the height of the rail carriage) |
| Operating temperature | 0 °~70 °C |
| 2D and 3D drawing | Available |
Dia 12mm Round Shaft Clamp Brake Key Advantages:
Lead time:Large stock inventory.
Cost-effective: 35% cost savings.
High Durability:Up to 5 million static clamping cycles.
Broad Range of Products:For circular guides and shaft guides.
Completely replace the Zimmer brand MKR series round shaft clamp.
Customizable Design:Tailored to meet specific application requirements.
Corrosion Resistance:The surface of the clamp brake main body is nickel-plated and has good rust resistance.
