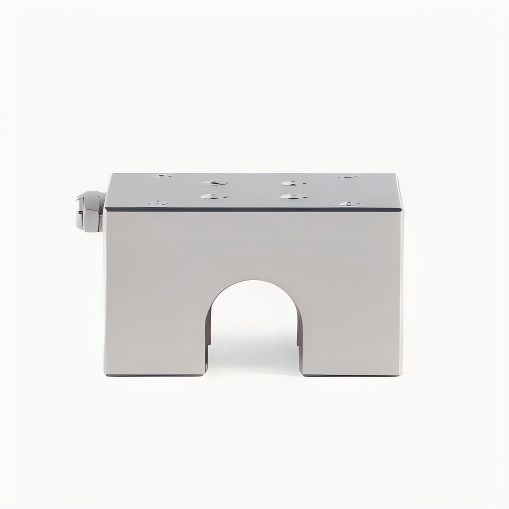

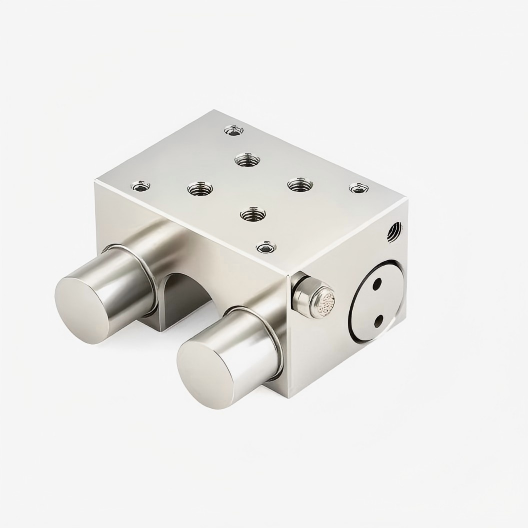

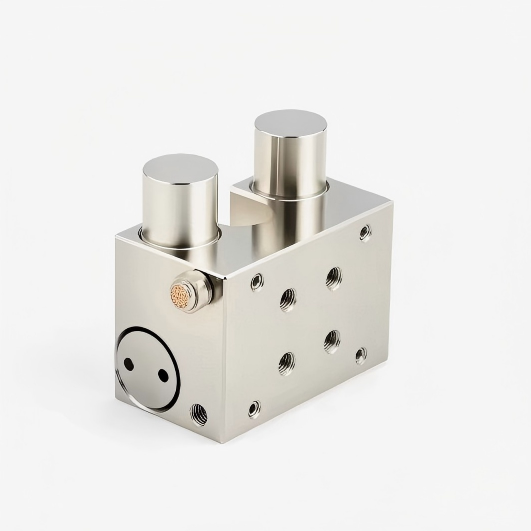

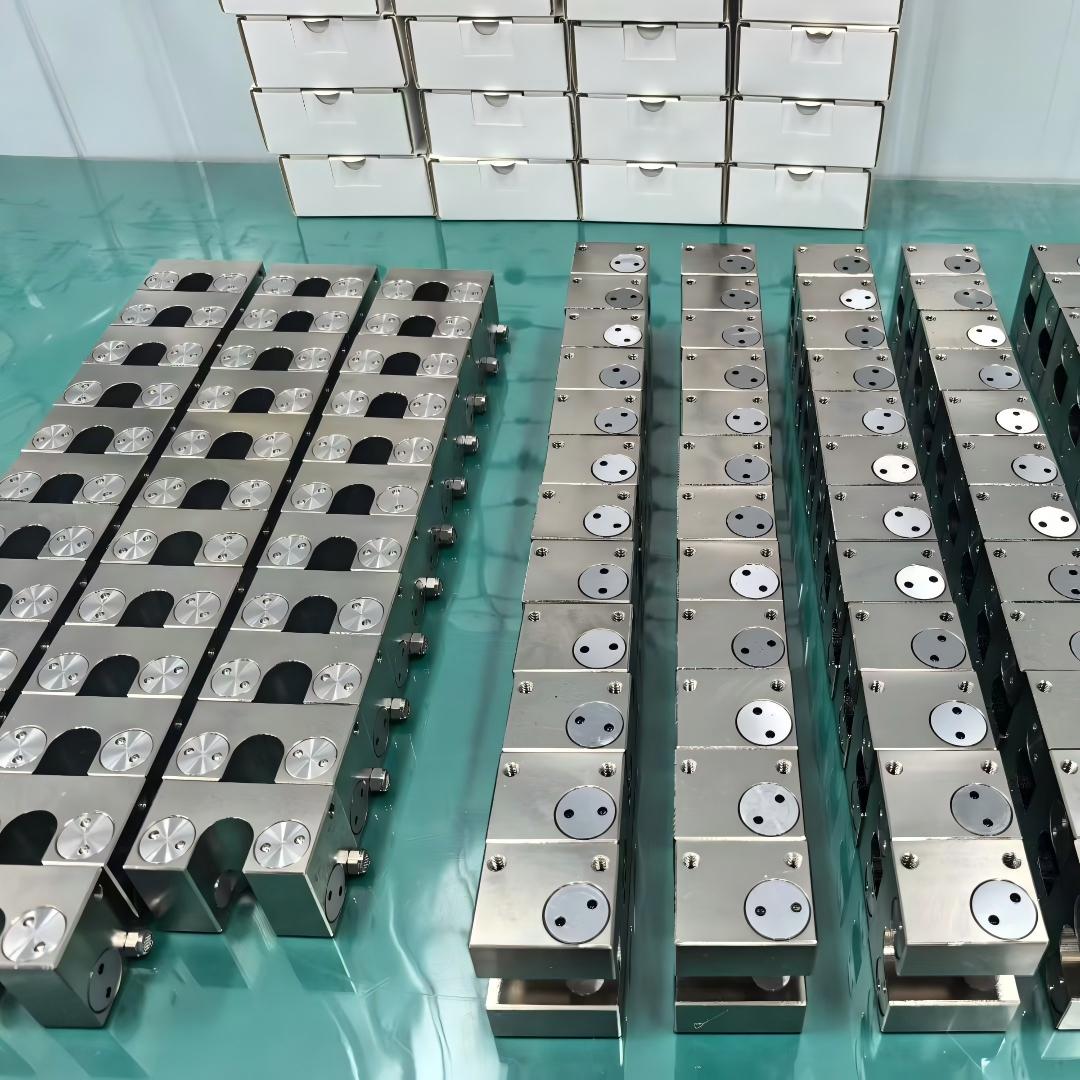

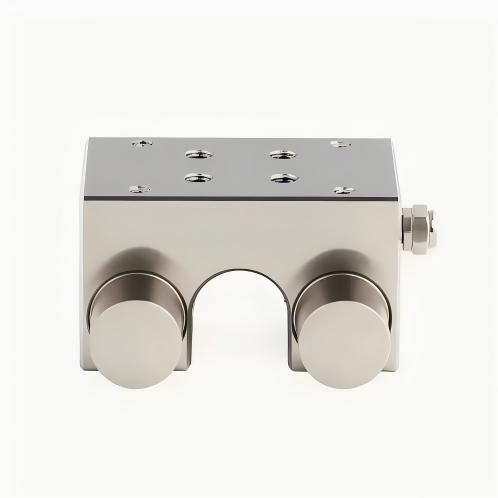

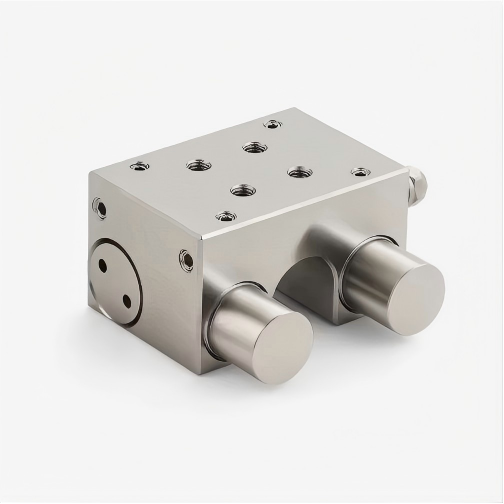

Affordable Alternative To MKRS3000A Linear Shaft Round Bar Clamping Element

Share to:

Affordable Alternative To MKRS3000A Linear Shaft Round Bar Clamping Element

Availability:

Quantity:



Clamp types: Pneumatic NC Shaft φ: 30mm Rated holding force(N):Standard connection 1050N,pressurized connection 2600N Working pressure:0.55~0.8Mpa Lead time:Large inventory in stock 2D and 3D drawing:Available
Inquire Add to Basket

Affordable Alternative To MKRS3000A Linear Shaft Round Bar Clamping Element

Upgrade your linear motion systems with our direct MKRS3000A replacement shaft clamping and braking element!Securely locks 30mm diameter linear shafts,eliminating slippage and ensuring precise positioning.Reinforces structural integrity in linear guides and motion assemblies.

Clamp types	Pneumatic normally close
Shaft diameter	30mm
Rated holding force(N)	Standard connection 1050N,pressurized connection 2600N
Open air pressure	0.55~0.8Mpa
Clamping service life	5 million times
Material	Bearing steel with nickel-plated surface coating
Spacer plate	Available(a spacer plate might have to be ordered as height compensation, depending on the height of the rail carriage)
Operating temperature	0 °~70 °C
2D and 3D drawing	Available

LMT Linear Shaft Clamping Element Key Advantages:

Lead time:Large stock inventory.
Cost-effective: 35% cost savings.
High Durability:Up to 5 million static clamping cycles.
Broad Range of Products:For circular guides and shaft guides.
Completely replace the Zimmer brand MKRS series linear shaft clamping element.
Customizable Design:Tailored to meet specific application requirements.
Corrosion Resistance:The surface of the clamp brake main body is nickel-plated and has good rust resistance.
