Tool-free opening and closing:By turning the clamping lever
Maintenance free:Up to 50,000 static clamping cycles
Lead time:Large inventory in stock
HK Manual Clamping HK2501A Linear Guide Clamp Alternatives
Designed for 25mm linear guides,this manual clamp provides immediate,manual locking.It secures the carriage directly to the rail.This ensures stable positioning,enhances system rigidity,and improves repeatability.The clamp can be used as a direct replacement for the HK series rail clamp,model HK2501A.
Technical Data:
| Clamp types | Manual |
| Linear guide size | 25mm |
| Rated holding force(N) | 1200N |
| Material | Bearing steel with nickel-plated surface coating |
Spacer plate | Available(a spacer plate might have to be ordered as height compensation, depending on the height of the rail carriage) |
| Operating temperature | 0 °~70 °C |
| Applicable guideway brand | HIWIN/THK/PMI/WON/NSK/NB/ABBA and so on |
| 2D and 3D drawing | Available |
Manual Clamping Key Advantages:
The manual clamp is suitable for most common profile rail guides.
Help you achieve 25% to 45% cost savings on your projects.
The 360° adjustable handle ensures easy operation from any angle,enhancing flexibility even in confined spaces.
Choose between standard or extended handles,adapting to varying workspace constraints and user preferences.
The 25mm manual guide clamp ensures a strong,vibration-resistant hold,preventing unwanted movement during operation.
25mm Rail Size Manual Clamp Applications:
CNC Machine Tooling: Workpiece fixturing on linear guideways;Auxiliary axis reinforcement.
Precision Measurement Systems:CMM track locking;Optical alignment rail stabilization.
Automated Assembly Lines:Conveyor track position locking;Robotic end-effector rail fixation.
Material Handling Equipment:Transfer cart track braking;Overhead crane rail alignment.
Woodworking Machinery:Panel saw guide rail securing;Router track vibration control.
Semiconductor Manufacturing:Wafer handler rail stabilization;Cleanroom automation positioning.

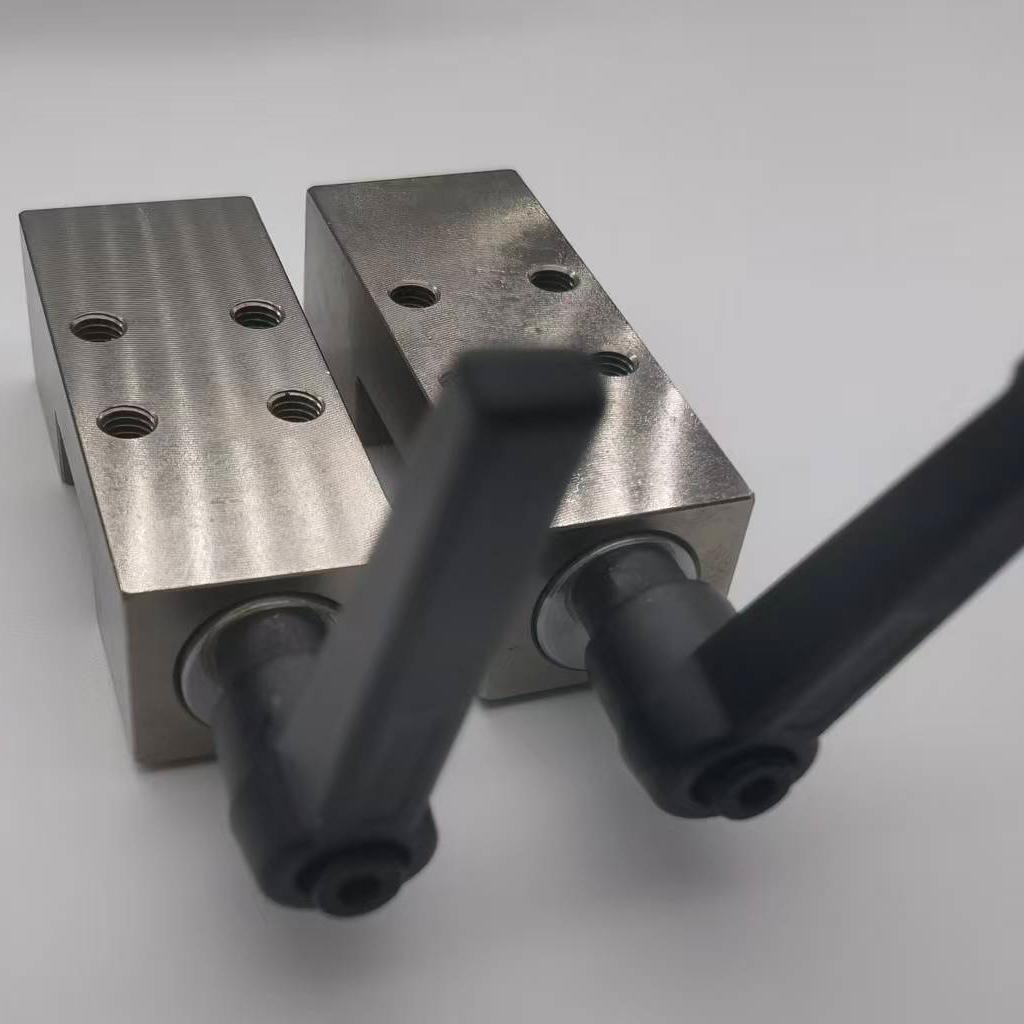

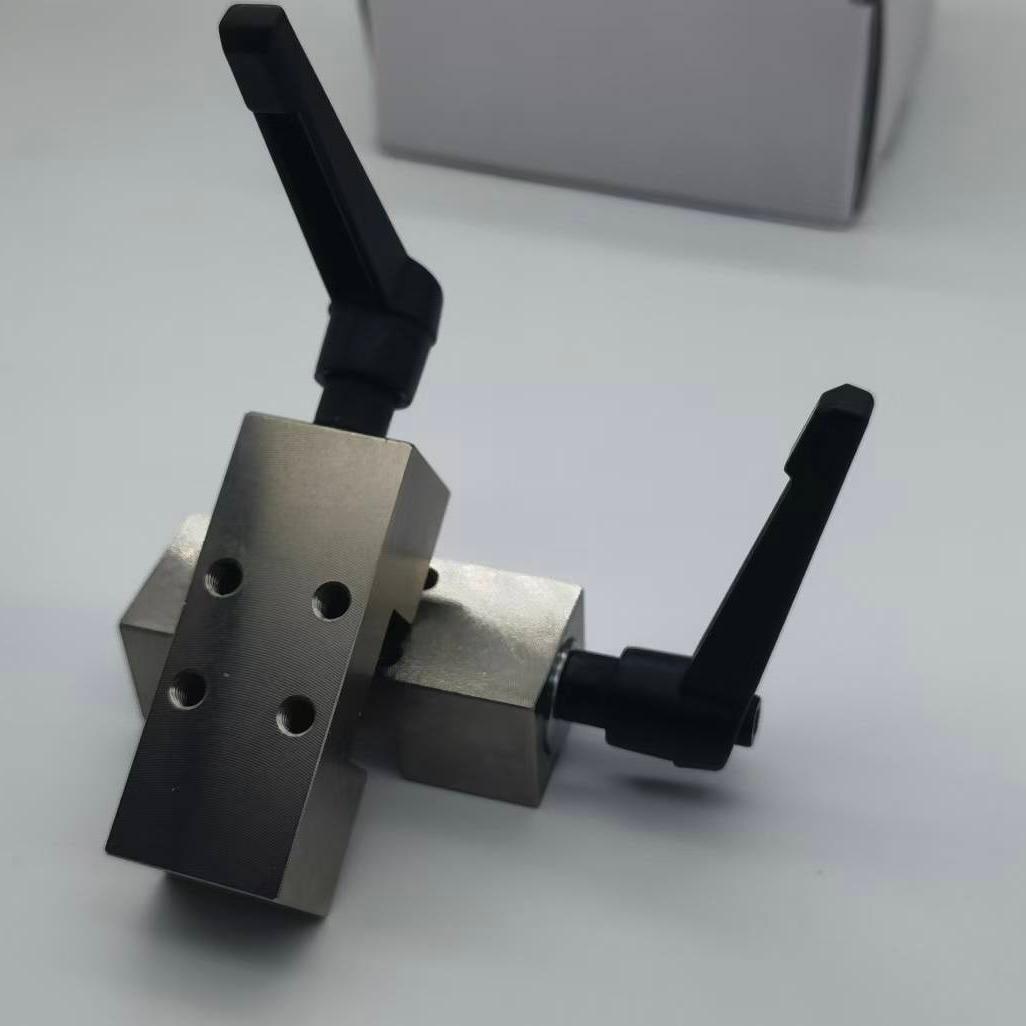

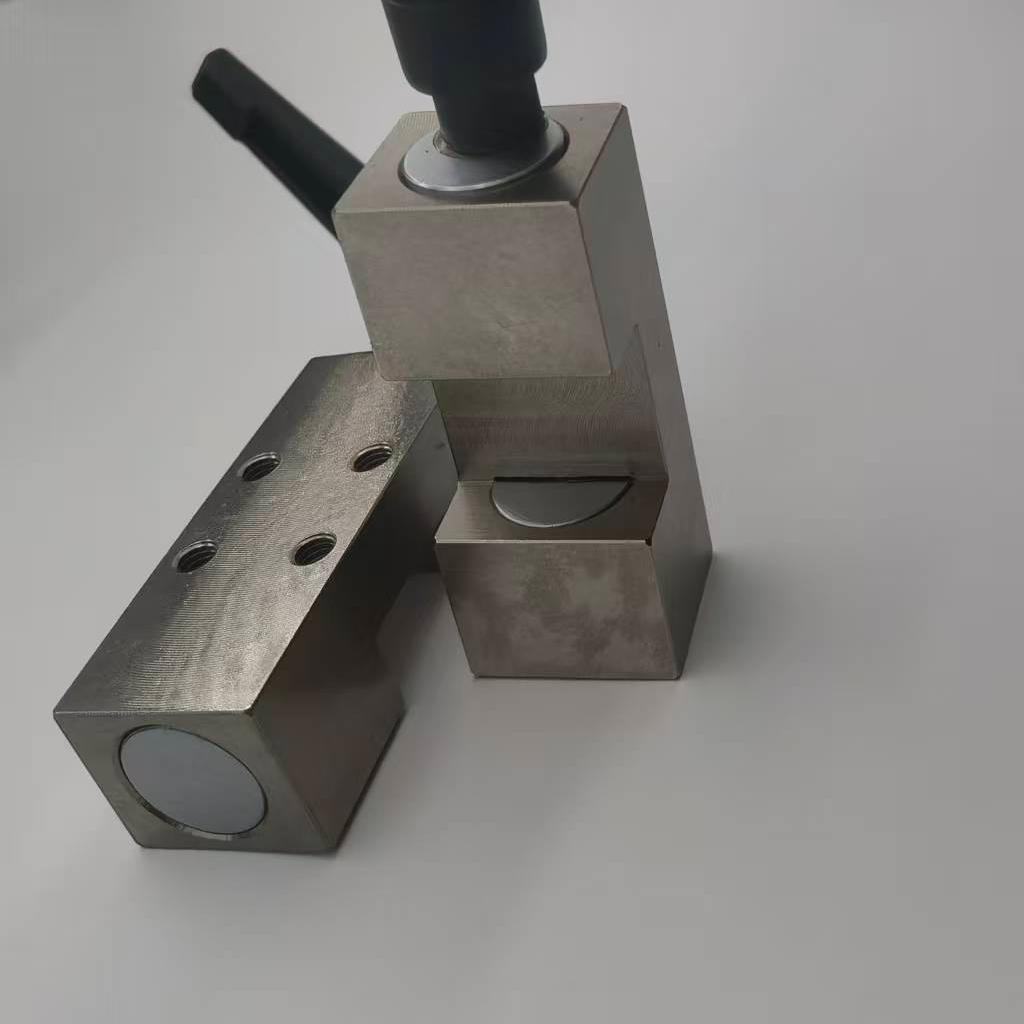

Manual Linear Guide Clamp Pictures:
