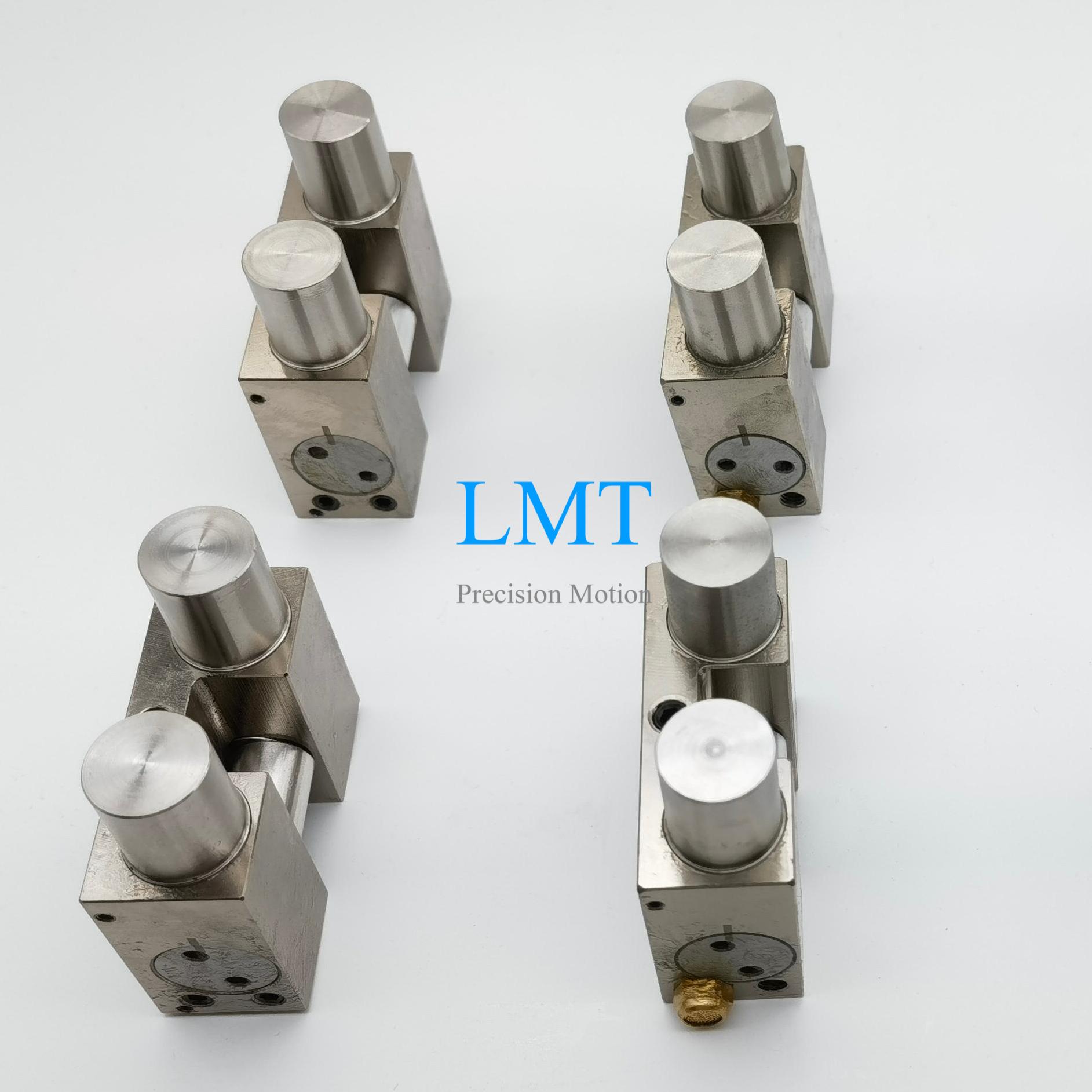

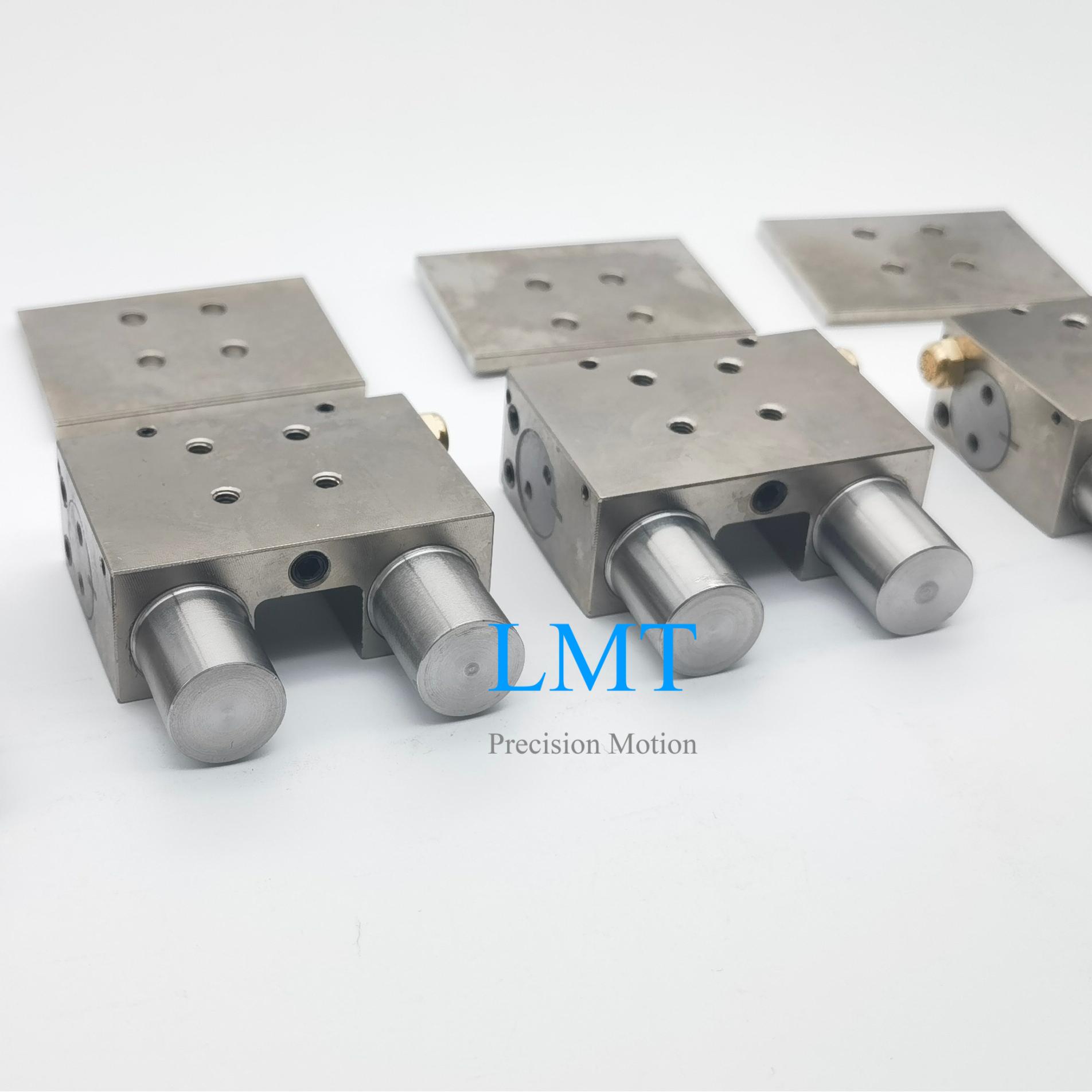

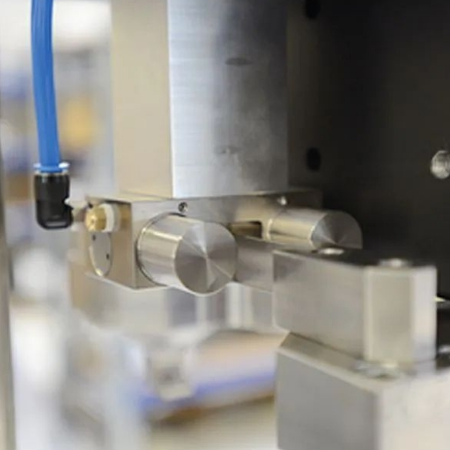

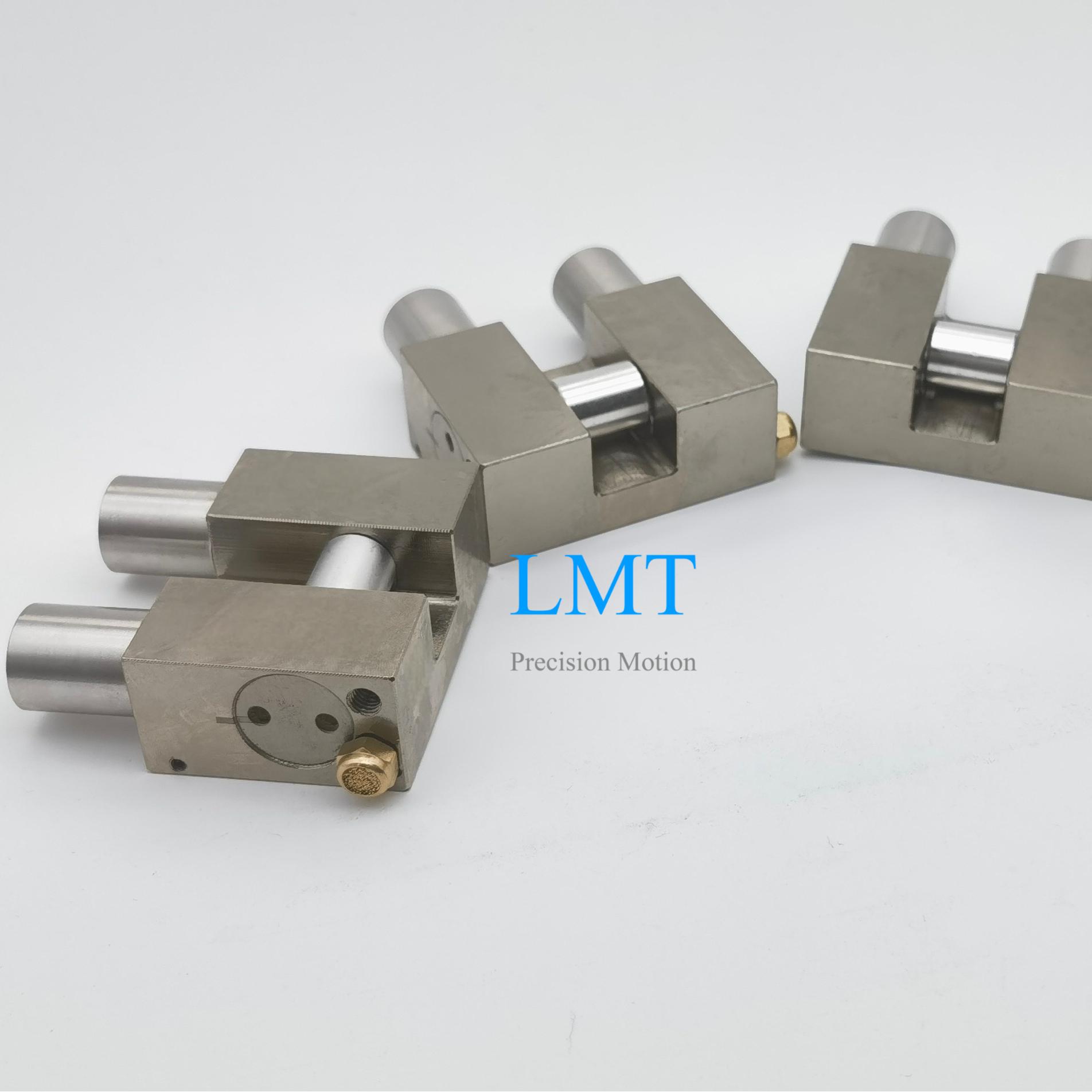

Our 35mm pneumatic normally closed clamp brake is an essential component for safety and precision in automated systems.Its universal design ensures compatibility with THK SHS35 and most other major brands of 35mm linear guides.By securely clamping the rail,it effectively locks position,prevents vibration from causing inaccuracies,and significantly increases the overall rigidity of your linear guide system.
SHS35 35mm Linear Guide Pneumatic NC Clamp Specification:
| Clamp types | Pneumatic normally close |
| Applicable guideway sizes | 35mm |
| Standard type rated holding force(N) | Standard connection 1250N,pressurized connection 3250N |
| Open air pressure | 0.55/0.4/0.3Mpa |
| Clamping service life | 5 million times |
| Material | Bearing steel with nickel-plated surface coating |
Spacer plate | Available(a spacer plate might have to be ordered as height compensation,depending on the height of the rail carriage) |
| Operating temperature | 0 °~70 °C |
| Applicable guideway brand | HIWIN/THK/PMI/WON/NSK/NB/ABBA and so on |
| 2D and 3D drawing | Available |
SHS35 Pneumatic Linear Rail Clamp Braking Advantages:
Lead time:Large stock inventory.
Cost-effective: 25%~50% cost savings.
High Durability:Up to 5 million static clamping cycles.
Broad Range of Products:For all common profile rail guides.
Completely replace the Zimmer or NBK brand MKS series linear guide clamp.
Customizable Design:Tailored to meet specific application requirements.
Corrosion Resistance:The surface of the clamp locking main body is nickel-plated and has good rust resistance.
Pneumatic NC Linear Rail Brake Video
