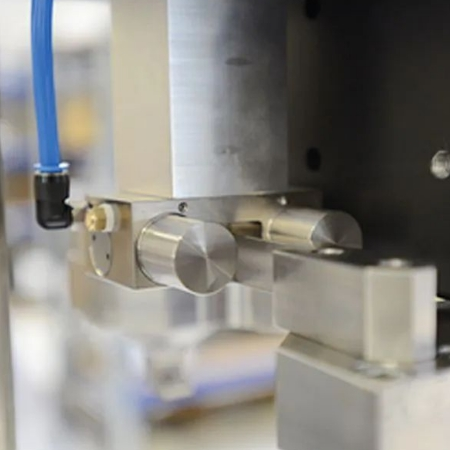

The 45mm rail pneumatic clamp is a heavy-duty,normally closed braking solution designed specifically for THK SHS45 linear guideways.Engineered for reliable safety and precision motion control,this rail clamp utilizes pneumatic pressure to release and automatically engages with powerful spring force to halt and securely hold the linear block in place during power-off or emergency situations.It provides an essential failsafe mechanism for automated machinery,CNC equipment,and robotics,ensuring immediate stoppage and preventing unintended movement for enhanced operational safety and positioning accuracy.
| Clamp Types | Pneumatic normally close |
| Applicable guideway sizes | 45mm |
| Rated holding force(N) | Standard connection 1450N,pressurized connection 3300N |
| Open air pressure | 0.55/0.4/0.3Mpa |
| Clamping service life | 5 million times |
| Material | Bearing steel with nickel-plated surface coating |

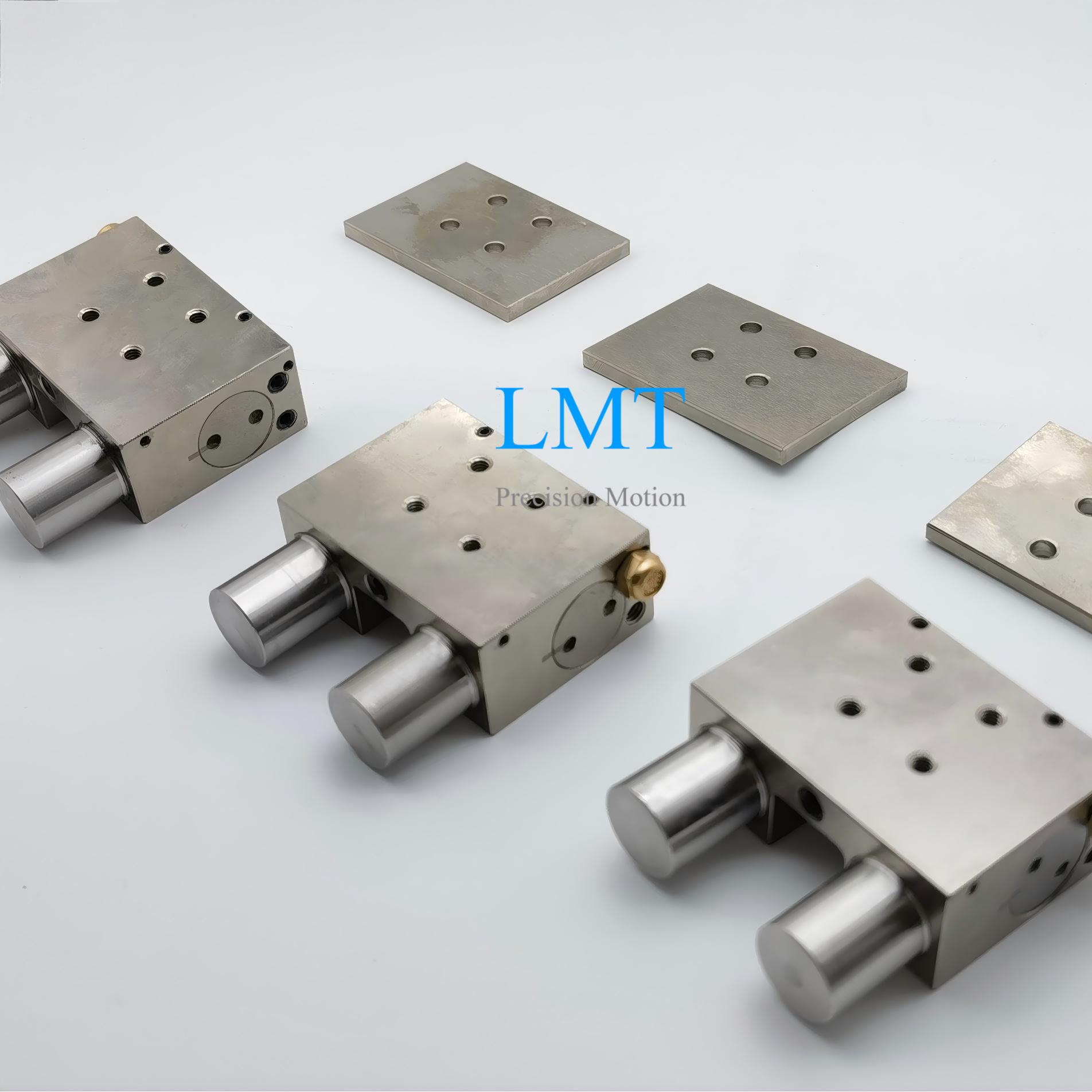

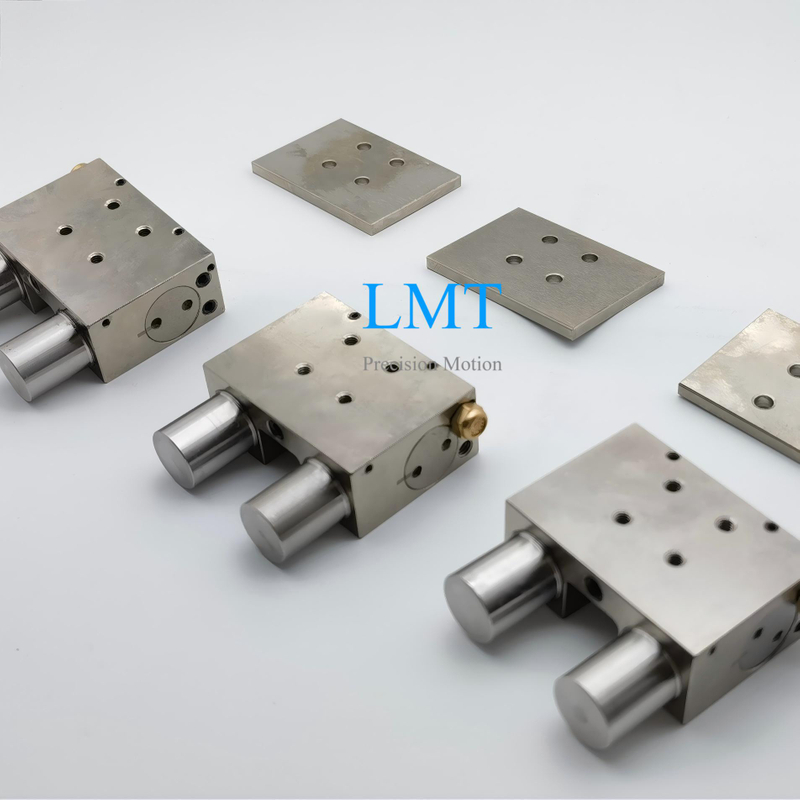

Spacer plate | Available(a spacer plate might have to be ordered as height compensation, depending on the height of the rail carriage) |
| Operating temperature | 0 °~70 °C |
| Applicable guideway brand | HIWIN/THK/PMI/WON/NSK/NB/ABBA and so on |
| 2D and 3D drawing | Available |

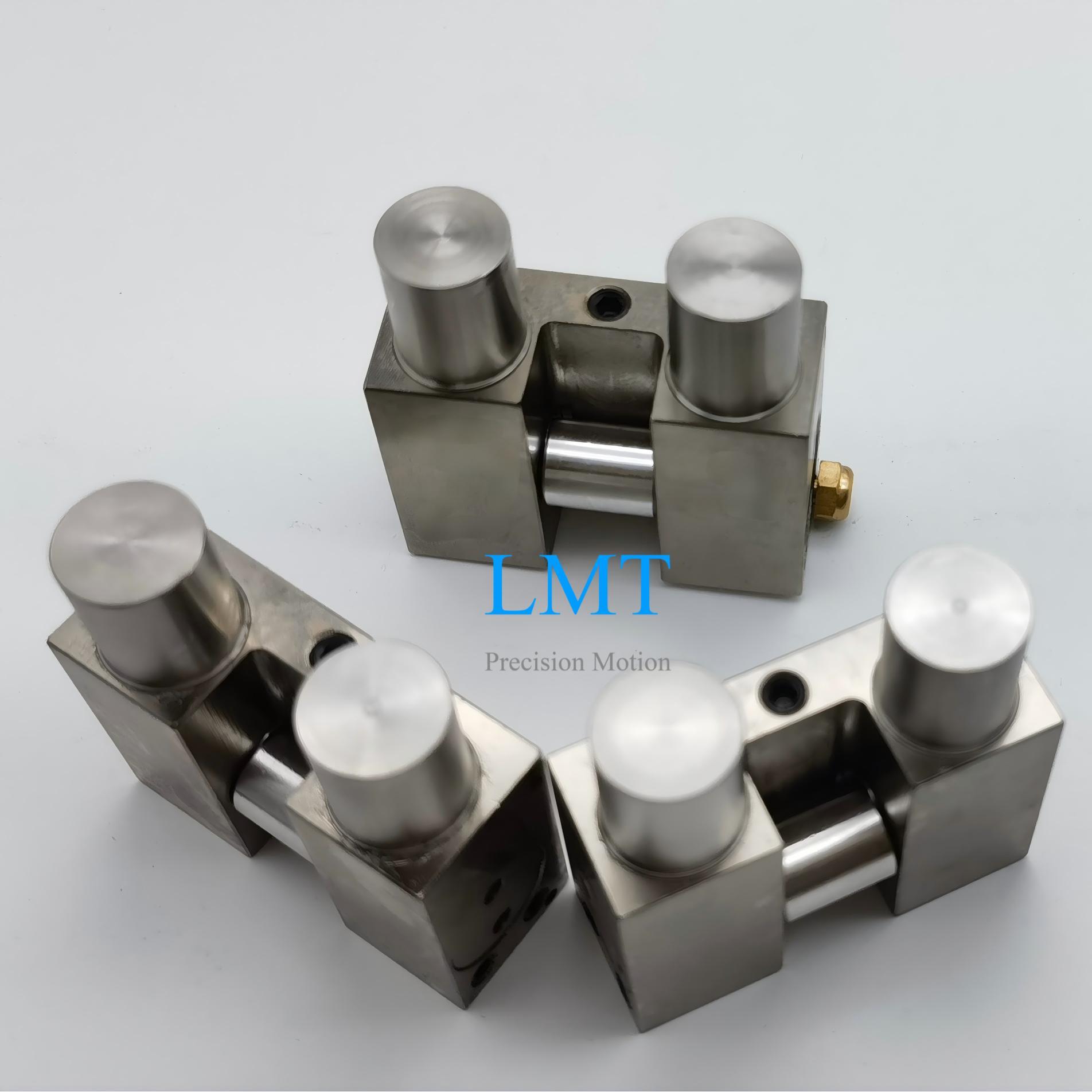

THK SHS45 Linear Guide Clamp Braking Element Key Advantages:
Lead time:Large stock inventory.
Cost-effective: 35% ~50% cost savings.
High Durability:Up to 5 million static clamping cycles.
Broad Range of Products:For all common profile rail guides.
Completely replace the Zimmer brand MKS series linear guide clamp.
Customizable Design:Tailored to meet specific application requirements.
Corrosion Resistance:The surface of the pneumatic clamp braking element main body is nickel-plated and has good rust resistance.
45mm Rail Pneumatic NC Clamp Braking Element Video
