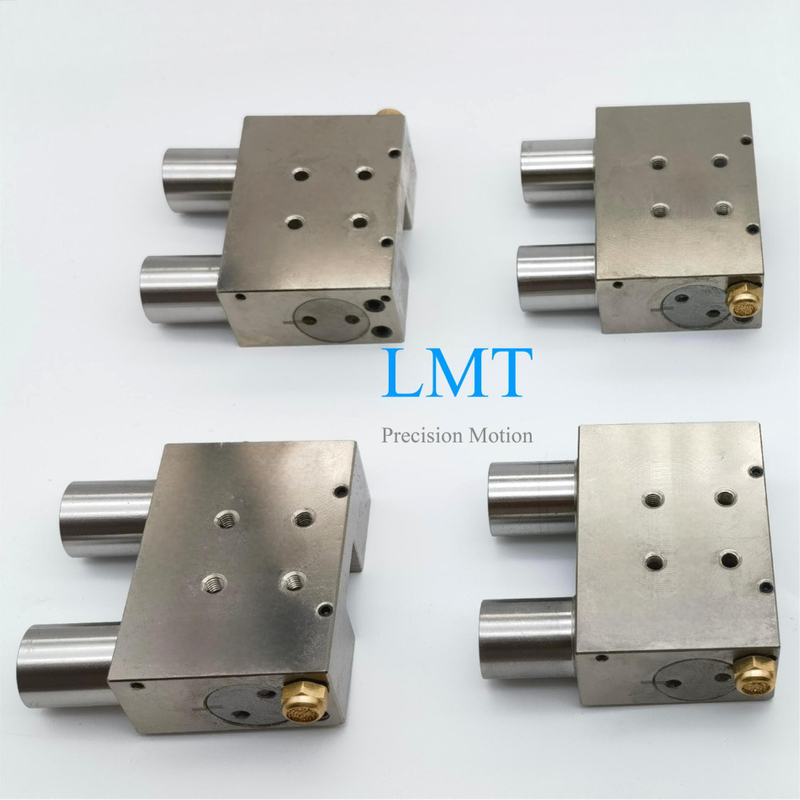

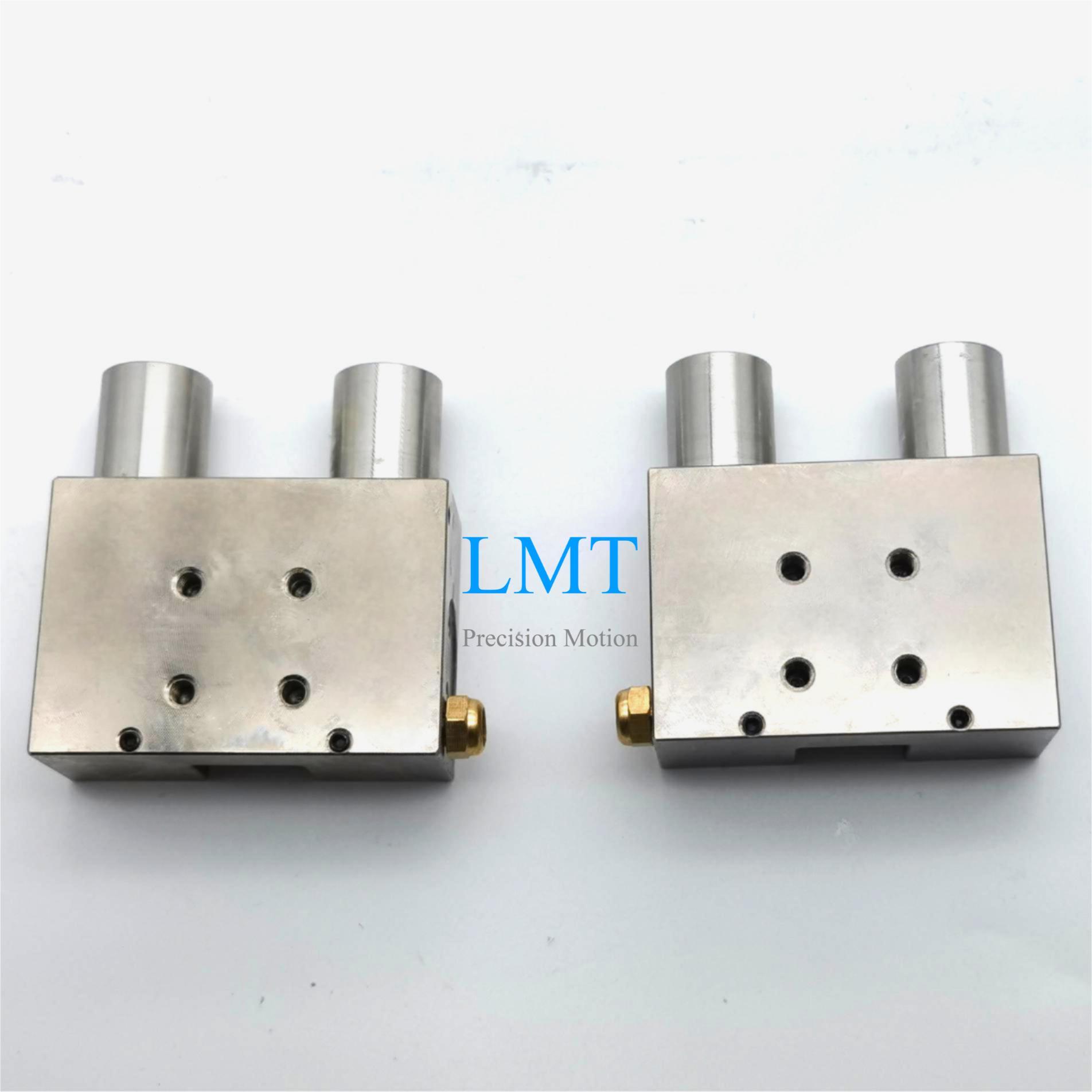

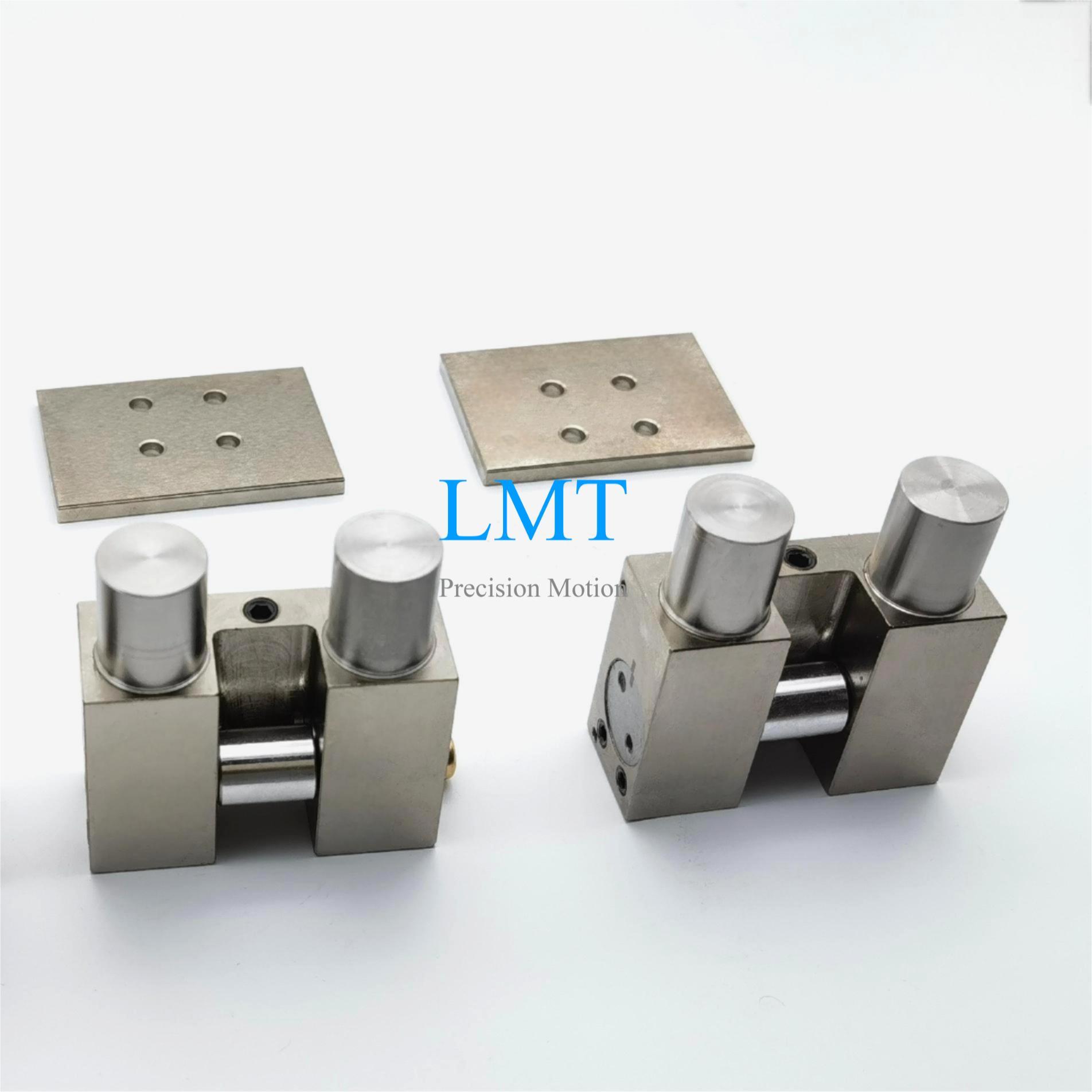

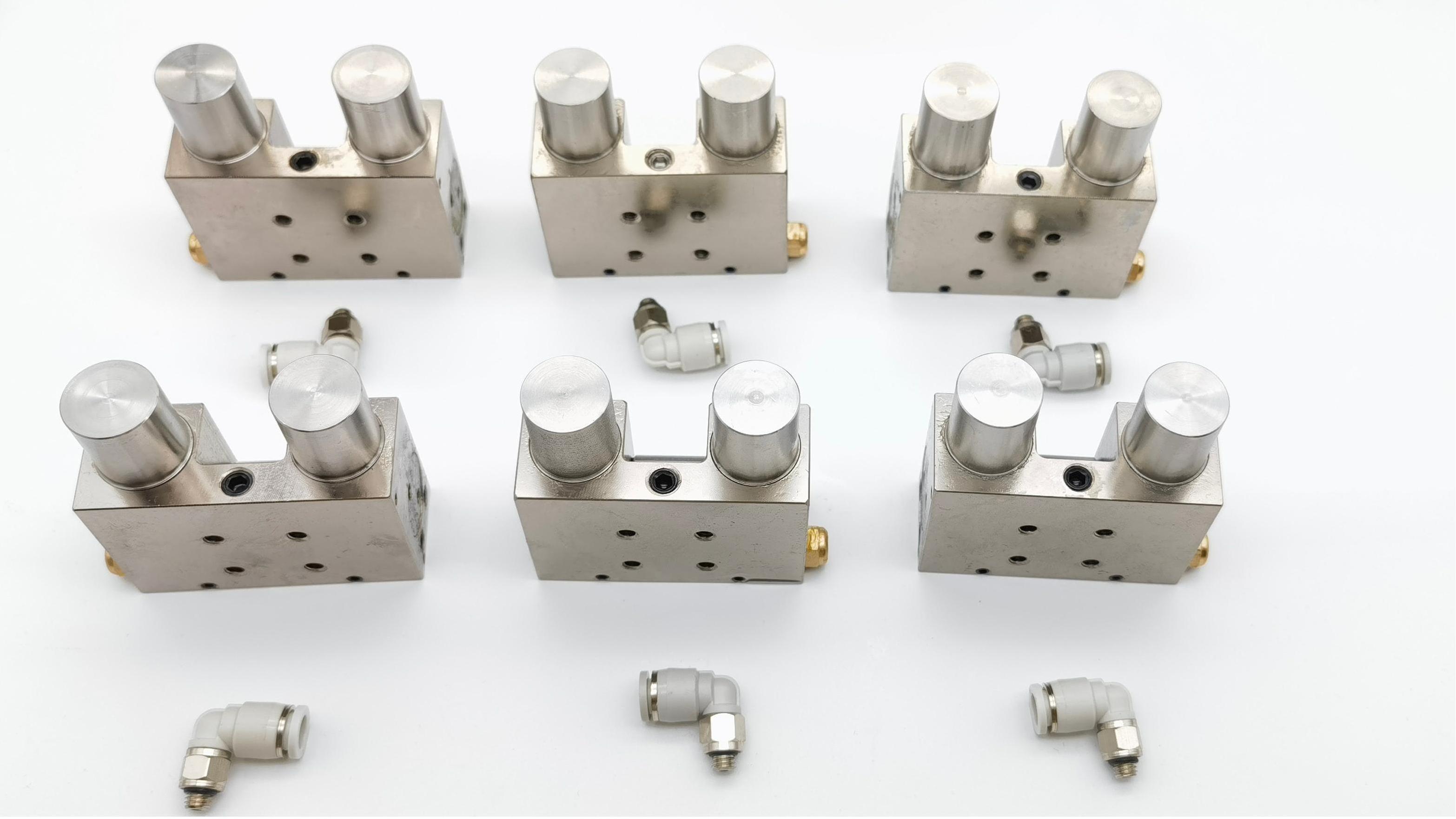

The pneumatic operation normally closed(NC)clamp braking stopper is designed for secure positioning and braking on 25mm linear guides,including models such as the THK SHS25.This clamp features a compact structure with a rust-resistant nickel-plated surface,ensuring durability and reliable performance in industrial environments.
It serves as a functional replacement for Zimmer MKS series rail clamps,offering shorter lead times and cost efficiency—helping customers save cost between 35%~60% without compromising quality.Ideal for applications requiring precise positioning,vibration damping,and enhanced rigidity,this clamp is widely used in automation,CNC machinery and precision assembly systems.
25mm Linear Guide Clamp Braking Element Specification:
| Clamp types | Pneumatic normally close |
| Linear rail sizes | 25mm |
| Standard type rated holding force(N) | Standard connection 750N,pressurized connection 1400N |
| Open air pressure | 0.55/0.4/0.3Mpa |
| Clamping service life | 5 million times |
| Material | Bearing steel with nickel-plated surface coating |
Spacer plate | Available(a spacer plate might have to be ordered as height compensation, depending on the height of the rail carriage) |
| Operating temperature | 0 °~70 °C |
| Applicable guideway brand | HIWIN/THK/PMI/WON/NSK/NB/ABBA and so on |
| 2D and 3D drawing | Available |
SHS25 Linear Rail Pneumatic NC Clamp Stopper Advantages:
Lead time:Large stock inventory.
Cost-effective: 25%~50% cost savings.
High Durability:Up to 5 million static clamping cycles.
Broad Range of Products:For all common profile rail guides.
Completely replace the Zimmer or NBK brand MKS series linear guide clamp.
Customizable Design:Tailored to meet specific application requirements.
Corrosion Resistance:The surface of the clamp locking main body is nickel-plated and has good rust resistance.
