Alternative MK-Series Pneumatic Normally Open Clamp for HGR15 Linear Guide
This product is a pneumatic normally open clamp designed as a direct alternative to the MK series.It is compatible with most 15mm linear guides available on the market.The linear guide clamp delivers precise positional locking,effectively prevents vibration,and enhances the overall rigidity of the system.
Specifications：
| Clamp types | Pneumatic normally open |
| Applicable guideway sizes | 15mm |
| Rated holding force(N) | 650N |
| Open air pressure | 0.2~0.6Mpa |
| Clamping service life | 5 million times |
| Material | Bearing steel with nickel-plated surface coating |
Spacer plate | Available(a spacer plate might have to be ordered as height compensation, depending on the height of the rail carriage) |
| Operating temperature | 0 °~70 °C |
| Applicable guideway brand | HIWIN/THK/PMI/WON/NSK/NB/ABBA and so on |

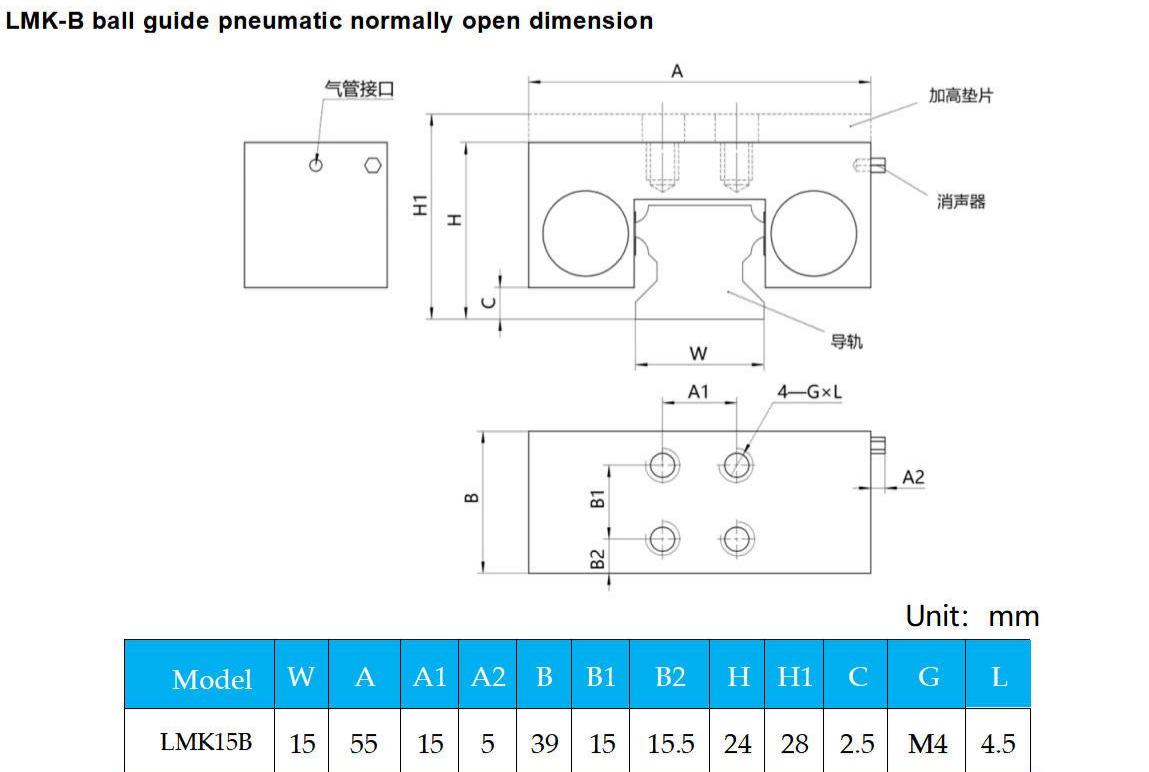

| 2D and 3D drawing | Available |
Pneumatic 15mm Rail Clamp Fixture Advantages:
Fast delivery within 2 days.
Help you save 25%~45% of the cost.
High Durability,up to 5 million static clamping cycles.
Direct replacement for Zimmer or NBK brand MK series pneumatic normally open clamping element.
This rail clamping element is compatible with most linear guide systems available on the market,including major brands such as HIWIN,THK,PMI,WON,NSK,NB,and ABBA.
Features a durable corrosion-resistant surface coating,safeguarding against rust and wear in challenging environments,ensuring extended operational life.
Securely locks 15mm linear rails in position,significantly improving system stability and machining/workpiece accuracy.
Pneumatic Normally Open Clamp Product Video
