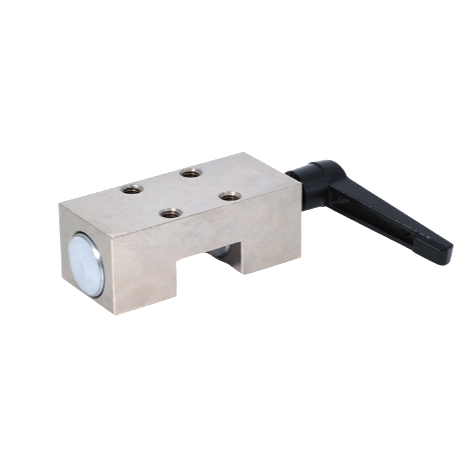

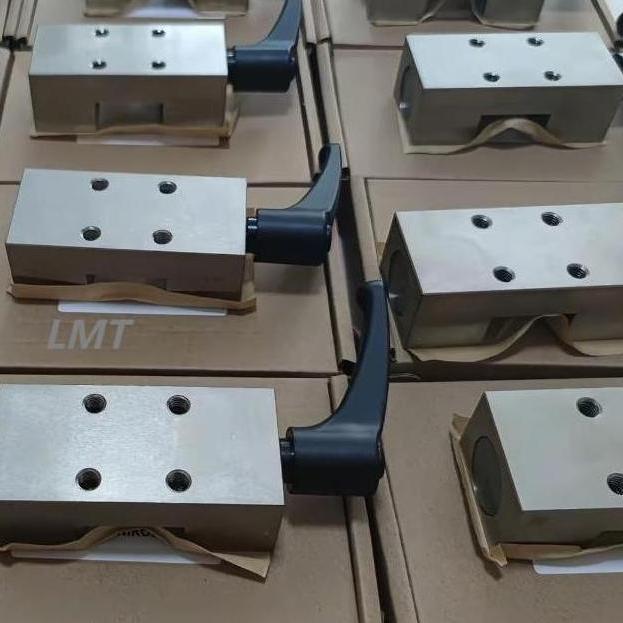

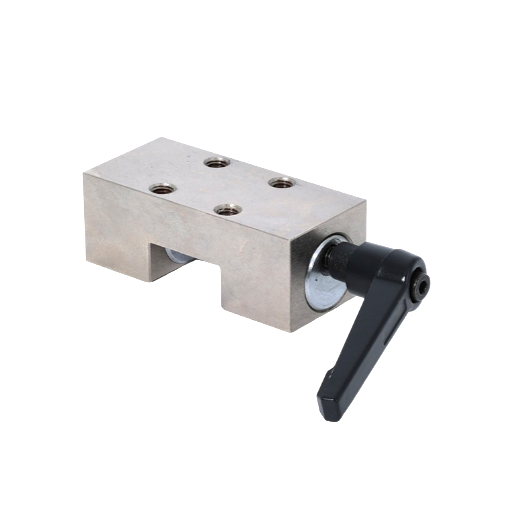

Manual Clamp Braking for 20mm Size Linear Guide Rail
This is a manual guide clamp braking.It prevents vibration and improves the rigidity and safety of linear guides.Economical and suitable for 20mm size linear guide rail.
Technical Data:
| Clamp Types | Manual |
| Applicable guideway sizes | 20mm |
| Rated holding force(N) | 1200N |
| Material | Bearing steel with nickel-plated surface coating |
Spacer plate | Available(a spacer plate might have to be ordered as height compensation, depending on the height of the rail carriage) |
| Operating temperature | 0 °~70 °C |
| Applicable guideway brand | HIWIN/THK/PMI/WON/NSK/NB/ABBA and so on |
| 2D and 3D drawing | Available |
Why Choose Our Linear Guide Clamp Brake?
Fast Delivery :Within 3~5 days.
Cost-Effective:35% cost savings.
Maintenance free:Up to 50,000 static clamping cycles.
Broad range of products:For all common profile rail guides.
Tool-free opening and closing:By turning the clamping lever.
Customizable Dimensions:Tailor linear guide clamp to your exact requirements with custom sizing options.
Handle Options:Standard or extended handles,adapting to varying workspace constraints and user preferences.
Direct Replacement for Zimmer clamp: Designed to fully replace Zimmer HK-series linear rail clamps,our product matches performance while offering superior cost efficiency.
