LMSK2001

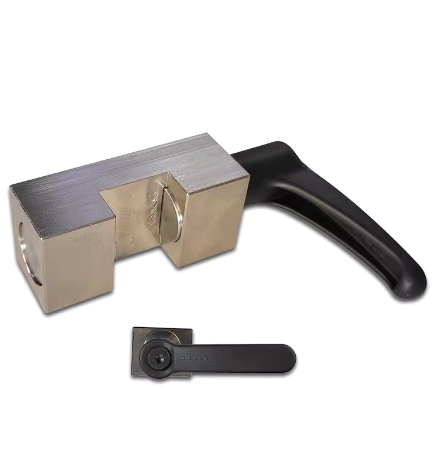

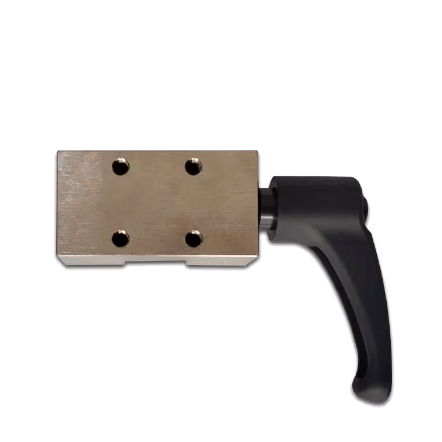

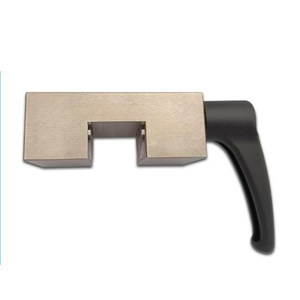

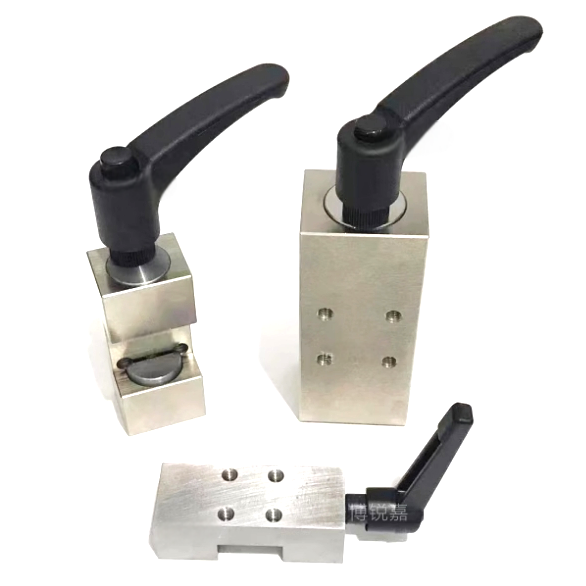

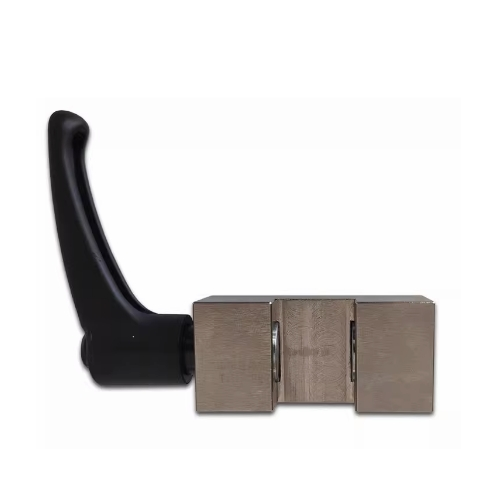

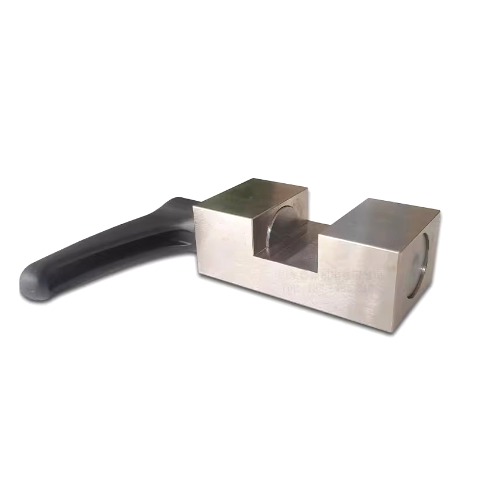

HIWIN HGR20 Manual Linear Guide Clamping Element
This manual rail clamp achieves clamping by rotating the handle.The holding force is 1200N.This clamp is compact and easy to install.
| Clamp Types | Manual |
| Applicable guideway sizes | 20mm |
| Rated holding force(N) | 1200N |
| Material | Bearing steel with nickel-plated surface coating |
Spacer plate | Available(a spacer plate might have to be ordered as height compensation, depending on the height of the rail carriage) |
| Operating temperature | 0 °~70 °C |
| Applicable guideway brand | HIWIN/THK/PMI/WON/NSK/NB/ABBA and so on |
| 2D and 3D drawing | Available |
Manual Guide Clamping Element Dimensions
Contact our sales for a quote!
