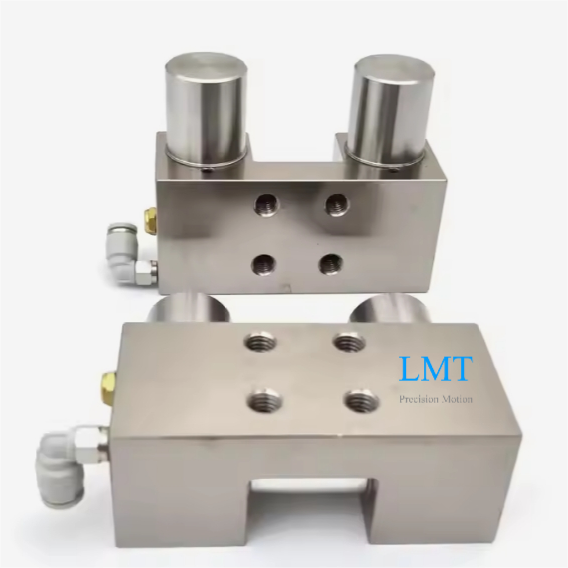

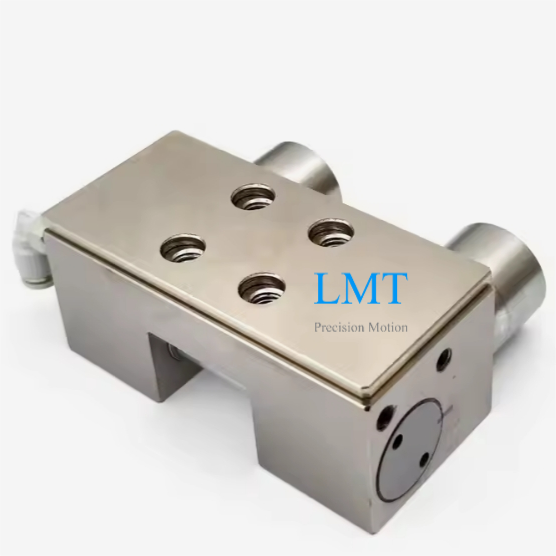

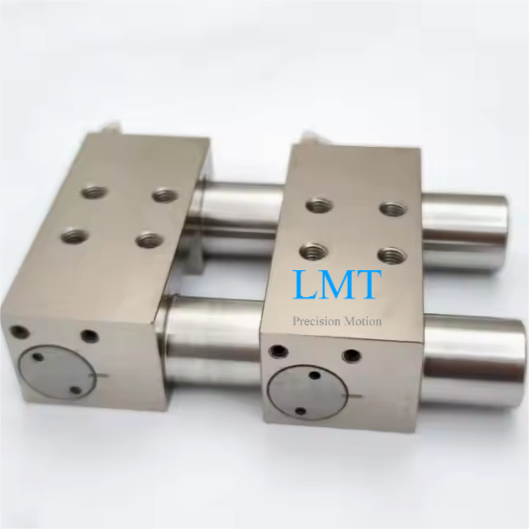

Pneumatic NC Clamp Brake for HIWIN HGH55CA HGW55CA 55mm Linear Guides.This rail clamp provides precise position locking,vibration resistance,and enhanced rigidity for HIWIN 55mm guide systems.Ideal for critical applications requiring fail-safe braking and stability in linear motion setups.
Specification:
| Clamp Types | Pneumatic normally close |
| Applicable guideway sizes | 55mm |
| Rated holding force(N) | Standard connection 1450N,pressurized connection 3300N |
| Open air pressure | 0.55/0.4/0.3Mpa |
| Clamping service life | 5 million times |
| Material | Bearing steel with nickel-plated surface coating |
Spacer plate | Available(a spacer plate might have to be ordered as height compensation, depending on the height of the rail carriage) |
| Operating temperature | 0 °~70 °C |
| Applicable guideway brand | HIWIN/THK/PMI/WON/NSK/NB/ABBA and so on |
| 2D and 3D drawing | Available |
HGH55CA HGW55CA 55mm Linear Guide Brake Clamp Key Advantages:
Lead time:Large stock inventory.
Cost-effective: 40% cost savings.
High Durability:Up to 5 million static clamping cycles
Broad Range of Products:For all common profile rail guides
Completely replace the Zimmer brand MKS series linear guide clamp.
Customizable Design:Tailored to meet specific application requirements.
Corrosion Resistance:The surface of the clamp brake main body is nickel-plated and has good rust resistance.
Pneumatic NC Clamp Brake Video
