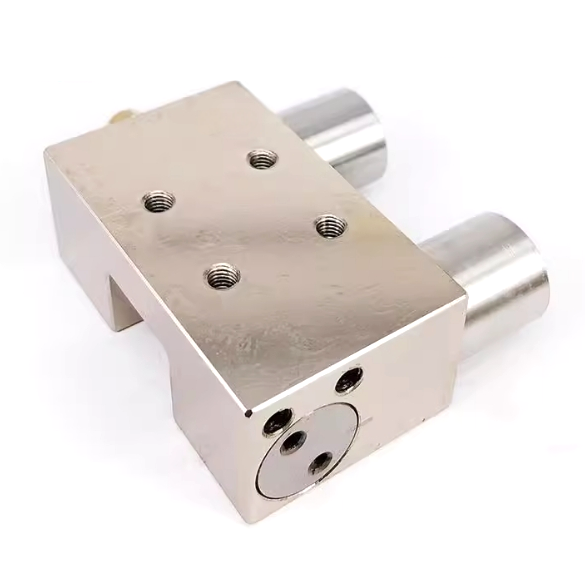

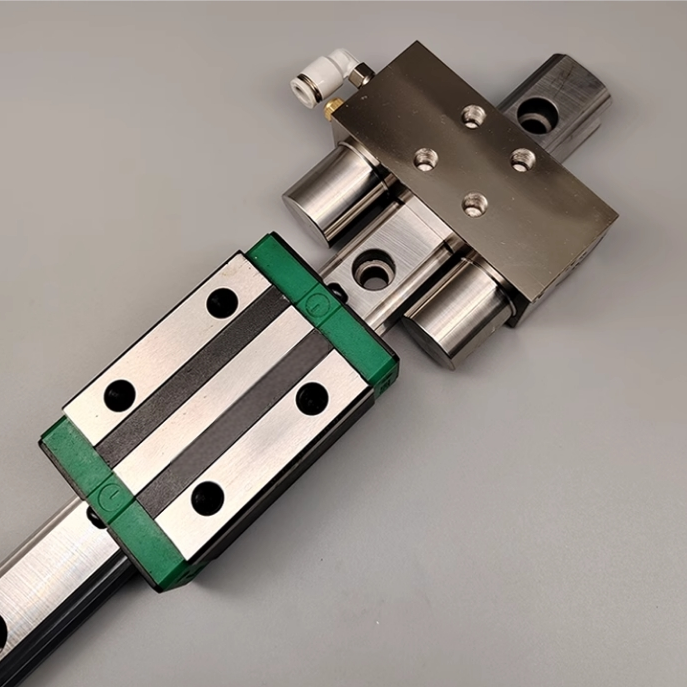

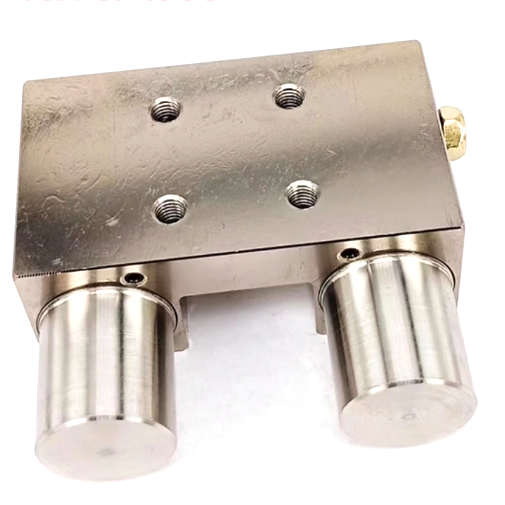

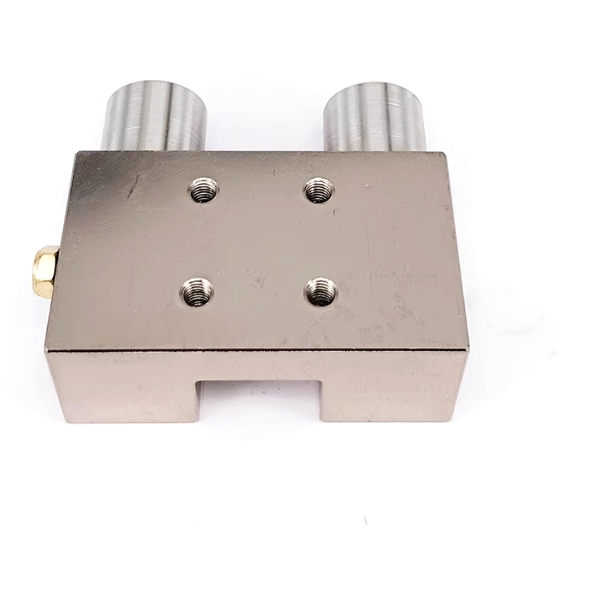

Replace MKS5501A Pneumatic Normally Close Clamp Fixture
This pneumatic normally close clamp fixture delivers reliable clamping for 55mm linear guides.As a direct replacement for MKS5501A clamps,our clamp enhances the rigidity and safety of the linear guide system.
Specification:
| Clamp Types | Pneumatic normally close |
| Applicable guideway sizes | 55mm |
| Rated holding force(N) | 1450/3300N(Standard) |
| Open air pressure | 0.55/0.4/0.3Mpa |
| Clamping service life | 5 million times |
| Material | Bearing steel with nickel-plated surface coating |
Spacer plate | Available(a spacer plate might have to be ordered as height compensation, depending on the height of the rail carriage) |
| Operating temperature | 0 °~70 °C |
| Applicable guideway brand | HIWIN/THK/PMI/WON/NSK/NB/ABBA and so on |
| 2D and 3D drawing | Available |
Our Linear Guide Clamp Brake Key Advantages:
Lead time:Within 3 days.
Cost-effective: 50% cost savings.
High Durability:Up to 5 million static clamping cycles
Broad Range of Products:For all common profile rail guides
Completely replace the Zimmer brand MKS series linear guide clamp.
Customizable Design:Tailored to meet specific application requirements,including force adjustments,mounting configurations,and compatibility with various 55mm rail profiles.
Pneumatic Normally Close Clamp Brake Video
