LMSK3001

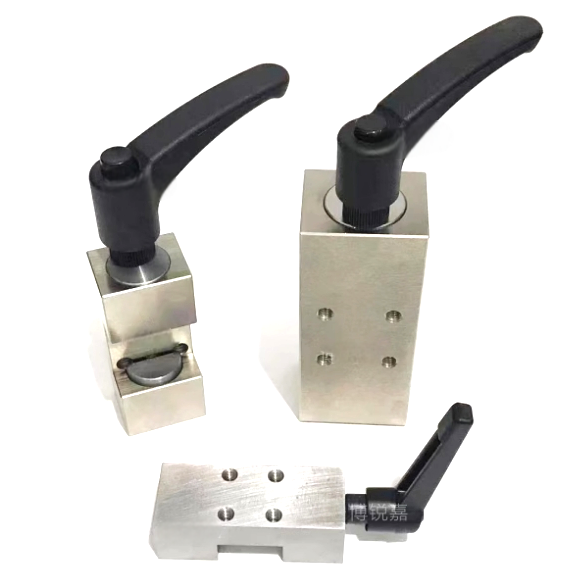

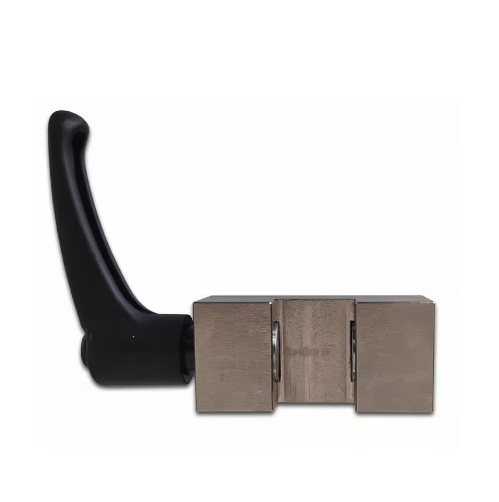

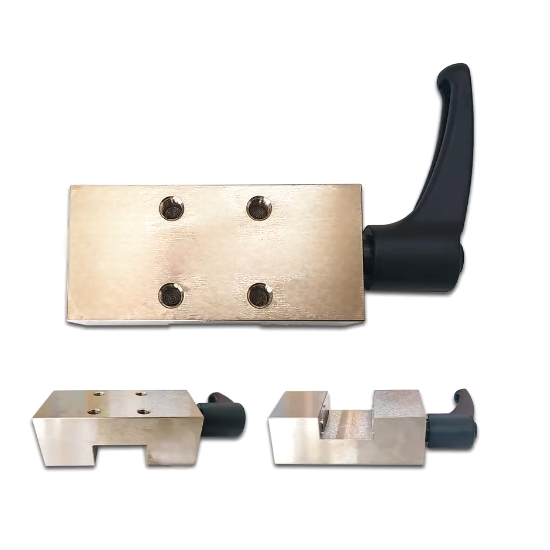

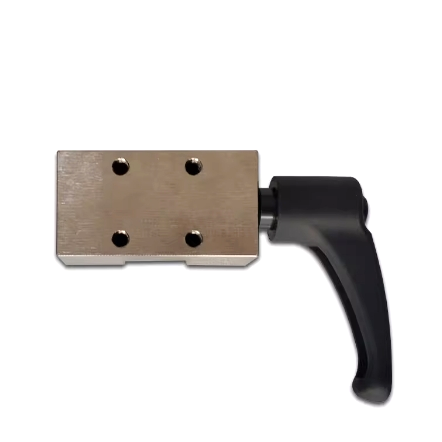

Manual Clamping for 30mm HIWIN HGR30 Linear Guide
This clamp realizes clamping by rotating the handle and is suitable for 30mm ball linear rail.The clamping force is 2000 N. The clamp is compact and easy to install.
| Clamp Types | Manual |
| Applicable guideway sizes | 30mm |
| Rated holding force(N) | 2000N |
| Material | Bearing steel with nickel-plated surface coating |
Spacer plate | Available(a spacer plate might have to be ordered as height compensation, depending on the height of the rail carriage) |
| Operating temperature | 0 °~70 °C |
| Applicable guideway brand | HIWIN/THK/PMI/WON/NSK/NB/ABBA and so on |
| 2D and 3D drawing | Available |
Manual Rail Clamping Element Dimensions
Contact our sales for a quote!
