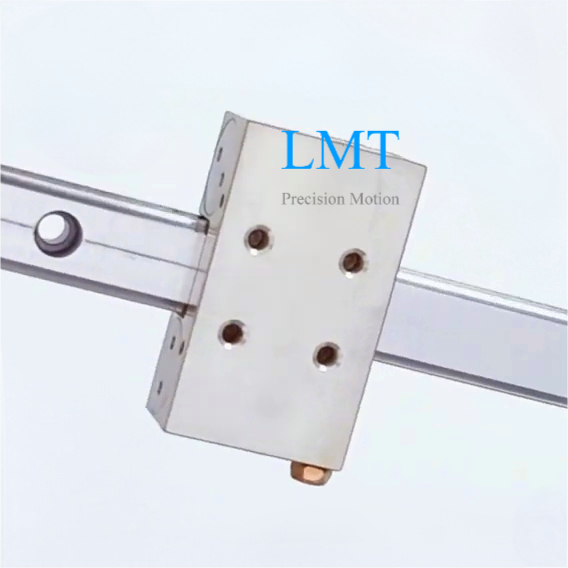

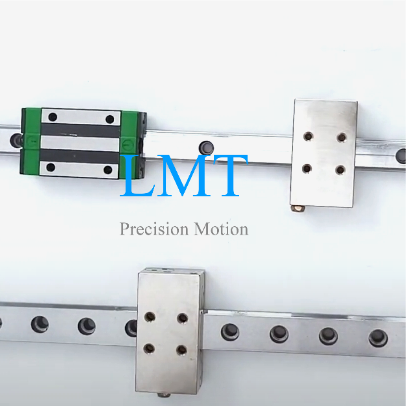

Pneumatic Normally Open Clamp Fixture for 55mm Linear Guide
This industrial-grade pneumatic clamp fixture features a fail-safe Normally Open (NO) design specifically engineered for 55mm linear guide rails.Utilizing air pressure for actuation,it delivers instant clamping force to eliminate vibration,enhance system rigidity,and secure precise positioning during machining,automation,or high-load operations.
Specifications：
| Clamp types | Pneumatic normally open |
| Linear guideway sizes | 55mm |
| Rated holding force(N) | 3000N |
| Open air pressure | 0.2~0.6Mpa |
| Clamping service life | 5 million times |
| Material | Bearing steel with nickel-plated surface coating |
Spacer plate | Available(a spacer plate might have to be ordered as height compensation, depending on the height of the rail carriage) |
| Operating temperature | 0 °~70 °C |
| Applicable guideway brand | HIWIN/THK/PMI/WON/NSK/NB/ABBA and so on |
| 2D and 3D drawing | Available |
55mm Linear Rail Pneumatic NO Clamp Fixture Advantages:
Fast delivery within 2 days.
Help you save 25%~45% of the cost.
Direct replacement for Zimmer and NBK brand MK series clamp fixture.
High durability,up to 5 million static clamping cycles.
This rail clamping element is compatible with most linear guide systems available on the market,including major brands such as HIWIN,THK,PMI,WON,NSK,NB,and ABBA.
Pneumatic Normally Open Clamp Video
