Tool-free opening and closing:By turning the clamping lever
Maintenance free:Up to 50,000 static clamping cycles
Lead time:Large inventory in stock
Universal 30mm Manual Rail Clamp – Fits most linear guide rails!Enhance rigidity and precision positioning while preventing vibrations.Directly replaces popular HK3001A manual rail clamps.Heavy-duty construction ensures reliable locking for industrial applications.Large stock available for immediate shipping. Request your quote today!
Technical Data:
| Clamp types | Manual |
| Linear guide size | 30mm |
| Rated holding force(N) | 2000N |
| Material | Bearing steel with nickel-plated surface coating |
Spacer plate | Available(a spacer plate might have to be ordered as height compensation, depending on the height of the rail carriage) |
| Operating temperature | 0 °~70 °C |
| Applicable guideway brand | HIWIN/THK/PMI/WON/NSK/NB/ABBA and so on |
| 2D and 3D drawing | Available |
30mm Manual Rail Lock Clamp Key Advantages:
The manual clamp is suitable for all common profile rail guides.
The 360° adjustable handle ensures easy operation from any angle,enhancing flexibility even in confined spaces.
Choose between standard or extended handles,adapting to varying workspace constraints and user preferences.
The manual locking mechanism ensures a strong,vibration-resistant hold,preventing unwanted movement during operation.
Industrial Applications of 30mm Manual Rail Clamp:
CNC Machine Tooling: Workpiece fixturing on linear guideways;Auxiliary axis reinforcement.
Precision Measurement Systems:CMM track locking;Optical alignment rail stabilization.
Automated Assembly Lines:Conveyor track position locking;Robotic end-effector rail fixation.
Material Handling Equipment:Transfer cart track braking;Overhead crane rail alignment.
Woodworking Machinery:Panel saw guide rail securing;Router track vibration control.
Semiconductor Manufacturing:Wafer handler rail stabilization;Cleanroom automation positioning.

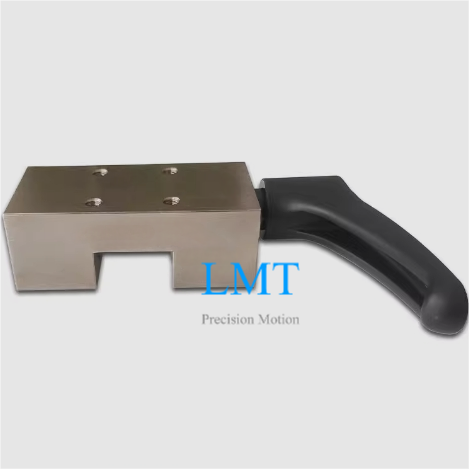

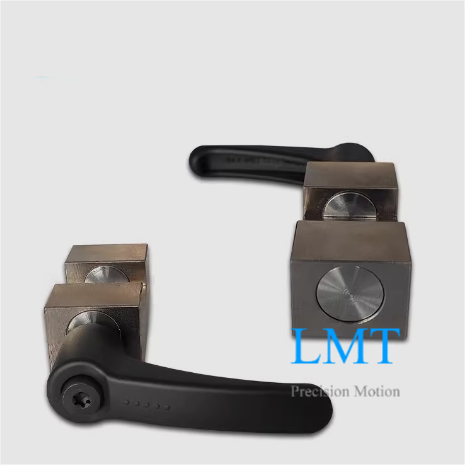

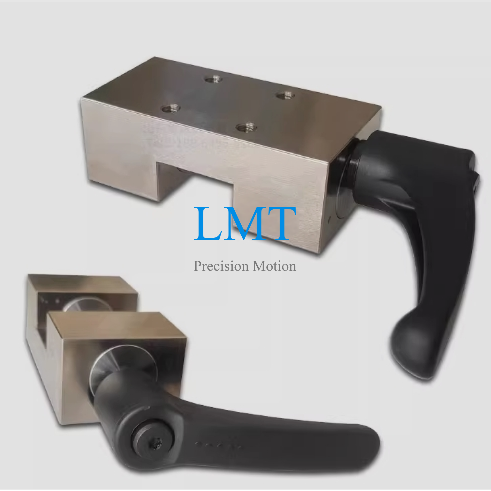

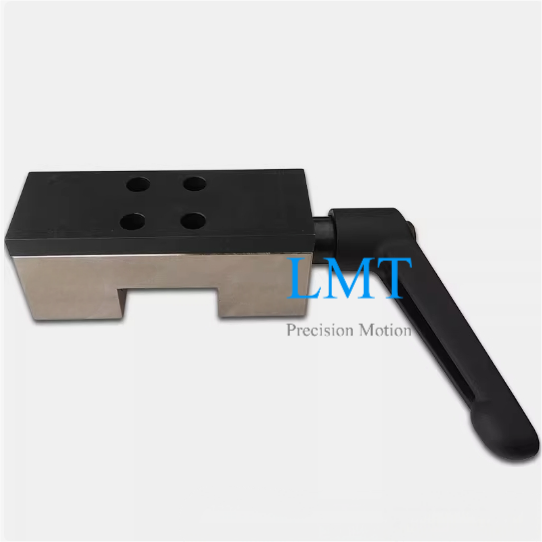

Manual Locking Guide Clamp Pictures
