Tool-free opening and closing:By turning the clamping lever
Maintenance free:Up to 50,000 static clamping cycles
Lead time:Large inventory in stock
Industrial clamp for 45mm linear guides.Manual rotary handle tightens/releases instantly.Prevents vibration drift and enhances rail rigidity.Ensures precision position locking.Compatible with HIWIN/THK/PMI/WON/Rexroth rails.
Technical Data:
| Clamp types | Manual |
| Linear guide size | 45mm |
| Rated holding force(N) | 2000N |
| Material | Bearing steel with nickel-plated surface coating |
Spacer plate | Available(a spacer plate might have to be ordered as height compensation, depending on the height of the rail carriage) |
| Operating temperature | 0 °~70 °C |
| Applicable guideway brand | HIWIN/THK/PMI/WON/NSK/NB/ABBA and so on |
| 2D and 3D drawing | Available |
Universal 45mm Manual Linear Rail Clamp Key Advantages:
The manual rail clamp is suitable for all common profile rail guides.
The 360° adjustable handle ensures easy operation from any angle,enhancing flexibility even in confined spaces.
Choose between standard or extended handles,adapting to varying workspace constraints and user preferences.
The manual quickLock mechanism ensures a strong,vibration-resistant hold,preventing unwanted movement during operation.
Provides reliable braking force to halt motion,making it ideal for use as a manually operated mechanical end stop or safety block.
Replacement for zimmer and NBK brand HK series manual linear guide clamps.

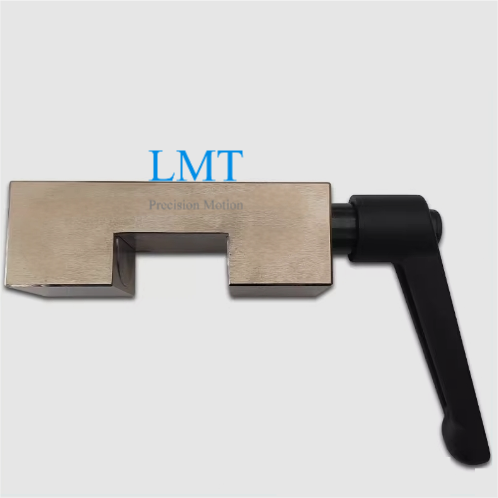

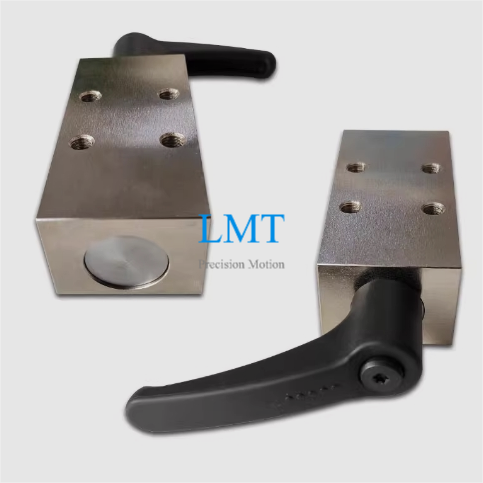

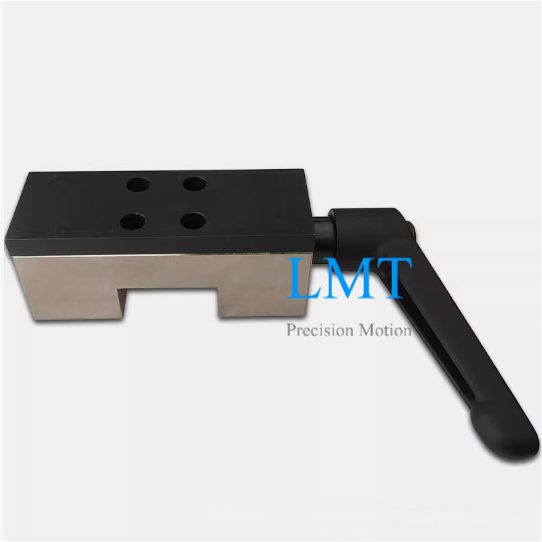

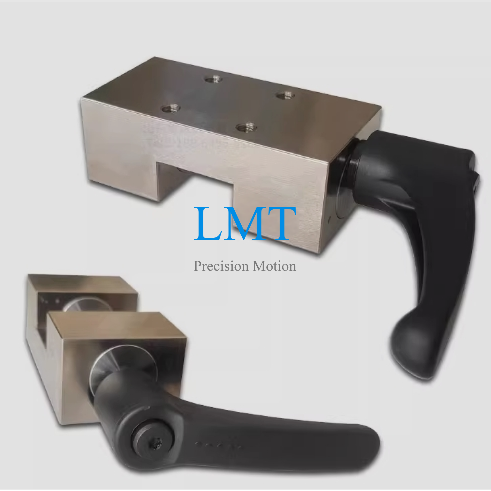

Manual QuickLock Clamp Pictures
