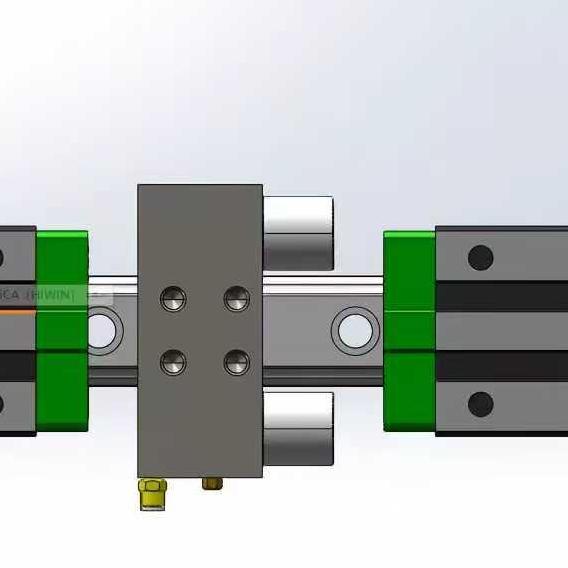

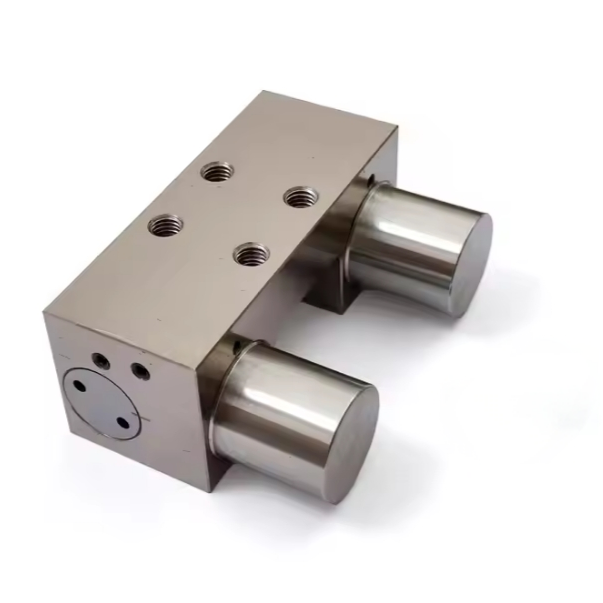

15mm Linear Guide Clamp Limiting Stopper Air-operated Normally Close
This linear rail clamp limiting stopper is designed for 15mm linear guideways.It is air-operated for automated control and features a normally close function,meaning it securely clamps or locks the linear guide rail by default when there is no air supply,ensuring safety and position retention.
Specification:
| Clamp Types | Pneumatic normally close |
| Applicable guideway sizes | 15mm |
| Standard type rated holding force(N) | Standard connection 400N,pressurized connection 1050N |
| Open air pressure | 0.55/0.4/0.3Mpa |
| Clamping service life | 5 million times |
| Material | Bearing steel with nickel-plated surface coating |
Spacer plate | Available(a spacer plate might have to be ordered as height compensation, depending on the height of the rail carriage) |
| Operating temperature | 0 °~70 °C |
| Applicable guideway brand | HIWIN/THK/PMI/WON/NSK/NB/ABBA and so on |
| 2D and 3D drawing | Available |
Linear Guide Clamp Limiting Stopper Key Advantages:
Lead time:Large stock inventory.
Cost-effective: 40% cost savings.
High Durability:Up to 5 million static clamping cycles.
Broad Range of Products:For all common profile rail guides.
Completely replace the Zimmer brand MKS series linear guide clamp.
Customizable Design:Tailored to meet specific application requirements.
Corrosion Resistance:The surface of the clamping Limiting Stopper main body is nickel-plated and has good rust resistance.
Air-operated Normally Close Clamp Video
