Tool-free opening and closing:By turning the clamping lever.
Maintenance free:Up to 50,000 static clamping cycles.
Lead time:Large inventory in stock
This manual linear rail clamp is a cost-effective,direct replacement for the popular HK2001A clamp,designed for 20mm guides.It offers simple,reliable operation for securing sliding tables,precise positioning,and vibration prevention.
Technical Data:
| Clamp types | Manual |
| Linear guide size | 20mm |
| Rated holding force(N) | 1200N |
| Material | Bearing steel with nickel-plated surface coating |
Spacer plate | Available(a spacer plate might have to be ordered as height compensation, depending on the height of the rail carriage) |
| Operating temperature | 0 °~70 °C |
| Applicable guideway brand | HIWIN/THK/PMI/WON/NSK/NB/ABBA and so on |
| 2D and 3D drawing | Available |
20mm Linear Guide Rail Manual Clamp Key Advantages:
The manual clamp is suitable for all common profile rail guides.
The 360° adjustable handle ensures easy operation from any angle,enhancing flexibility even in confined spaces.

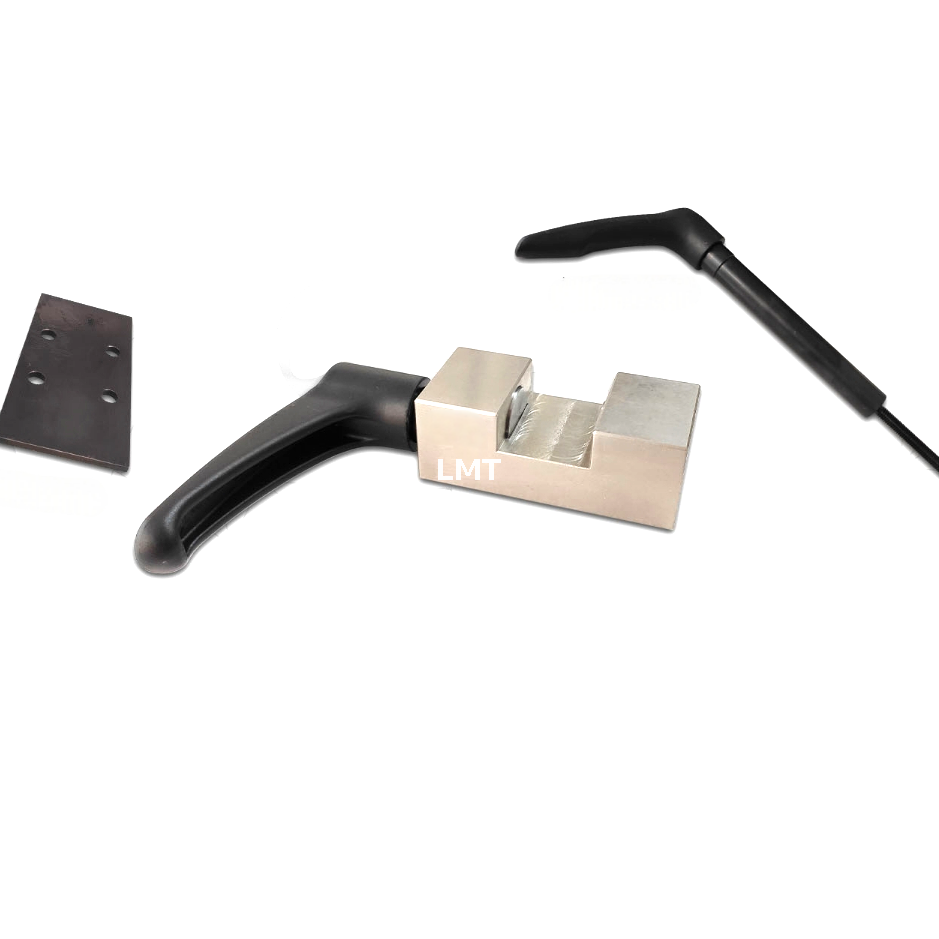

Choose between standard or extended handles,adapting to varying workspace constraints and user preferences.
It excels as a mechanical limited block or brake,holding positions firmly.Its compact design minimizes space requirements,ideal for tight installations.
Simple installation reduces setup time and cost,while robust 2000N clamping force ensures secure holding for demanding applications.

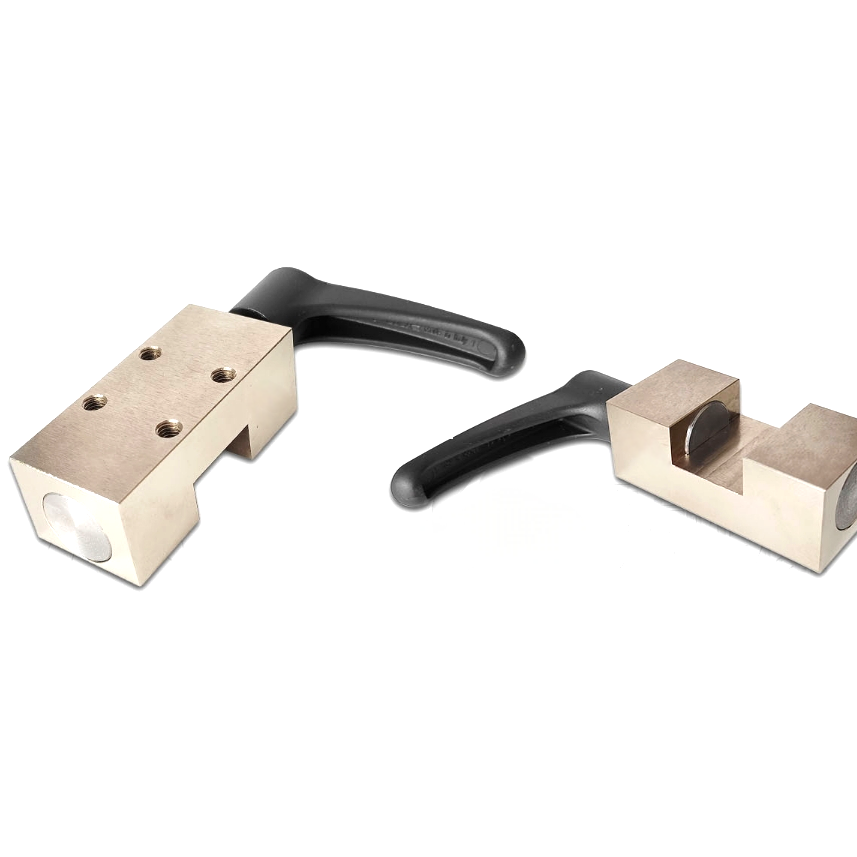

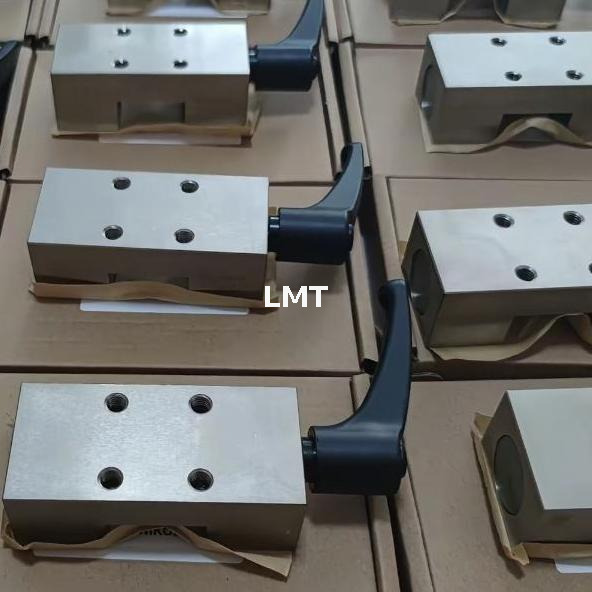

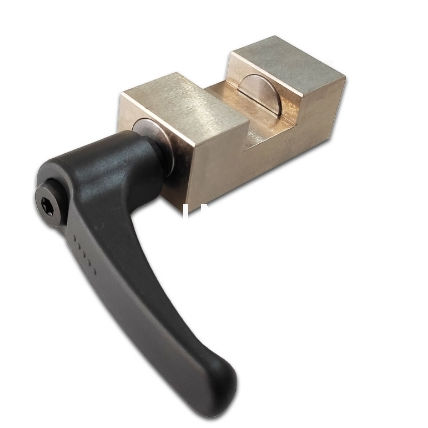

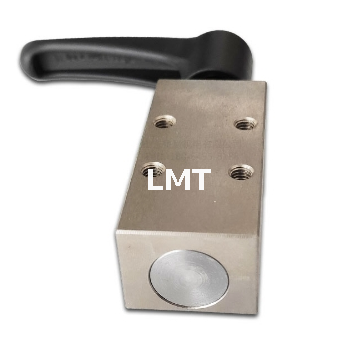

Linear Guide Rail Manual Brake Pictures
