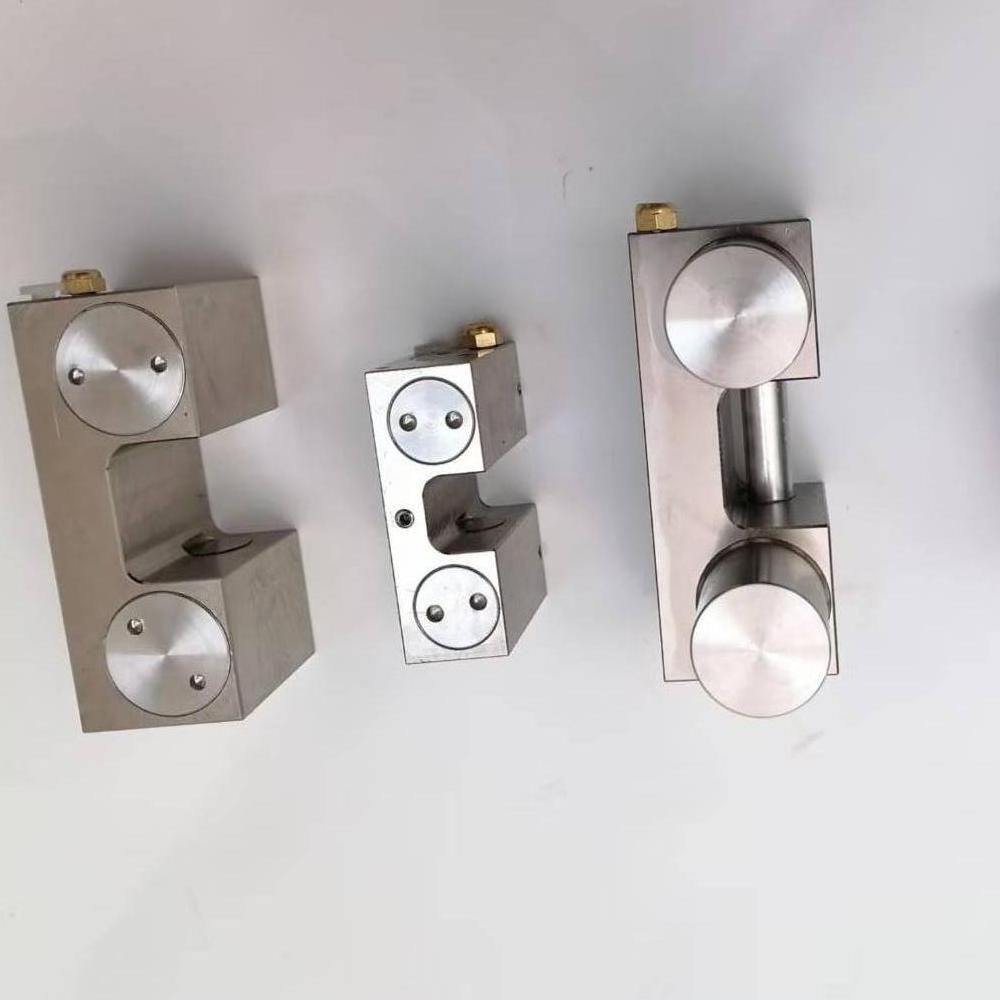

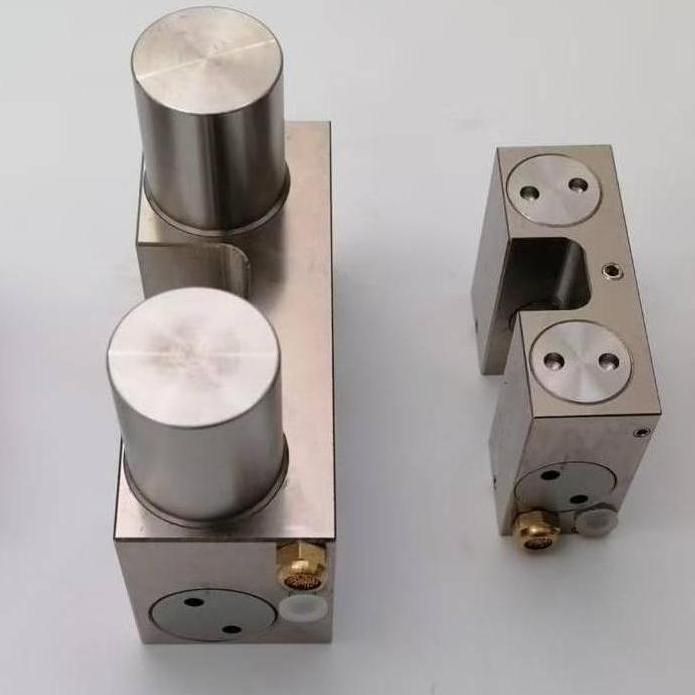

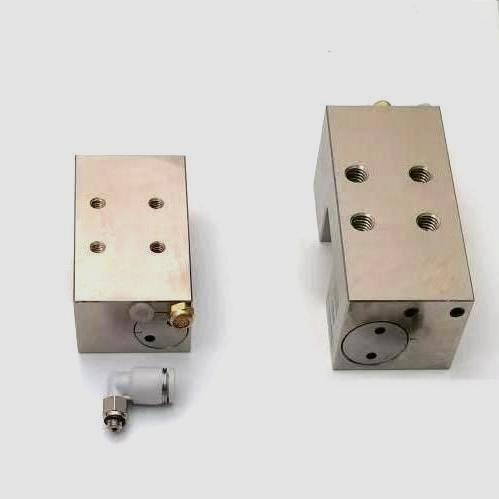

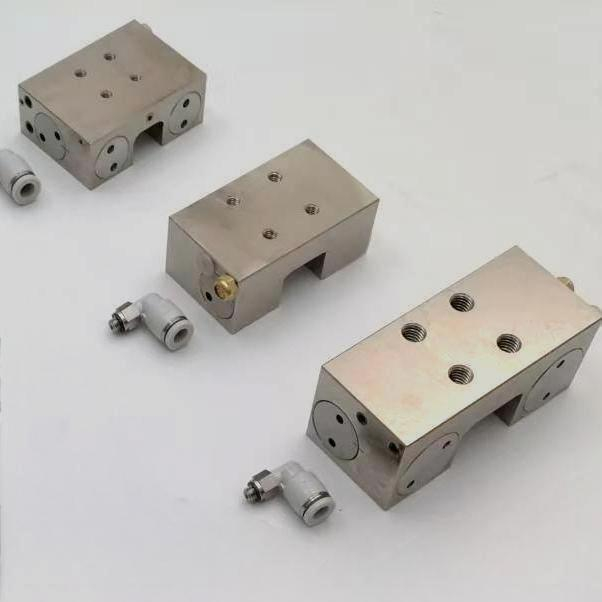

Pneumatic Normally Open Clamp Braking for 20mm Linear Rail
This clamp braking improves linear system rigidity and safety.It remains in the released position without air supply and activates to the clamped position when air is supplied.Designed for compatibility with the majority of 20mm linear guides on the market.
Specifications：
| Clamp types | Pneumatic normally open |
| Applicable guideway sizes | 20mm |
| Rated holding force(N) | 1000N |
| Open air pressure | 0.2~0.6Mpa |
| Clamping service life | 5 million times |
| Material | Bearing steel with nickel-plated surface coating |
Spacer plate | Available(a spacer plate might have to be ordered as height compensation, depending on the height of the rail carriage) |
| Operating temperature | 0 °~70 °C |
| Applicable guideway brand | HIWIN/THK/PMI/WON/NSK/NB/ABBA and so on |
| 2D and 3D drawing | Available |
Why Choose Our Linear Guide Clamp Braking?
Fast delivery within 3 days.
Help you save 35% of the cost.
Direct replacement for Zimmer MK2001A Clamping Element.
High Durability,up to 5 million static clamping cycles.
This rail clamping element is compatible with most linear guide systems available on the market,including major brands such as HIWIN,THK,PMI,WON,NSK,NB,and ABBA.
Product Video
Pneumatic Normally Open Clamp Braking for 20mm Linear Rail
This clamp braking improves linear system rigidity and safety.It remains in the released position without air supply and activates to the clamped position when air is supplied.Designed for compatibility with the majority of 20mm linear guides on the market.
Specifications：
| Clamp types | Pneumatic normally open |
| Applicable guideway sizes | 20mm |
| Rated holding force(N) | 1000N |
| Open air pressure | 0.2~0.6Mpa |
| Clamping service life | 5 million times |
| Material | Bearing steel with nickel-plated surface coating |
Spacer plate | Available(a spacer plate might have to be ordered as height compensation, depending on the height of the rail carriage) |
| Operating temperature | 0 °~70 °C |
| Applicable guideway brand | HIWIN/THK/PMI/WON/NSK/NB/ABBA and so on |
| 2D and 3D drawing | Available |
Why Choose Our Linear Guide Clamp Braking?
Fast delivery within 3 days.
Help you save 35% of the cost.
Direct replacement for Zimmer MK2001A Clamping Element.
High Durability,up to 5 million static clamping cycles.
This rail clamping element is compatible with most linear guide systems available on the market,including major brands such as HIWIN,THK,PMI,WON,NSK,NB,and ABBA.
