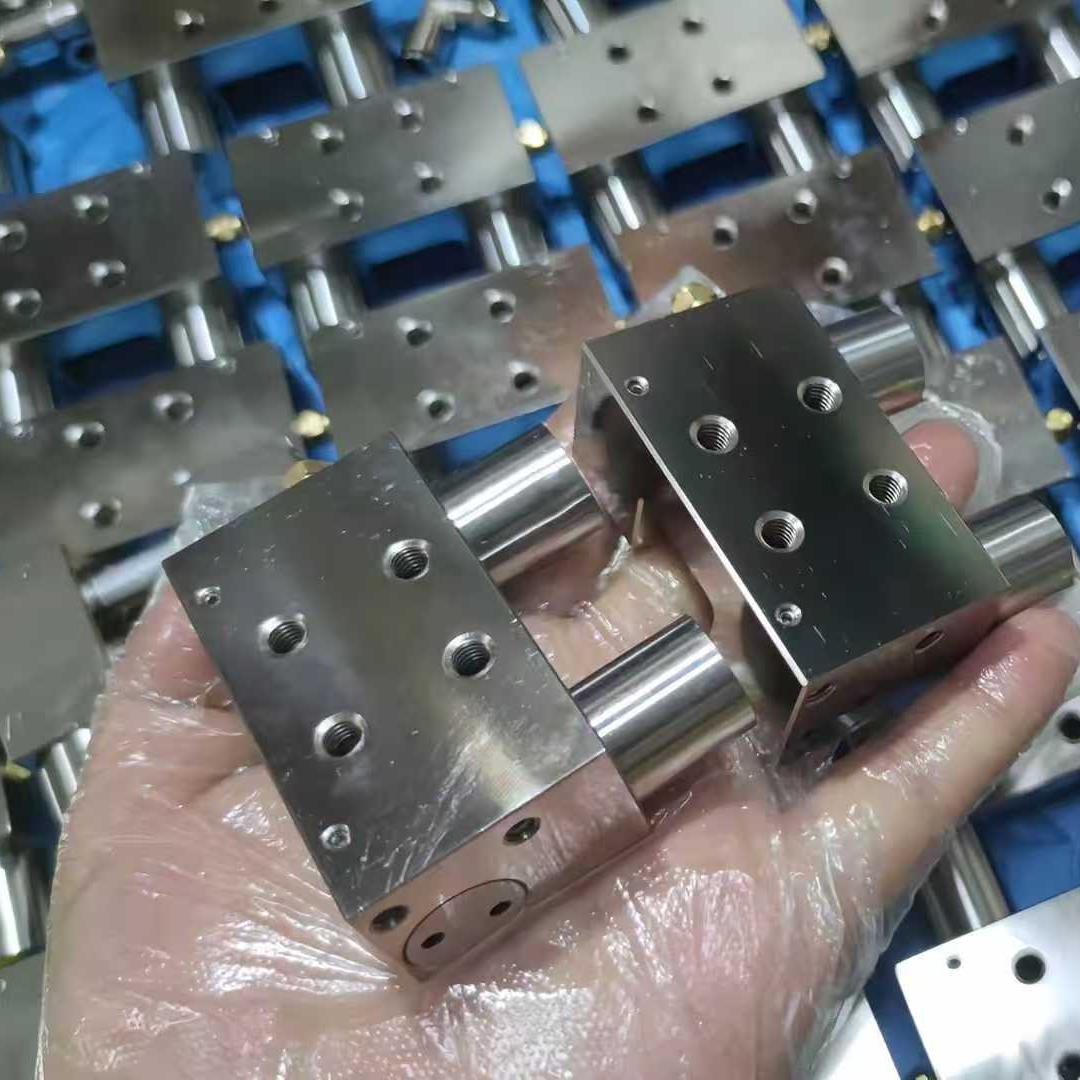

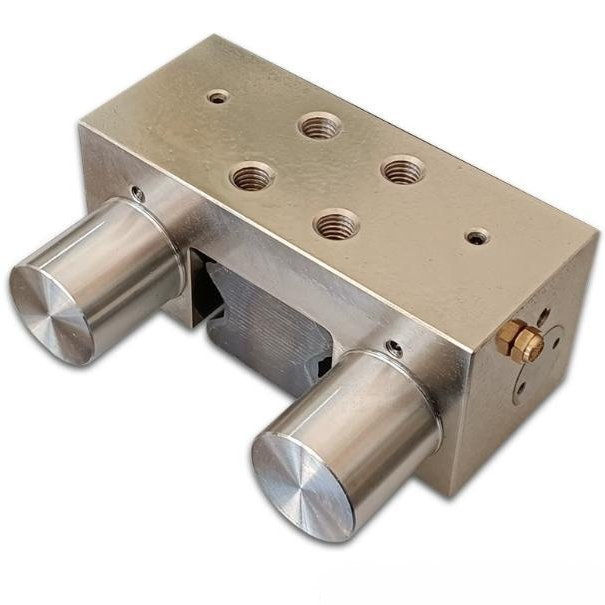

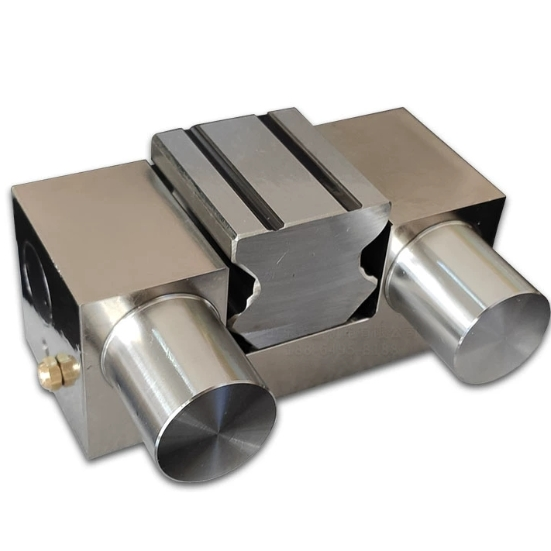

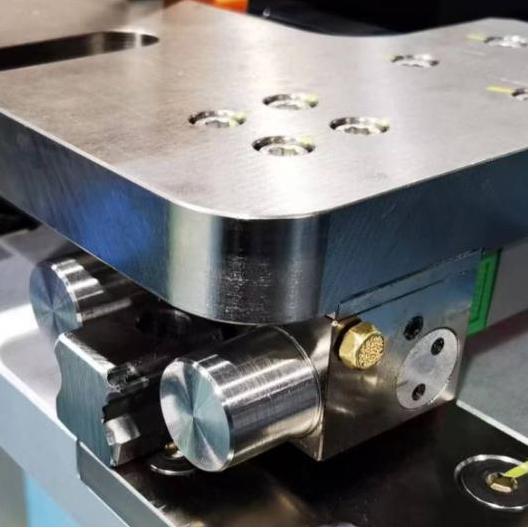

Pneumatic NC Clamping Braking Element for 20mm Linear Rail
This clamping and braking element is in the loosened state when it is vented and in the clamped state when it is not vented.It is suitable for most brands of 20mm linear guide rails on the market.
Specification:
| Clamp Types | Pneumatic normally close |
| Applicable guideway sizes | 20mm |
| Rated holding force(N) | 600/1300N(standard) |
| Open air pressure | 0.55/0.4/0.3Mpa |
| Clamping service life | 5 million times |
| Material | Bearing steel with nickel-plated surface coating |
Spacer plate | Available(a spacer plate might have to be ordered as height compensation, depending on the height of the rail carriage) |
| Operating temperature | 0 °~70 °C |
| Applicable guideway brand | HIWIN/THK/PMI/WON/NSK/NB/ABBA and so on |
| 2D and 3D drawing | Available |
20mm Linear Guide Clamping and Braking Element Key Advantages:
Lead time:Within 3 days.
Cost-effective: 35% cost savings.
High Durability:Up to 5 million static clamping cycles
Broad Range of Products:For all common profile rail guides
Completely replace the Zimmer brand MKS series linear guide clamp.
Customizable Design:Tailored to meet specific application requirements,including force adjustments,mounting configurations,and compatibility with various 20mm rail profiles.
Pneumatic Normally Close(NC) Clamp Braking Video
